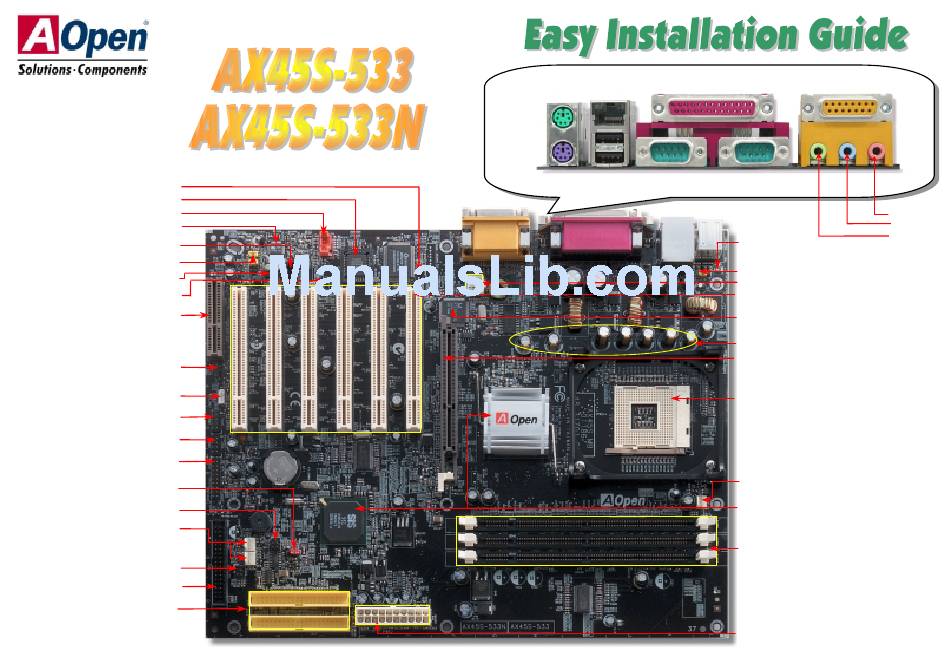

n
Case Open Connector
2Mbit Programmable Flash ROM
MODEM-CN Connector
Realtek ALC201A
CD-IN Connector
Front Audio Connector
SPDIF Connector
Thermal Sensor Connector
CNR Expansion Slot
WOM (Wake on Modem) Connector
WOL (Wake on LAN) Connector
nd
Supports 2
USB Connector
rd
Supports 3
USB Connector
Front Panel Connector
JP14 CMOS Clear Jumper
IrDA Connector
FAN2 & FAN3 Connector
Dr. LED Connector
(Upgrade Optional)
FDD Connector
ATA/66/100/133 IDE Connector x2
RJ45 10/100
LAN Jack
PS/2 Mouse
SPP/EPP/ECP Parallel Port
(AX45S-533N
Connector
only)
PS/2 Keyboard
USB Port
COM 1 Port
Connector
MIDI/Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
JP28 USB/Keyboard Wakeup Select Jumper
4-pin 12V. ATX Power Connector
32-bit PCI Expansion Slot x6
(PCI 6 supports slave mode PCI card only)
Realtek RTL8100BL
(AX45S-533N only)
2200
μ
F Low ESR Capacitors
AGP 4x Expansion Slot
478-pin CPU socket (Willamette/
Northwood) with Voltage and Frequency
®
Auto-detection that supports Intel
®
Pentium
4 1.4~2.4GHz+ CPU
CPU FAN connector
SIS 645DX/961B Chipset
168-pin DIMMx3 supports PC100/133
SDRAM maximum up to 3 GB
ATX Power Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX45S-533 and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX45S-533

Summary of Contents for AOpen AX45S-533

  • Page 1 RJ45 10/100 LAN Jack PS/2 Mouse SPP/EPP/ECP Parallel Port MIDI/Game Port (AX45S-533N Connector only) PS/2 Keyboard USB Port COM 1 Port COM 2 Port Case Open Connector Connector 2Mbit Programmable Flash ROM MODEM-CN Connector MIC-In Realtek ALC201A Line-In Speaker Out Resettable Fuse CD-IN Connector Front Audio Connector...

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected.

  • Page 4: Connecting Ide And Floppy Cables

    8. Connecting IDE and Floppy Cables 6. Connecting ATX Power Connector Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and This motherboard comes with a 20-pin ATX power connector and an extra 4-pin connector IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system as shown below.

  • Page 5: Front Audio Connector

    10. Front Audio Connector 12. Support Six USB Connectors If the housing has been designed with an audio port on the front panel, you’ll be able to This motherboard provides six connectors to connect USB devices, such as mouse, connect onboard audio to front panel through this connector. By the way, please remove keyboard, modem, printer, etc.

  • Page 6: Bios Upgrade

    15. AOpen Bonus Pack CD 17. BIOS Upgrade AOpen Easy Flash is more user-friendly than traditional flash method. The BIOS binary You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select file and flash routine are combined together and you simply run a single file to complete model name.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX45S-533 is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
