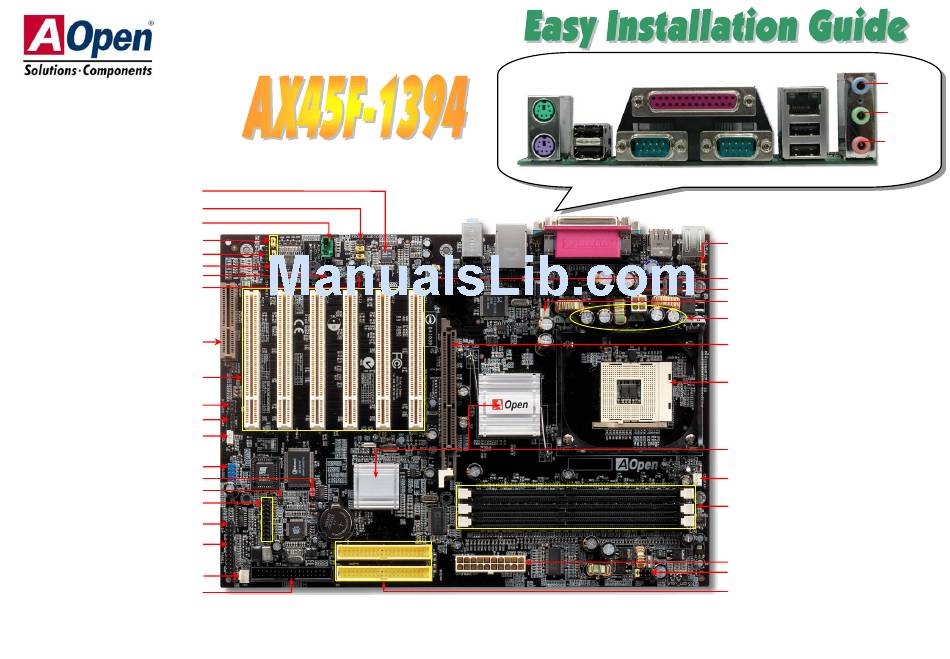

ALC650 AC'97 CODEC
Front Audio Connector
AUX-IN Connector
JP15/16 Dr. Voice Language Jumper
Game Port Connector
JP2 Speaker output Jumper
CD-IN Connector
S/PDIF Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
Dr. LED Connector
WOM Connector
WOL Connector
USB 2.0 Connector
JP14 CMOS Clear Jumper
Case Open Connector
IEEE 1394 Connectorx2
IrDA Connector
Front Panel Connector
SYS-FAN3 Connector
FDD Connector
AOpen reserves the right to revise all the specifications and information contained in this document
which is subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100
LAN Jack
Line-In
Speaker Out
MIC-In
COM 2 Port
USB Ports
JP28 KB/Mouse Wakeup Jumper
JP27 USB/LAN Wakeup Jumper
4-pin 12V. ATX Power Connector
SYS-FAN2 Connector
3300μF Low ESR Capacitors
AGP 8x Expansion Slot
478-pin CPU socket (Willamette/Northwood) with
Voltage
and
Frequency
Auto-detection
®
®
supports Intel
Pentium
4 1.6GHz~3.06GHz
®
(Supports Intel
Hyper-Threading Technology)
SIS 648FX/963 Chipset
CPU FAN Connector
184-pin DIMMx3 supports
DDR266/333/400 RAM
maximum up to 3GB
ATX Power Connector
JP29 DDR Voltage Jumper
ATA 66/100/133 IDE Connector x2
that

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX45F-1394 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOpen AX45F-1394

Summary of Contents for AOpen AX45F-1394

  • Page 1 Front Panel Connector ATX Power Connector JP29 DDR Voltage Jumper SYS-FAN3 Connector FDD Connector ATA 66/100/133 IDE Connector x2 AOpen reserves the right to revise all the specifications and information contained in this document which is subject to change without notice.
  • Page 2 1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected and you don’t need to set the voltage by yourself.

  • Page 4: S/Pdif Connector

    6. Support Six USB Ports 8. S/PDIF Connector This motherboard provides six 2.0 ports to connect USB devices such as mouse, S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides keyboard, modem, printer, etc. There are four connectors on the back panel. You can use impressive quality through optical fiber and allows you to enjoy digital audio instead of proper cables to connect USB devices from back panel or connect USB 2.0 header to the analog.

  • Page 5: Ieee 1394 Connectors

    12. AGP 8X Expansion Slot 10. IEEE 1394 Connectors This model provides an 8x slot which is the latest AGP specification. The AGP 8x calls for This motherboard has two IEEE 1394 connectors onboard. The IEEE 1394 provides data the bus to operate at the basic AGP 66-MHz clock frequency and the bandwidth are transfer rate up to 400Mb/s.

  • Page 6: Bios Upgrade Under Windows Environment

    After selecting the model name, you can install its AGP, IDE, Audio, LAN upgrading. and USB2.0 drivers from this CD. Download the new version of BIOS package file from AOpen official web site. (ex: http://www.aopen.com) Unzip the download BIOS package (ex: WAX45F1394-102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX45F-1394 is model name of motherboard; R1.00 is BIOS version...
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. Dear Customer, http://download.aopen.com.tw/downloads Thanks for choosing AOpen products.
