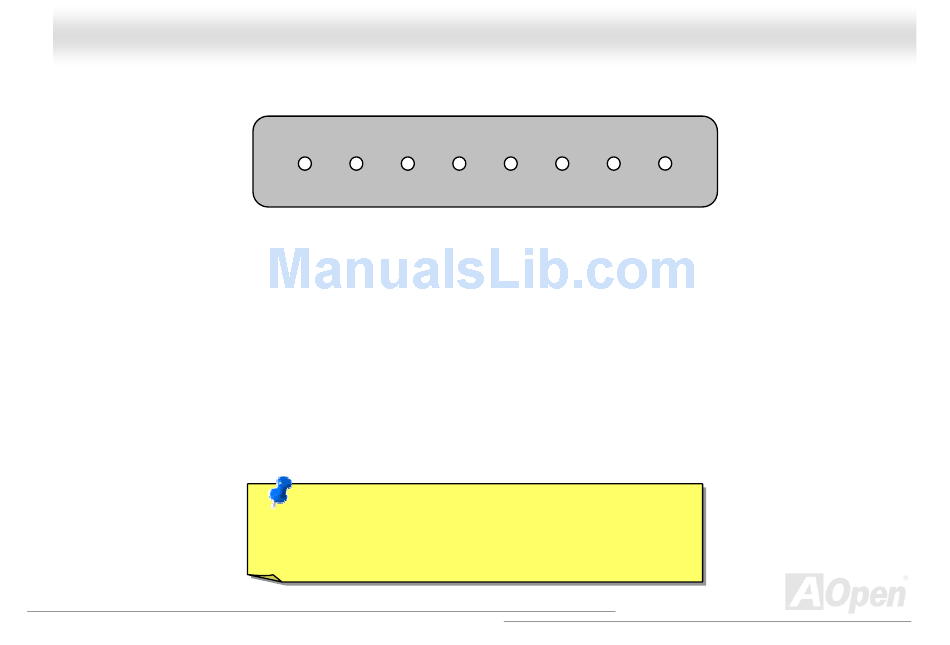

Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive, so that it
c
an be mount into normal 5.25 in drive bay of any housing.
The total 8 LEDs light up alternatively if the system fails in one of eight stages. Once
system has completed its boot-up procedure.
The 8 LEDs indicate the following messages when lit:
LED 0 - Indicates that the CPU may have been installed incorrectly or is damaged.
LED 1 - Indicates that the memory may have been installed incorrectly or is damaged.
LED 2 - Indicates that the AGP may have been installed incorrectly or is damaged.
L
ED 3 - Indicates that the PCI card may
LED 4 - Indicates that the floppy disk drive may have been installed incorrectly or is damaged.
L
ED 5 - Indicates that the HDD may
L
ED 6 - Indicates that the keyboard
L
ED 7 - Indicates that the system is
7
6
5
4
Floppy
Boot O.K.
KB
H
DD
have been installed incorrectly or is damaged.
have been installed incorrectly or is damaged.
may have been installed incorrectly or is damaged.
OK.
Note:
During POST (Power On Self Test) procedure, the Debug
LED will light on sequentially from LED0 to LED7 until the system
boot O.K
3
2
1
PCI
Video
Memory
the LED7 (latest LED) is lit, this indicates that the
