This motherboard comes with an ALC650 Codec which supports high quality of 5.1 Channel audio effect, bringing you a brand new
audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output
without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an

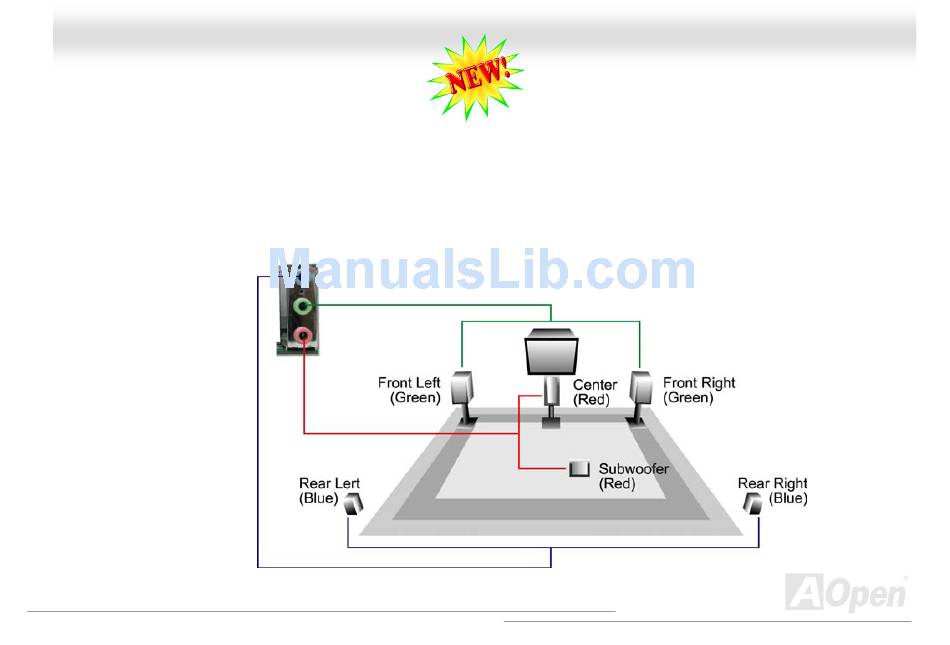

audio application supporting 5.1 Channel. Picture below represents the standard location of all speakers in 5.1 Channel sound track.
Please connect the plug of your front speakers to the green "Speaker out" port, rear speakers' plug to the blue "Line in" port and both of
the center and subwoofer speakers to the red "MIC in" port.
