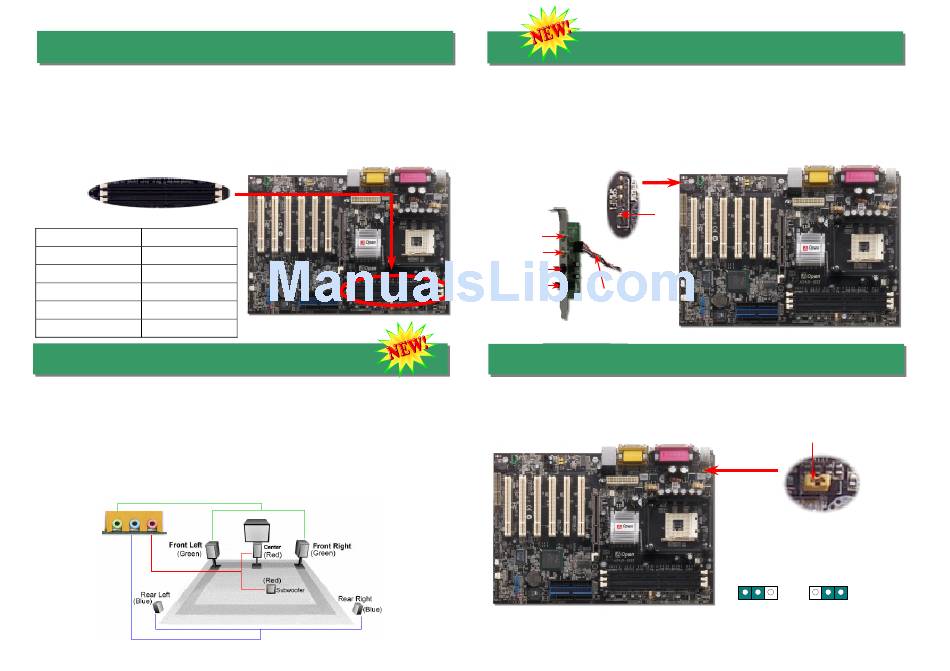

6. Installing Memory Modules

Although Intel claims that 845E Chipsets only support two DIMM sockets (four banks), we
overcome this obstacle with special circuit design in order to provide better adaptability for
different combinations of various RAM modules. On this motherboard, DIMM1 occupies the
st nd
1 and 2 banks; both DIMM2 and DIMM3 are designed to share the 3
Thus, maximally you can insert one double side RAM module on DIMM2 or DIMM3, or insert
one single side module on both DIMM2 and DIMM3 the most. After our testing and verifying,
the following configurations are approved to be running properly.
DIMM1
DIMM2
DIMM3
(DIMM2 and DIMM3 share 2 banks maximally)
DIMM2 DIMM3
Double Side X
X Double Side
Single Side X
X Single Side
Single Side Single Side

7. Super 5.1 Channel Audio Effect

This motherboard comes with an ALC650 CODEC which supports high quality of 5.1 Channel audio
effect, bringing you a brand new audio experience. On the strength of the innovative design of
ALC650, you're able to use standard line-jacks for surround audio output without connecting any
external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as
well as an audio application supporting 5.1 Channel. Picture bellow represents the standard location
of all speakers in 5.1 Channel sound track. Please connect the plug of your front speakers to the
green "Speaker out" port, rear speakers' plug to the blue "Line in" port and both of the center and
subwoofer speakers to the red "MIC in" port.
S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides
impressive quality through optical fiber and allows you to enjoy digital audio instead of
analog. Normally there are two S/PDIF outputs as shown, one for RCA connector, the
rd th
and 4 banks.
most common one used for consumer audio products, and the other for optical connector
with a even better audio quality. Through a specific audio cable, you can connect the
S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output. However, you
must have a S/PDIF supported speaker with S/PDIF digital input to make the most of this
function.
S/PDIF OUT (RCA)
S/PDIF IN (RCA)
S/PDIF OUT (Optical)
S/PDIF IN (Optical)
S/PDIF Module
(User Upgrade Optional)

9. JP28 Keyboard/Mouse Wakeup Select Jumper

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to
enable or disable this function, which could resume your system from suspend mode with
keyboard or mouse. The factory default setting is set to "Disable"(1-2), and you may
enable this function by setting the jumper to 2-3.

8. S/PDIF Connector

Pin1
S/PDIF Cable
1
Disable
(Default)
Pin1
JP28
KB/Mouse Wake-up
1
Enable
