Summary of Contents for Electrolux EOB 6710

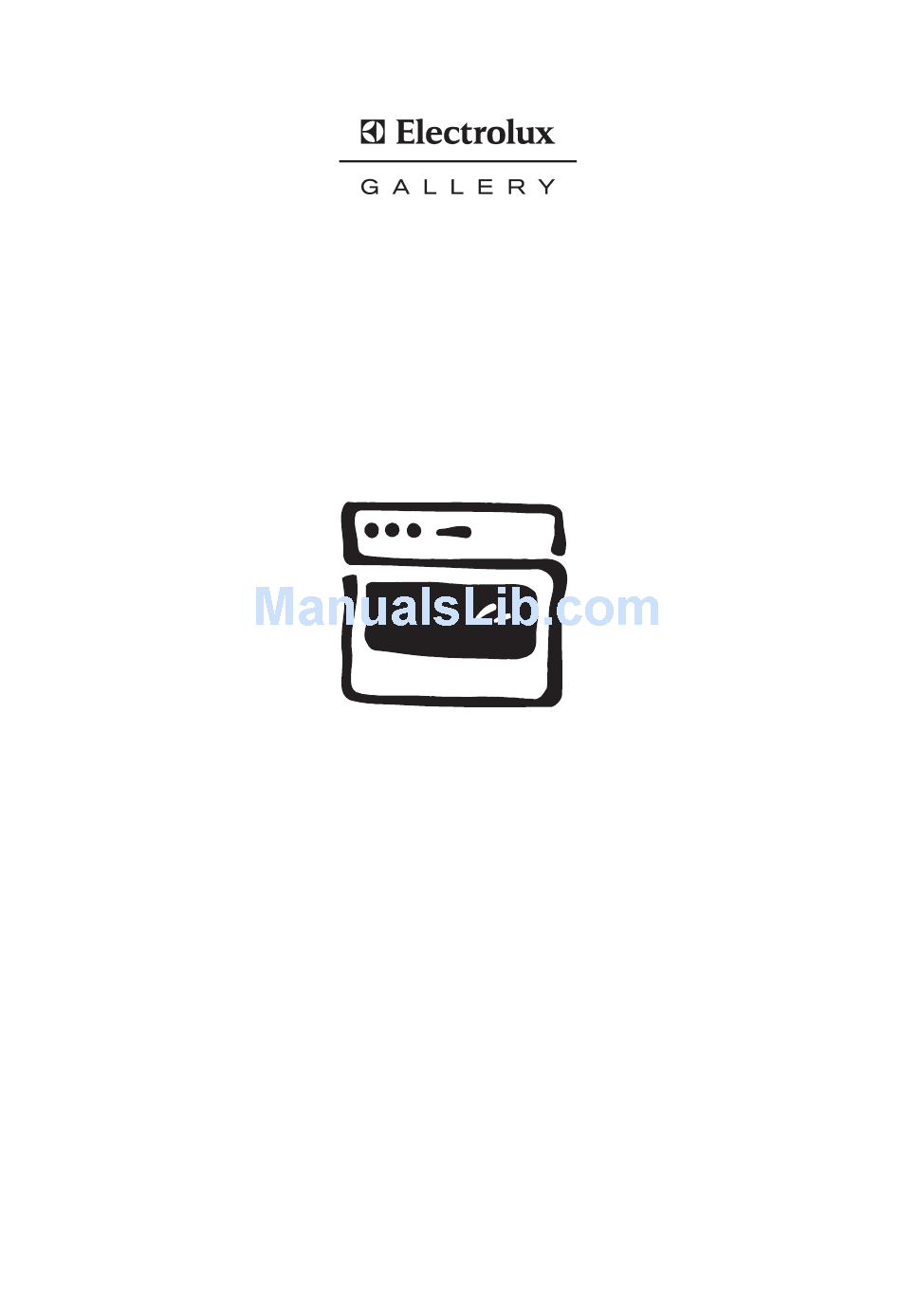

- Page 1 Electric built-in oven INSTR INSTR UCTION BOOKLET UCTION BOOKLET INSTR INSTR INSTR UCTION BOOKLET UCTION BOOKLET UCTION BOOKLET Model EOB 6710 35690-4301...
-
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings. These warnings are provided in the interest of safety. -
Page 3: Table Of Contents
Contents For the User For the Installer Important Safety Information Installation Description of the Oven Technical Data Controls Electrical Connection Before the First Use Building In Using the Oven Hints and Tips The Fan Oven Cooking Chart - Fan Oven Grilling Defrosting Cleaning the Oven... -
Page 4: Description Of The Oven
Description of the Oven 1. Control panel 6. Thermostat Control Light 2. Oven Control Function Knob 7. Grill 3. End of cooking Programmer 8. Oven Light 4. Thermostat Control Knob 9. Oven Fan 5. Mains on Light 10.Rating Plate Oven accessories Grill/roasting pan Anti-tip shelf (x 2) Grill trivet... -
Page 5: Controls
Controls Oven Function Control Knob The oven is off Oven light - The oven light will be on without any cooking function Inner grill element only - Can be used for grilling small quantities Full Grill - The full grill element will be on. Recommended for large quantities. -
Page 6: The Safety Thermostat
The Safety Thermostat This oven is provided with a safety thermostat. In case of malfunctioning of the main thermostat, and consequential over-heating, the safety device will stop the power supply to the appliance. If this happens, call your local Service Force Centre. -
Page 7: Using The Oven
Using the Oven Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open. The oven has four shelf levels, and is supplied with two shelves. -
Page 8: The Fan Oven
The Fan Oven The air inside the oven is heated by the element around the fan situated behind the back panel. The fan circulates hot air to maintain an even temperature inside the oven. The advantage of cooking with this function is energy saving through: Faster Preheating "... -
Page 9: Cooking Chart- Fan Oven
Cooking Chart- Fan Oven This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your individual requirements. Only experience will enable you to determine the correct setting for your personal requirements. We recommend to pre-heat the oven for about 10 minutes before cooking. -
Page 10: Grilling
Grilling Hints and Tips Grilling must be carried out with the oven door closed. Most foods should be placed on the grid in the grill The grill pan handles must be removed from pan to allow maximum circulation of air and to lift the the pan during grilling. -
Page 11: Defrosting
! ! ! ! ! How to Use the Thermal Grill Hints and Tips Thermal grilling offers an alternative method of cooking Prepare foods in the same way as for conventional grilling. food items normally associated with conventional grilling. Brush lean meats and fish lightly with a little oil or butter The grill element and the oven fan operate alternately, to keep them moist during cooking. -
Page 12: Cleaning The Oven
Cleaning the Oven Before cleaning always allow the cooling fan to cool the oven down before switching off at the electricity supply. This appliance cannot be cleaned with steam or with a steam cleaning machine. The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan. -
Page 13: Cleaning The Oven Door
Cleaning The Oven Door The oven door is made up of two glasses. It is possible to remove the inner glass for easier cleaning. Warning - The oven door may bang shut if you try to extract the inner glass when the oven door is still fitted to the oven. -
Page 14: Oven Shelves And Shelf Supports
Clean the oven door glass with warm water and a softh cloth only. Never use harsh abrasives as they could damage the special heat-resistant surface of the inner glasses. Once the cleaning is carried out, refit the oven door, following the procedure in reverse. The inner glass is a special glass that has been treated to resist heat. -
Page 15: Replacing The Oven Light
Replacing the Oven Light Disconnect the appliance from the power supply. If the oven bulb needs replacing, it must comply with the following specifications: Wattage power: 27 W, Voltage: 240 V (50 Hz), Resistant to temperatures of 300°C, Connection type: E14. These bulbs are available from your local Service Force Centre. -
Page 16: Installation
Installation The oven must be installed according to the This oven must be installed according to instructions supplied. standards and regulation currently in force. Technical Data Heating elements rating Top element 870 W Dimensions of recess Convection element 2,18 W Height undertop: 593 mm;... -
Page 17: Building In
Building In Please ensure that when the oven is installed it is easily accessible for the engineer in the event of a breakdown. Building In The surround or cabinet into which the oven will be built must comply with these specifications: the dimensions must be as shown in the relevant "... - Page 18 (d)‘you’ means the purchaser of the Appliance not having this document; purchased the appliance for re-sale, and ‘your’ has a (b) Electrolux shall not be liable for any loss or damage whether corresponding meaning. direct or indirect or consequential arising from your purchase, 2.
- Page 19 EOB6710 0,79 kWh 0,78 kWh 53,0 43 min. 41 min. 1130 cm²...
- Page 20 The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
