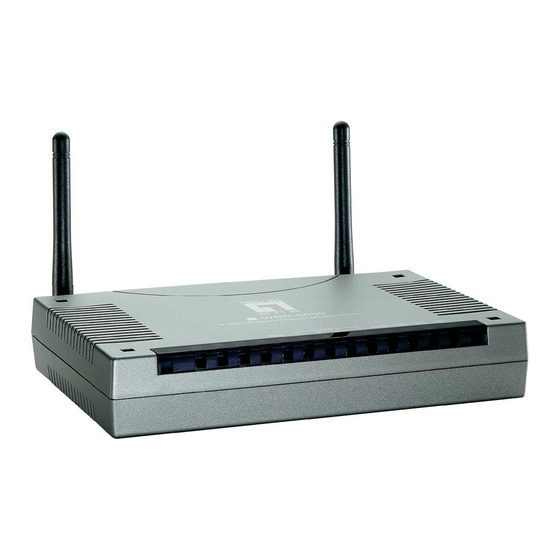

N_Max Wireless ADSL2+ Modem Router
V1.0 – 0811

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBR-6600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LevelOne WBR-6600

Summary of Contents for LevelOne WBR-6600

  • Page 1: User Manual

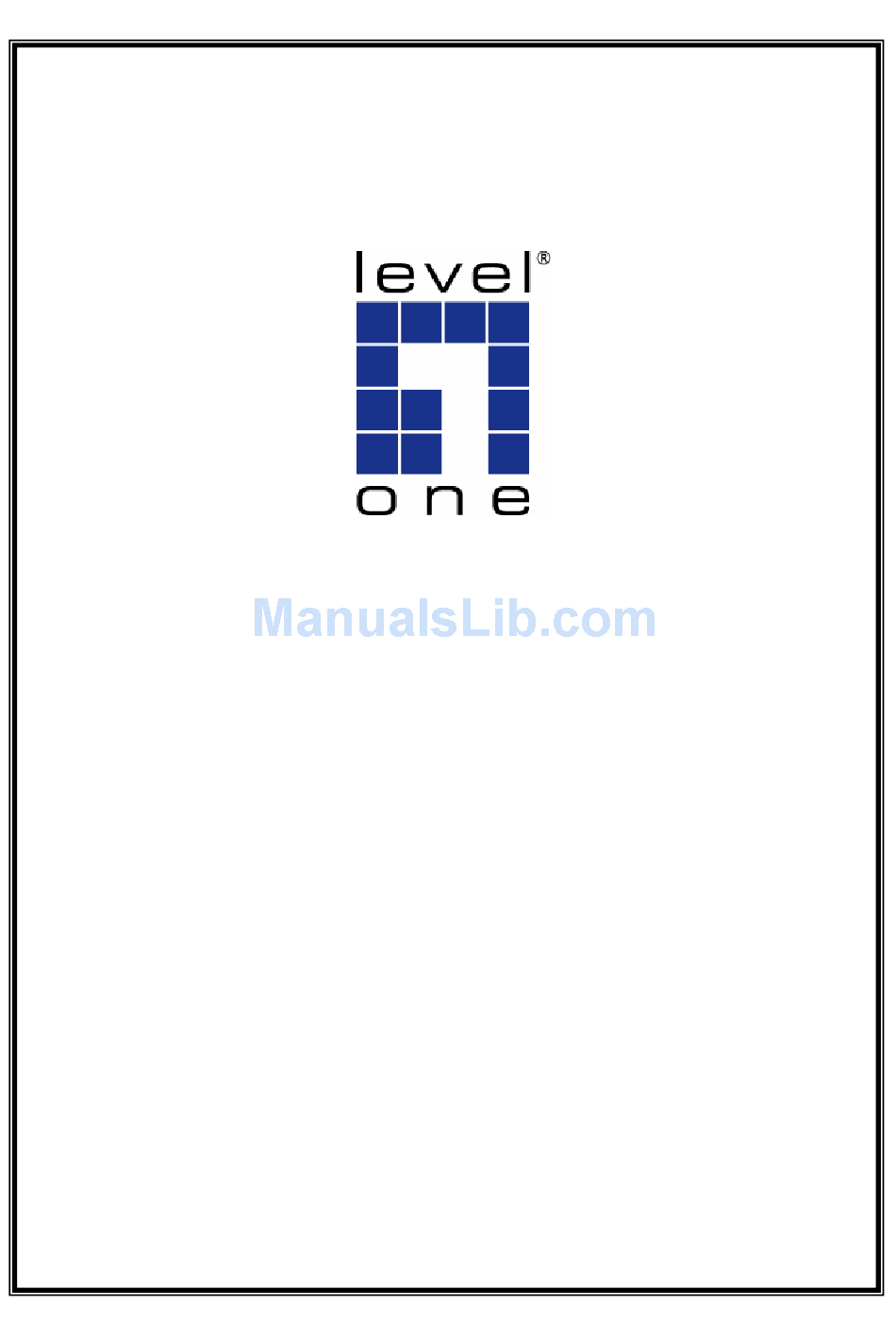

    LevelOne User Manual WBR-6600 N_Max Wireless ADSL2+ Modem Router V1.0 – 0811...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ............................. 2 CHAPTER 1 - INTRODUCTION ........................6 Introducing the WBR-6600 ........................6 Features ..............................8 Installation Diagram of the WBR-6600 ....................12 CHAPTER 2 - PRODUCT OVERVIEW ......................13 Standards-Based Technology ......................... 13 Installation Considerations ........................13 Package Contents ...........................
  • Page 3 CHAPTER 5 – ADVANCE CONFIGURATION ....................39 Status Page ............................. 40 ADSL Status ........................... 42 Operational Mode ........................... 43 ARP Table............................44 DHCP Table ............................ 45 System Log ............................ 46 Firewall Log ............................ 47 UPnP Portmap ..........................48 Quick Start ............................... 49 ADSL ..............................
  • Page 4 Restart Router ............................92 User Management ..........................93 Mail Alert ..............................94 Firewall ..............................95 Packet Filter ........................... 97 MAC Filter ............................99 Block WAN PING ......................... 102 URL Filter ............................. 103 QoS (Quality of Service) ........................106 Virtual Server ............................112 Port Mapping ..........................

  • Page 5: Default Settings

    Default Settings IP Address 192.168.0.1 Admin / Password admin / password Wireless Mode Enable SSID WBR-6600 Security None...

  • Page 6: Chapter 1 - Introduction

    Chapter 1 - Introduction Introducing the WBR-6600 Thank you for purchasing the WBR-6600 Router. Your new router is an all-in-one unit that combines an ADSL modem, ADSL2/2+ router and Ethernet network switch to provide everything you need to get the machines on your network connected to the Internet over an ADSL broadband connection.
  • Page 7 The Integrated DHCP (Dynamic Host Control Protocol) client and server services allow multiple users to get IP addresses automatically when the router boots up. Simply set local machines as a DHCP client to accept a dynamically assigned IP address from the DHCP server and reboot.

  • Page 8: Features

    Ethernet cables. EWAN Besides using ADSL to get connected to the Internet, WBR-6600 offers its Ethernet port 1 as a WAN port to be used to connect to Cable Modems, VDSL, fiber optic lines and PON.
  • Page 9 Multi-Protocol to Establish a Connection The router supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) to establish a connection with an ISP. The router also supports VC-based and LLC-based multiplexing. Universal Plug and Play (UPnP) and UPnP NAT Traversal This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from many different vendors, and it makes setting up a network simple and...
  • Page 10 PPP over Ethernet (PPPoE) The WBR-6600 provides an embedded PPPoE client function to establish a connection. You get greater access speed without changing the operation concept, while sharing the same ISP account and paying for one access account. No PPPoE client software is required for the local computer.
  • Page 11 Web-based GUI A web-based GUI offers easy configuration and management. It also supports remote management capability for remote users to configure and manage this product. Firmware Upgradeable You can upgrade the router with the latest firmware through its web-based GUI.

  • Page 12: Installation Diagram Of The Wbr-6600

    Installation Diagram of the WBR-6600...

  • Page 13: Chapter 2 - Product Overview

    Keep the number of walls and ceilings between the WBR-6600 and other network devices to a minimum - each wall or ceiling can reduce your WBR-6600 wireless product‟s range from 3-90 feet (1-30 meters.)

  • Page 14: Package Contents

    Do not use the same power source for the WBR-6600 as other equipment.  Do not open or repair the case yourself. If the WBR-6600 is too hot, turn off the power immediately and have it repaired at a qualified service center.

  • Page 15: The Front Leds - Wbr-6600

    The Front LEDs - WBR-6600 Meaning When the power is plugged in, it will light Red and when the system is Power: ready, it will remain Green. Whilst the system is rebooting or firmware upgrading, the LED light flashes. Lights when connected to an Ethernet device.

  • Page 16: The Rear Ports - Wbr-6600

    The Rear Ports - WBR-6600 Port Description Power Connect the supplied power adapter to this jack. After the router is powered on, press this reset button using the end of paper clip or other small pointed object to reset the router and to restore it to factory default settings.
  • Page 17 The detail instruction in Reset Button Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash): Hold the Reset Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Reset Button. The modem's emergency-reflash web interface will then be accessible via http://192.168.0.1 where you can upload a firmware image to restore the modem to a functional state.

  • Page 18: Antenna Position Placement

    Antenna Position Placement To get the best quality wireless reception out of your router, the antennas should be positioned at 45 degree angles, like the following image, to minimize the wireless interference caused between the antennas. Cabling One of the most common causes of problems is because of bad cabling or ADSL line(s). Make sure that all connected devices are turned on.

  • Page 19: Chapter 3 - Installation

    Chapter 3 - Installation You can configure the WBR-6600 router through the convenient and user-friendly interface of a web browser. Most popular operating systems such as Linux, MAC OS and Windows 98/NT/2000/XP/Vista include a web browser as a standard application.
  • Page 20 Configuring a PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
  • Page 21 Configuring a PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.
  • Page 22 Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP, or the name of your Network Interface Card (NIC) in your 3.
  • Page 23 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 24: Factory Default Settings

    Factory Default Settings Before configuring the WBR-6600 router, you need to know the following default settings. Web Interface: (Username and Password) Username: admin Password: password The default username and password are “admin” and “password” respectively. Attention: If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds then release it to restore the factory default settings.

  • Page 25: Lan And Wan Port Addresses

    LAN and WAN Port Addresses The parameters of LAN and WAN ports are preset at the factory. The default values are shown below. LAN Port WAN Port The PPPoE function is enabled IP address 192.168.0.1 to automatically get the WAN Subnet Mask 255.255.255.0 port configuration from the ISP,...

  • Page 26: Configuring With Your Wbr-6600

    Configuring with your WBR-6600 Note: 1. To configure this device, you must have Internet Explorer 5.0 / Netscape 4.5 or above installed 2. You may configure the router for Internet access in two ways: (A) Easy Sign On (B) Web Configuration...
  • Page 27 2. Choose “Auto” or “Manually” to scan ADSL settings. Note: If automatic detection does not work, please ask your ISP and enter the Protocol, VPI and VCI manually. 3. The Auto scan result is displayed. Please note this may vary depending on your local operator settings.
  • Page 28 5. Internet Settings are Complete. Now proceed to wireless network settings. 6. LevelOne recommends WPA2 for maximum security. The shared key is the passkey to your wireless network. It can be numbers or letters and needs to be at least 8 characters.
  • Page 29 Open your web browser, enter the IP address of your router, which by default is 192.168.0.1, and press the “Enter” key, a user name and password window prompt appears. The default username and password are “admin” and “password”. Congratulations! You have successfully logged on to your WBR-6600 Modem Router!

  • Page 30: Chapter 4 - Basic Configuration

    Chapter 4 – Basic Configuration Once you have logged on to your WBR-6600 Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include: ...

  • Page 31: Status Page

    Status Page This page shows you the current status of the WBR-6600. Device Information  Model Name: The model name of the device.  System Up-Time: Records system up-time.  Hardware Version: Device version  Software Version: Firmware version Port Status ...

  • Page 32: Quick Start

    Quick Start This wizard is similar to Easy Sign On, and will guide you through setting up your WBR-6600. Click Continue to start the wizard. The steps are the same as the Easy Sign On.

  • Page 33: Set Wireless Configuration

    Set Wireless Configuration  WLAN Service: Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For security purpose, change to a unique ID name to the AP which is already built-in to the router‟s wireless interface.

  • Page 34: Wan

    Here you can manually enter the ADSL settings provided by your Service Provider. Use this if the Easy Sign On, or Quick Start cannot successfully auto-detect your ADSL settings.  Main Port: To switch between ADSL and EWAN for WAN port function. ...

  • Page 35: Wlan

    WLAN  WLAN Service: Enable or Disable Wireless function. Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change to a unique ID name to the AP which is already built-in to the router‟s wireless interface.

  • Page 36: Wireless Security Parameters

    Wireless Security Parameters WPA Pre-Shared Key  WPA Shared Key: The key for network authentication The input format is in character style and the key size should be in the range between 8 and 63 characters.  Group Key Renewal: The period of renewal time for changing the security key between wireless client and Access Point (AP).

  • Page 37: Wpa/Wpa2 Pre-Shared Key

    WPA/WPA2 Pre-Shared Key In this mode, the router will accept both WPA and WPA2 wireless clients  WPA Shared Key: The key for network authentication The input format is in character style and key size should be in the range between 8 and 63 characters. ...

  • Page 38: Wep

     WEP Authentication: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers secure data encryption, known as WEP. If you require high security for transmissions, there are three options to select from: Open System, Share key or Both. ...

  • Page 39: Chapter 5 - Advance Configuration

    Chapter 5 – Advance Configuration Once you have logged on to your WBR-6600 Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include: ...

  • Page 40: Status Page

    Status Page This page shows you the current status of the WBR-6600, with advanced options such as Host Name and Time settings. Device Information  Model Name: The model name of the device.  Host Name: Provide a name for the router for identification purposes. Host Name lets you change the router name.
  • Page 41 Port Status  Port Status: User can look up to see if they are connected to Ethernet, ADSL, EWAN or Wireless.  Port: Name of the WAN connection.  Protocol VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier  Operation: Current available operation. ...

  • Page 42: Adsl Status

    ADSL Status This page shows you the current status of the WBR-6600‟s ADSL connection.  DSP Firmware Version: DSP code version  DMT Status: Current DMT Status  Operational Mode: To show the state when user select “AUTO” on connect mode.

  • Page 43: Operational Mode

    Operational Mode ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M” and “Annex J” that user can select for this connection. Modulator: There are seven modes “AUTO”,”ADSL Multimode”,”ADSL2”, ”ADSL2+”,”G.Lite”, “T1.413” and “G.DMT” that user can select for this connection.

  • Page 44: Arp Table

    ARP Table This section displays the router‟s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs to use with the router‟s Firewall –...

  • Page 45: Dhcp Table

    DHCP Table This page shows you the network clients (Notebooks or PCs) that are allocated IP Addresses by the WBR-6600‟s DHCP Server.  IP Address: The current corresponding DHCP-assigned dynamic IP address of the device.  MAC Address: The MAC Address of internal DHCP client host.

  • Page 46: System Log

    System Log Display system logs accumulated up to the present time. You can trace historical information with this function.

  • Page 47: Firewall Log

    Firewall Log Firewall Log displays log information of any unexpected action with your firewall settings. This page displays the router‟s Firewall Log entries. The log shows log entries when you have enabled Intrusion Detection or Block WAN PING in the Configuration – Firewall section of the interface.

  • Page 48: Upnp Portmap

    UPnP Portmap The section lists all port-mapping established using UPnP (Universal Plug and Play). Please see the Advanced section of this manual for more details on UPnP and the router‟s UPnP configuration options.

  • Page 49: Quick Start

    Quick Start This wizard is similar to Easy Sign On, and will guide you through setting up your WBR-6600. Click ”Continue” to start the wizard. The steps are the same as the Easy Sign On. ADSL  Connect mode: ADSL ...

  • Page 50: Ewan

    Obtain an IP Address Automatically When connecting to the ISP, the WBR-6600 also functions as a DHCP client. WBR-6600 can automatically obtain an IP address, subnet mask, gateway address, and DNS server addresses if the ISP assigns this information via DHCP.
  • Page 51 If connection is successful the following image will be shown.
  • Page 52 Fixed IP Address Select this option to set static IP information. You will need to enter in the Connection type, IP address, Netmask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x).
  • Page 53 If connection is successful the following image will be shown.
  • Page 54 PPPoE PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP.  Protocol: The current ATM protocol in the device  Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case...
  • Page 55 If connection is successful the following image will be shown.

  • Page 56: Set Wireless Configuration

    Set Wireless Configuration  WLAN Service: Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For security purpose, change to a unique ID name to the AP which is already built-in to the router‟s wireless interface.

  • Page 57: Configuration

    Configuration Click this item to access the following sub-items that configure the ADSL router: LAN, WAN, System, Firewall, QoS, Virtual Server, Wake on LAN, Time Schedule and Advanced. These functions are described in the following sections.

  • Page 58: Lan (Local Area Network)

    LAN (Local Area Network) A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. There are six items within the LAN section: Ethernet, IP Alias, Wireless, Wireless Security, and DHCP Server.

  • Page 59: Ethernet

    Ethernet The router supports more than one Ethernet IP addresses in the LAN, and with distinct LAN subnets through which you can access the Internet at the same time. Users usually only have one subnet in their LAN. The default IP address for the router is 192.168.0.1. ...

  • Page 60: Wireless

    Wireless  WLAN Service: Choose to Enable or Disable the Wireless Network. Default setting is set to Enable.  Mode: The default setting is 802.11g+n (Mixed mode). If you do not know or have both 11g and 11n devices in your network, then keep the default in mixed mode. From the drop-down manual, you can select 802.11g if you have only 11g card.
  • Page 61  Hide ESSID: It is function in which transmits its ESSID to the air so that when wireless client searches for a network, router can then be discovered and recognized. Default setting is Disable. o Enable: Select Enable if you do not want broadcast your ESSID. When select Enable, no one will be able to locate the Access Point (AP) of your router.

  • Page 62: Wireless Distribution System (Wds)

    Note: For MAC Address, Semicolon ( : ) or Dash (-) must be included. Wireless Security You can disable or enable with WPA, WPA2 or WEP for protecting wireless network. The default mode of wireless security is Disable. LevelOne recommends WPA2 for maximum security.

  • Page 63: Wpa Pre-Shared Key

    WPA Pre-Shared Key WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method then TKIP and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA Shared Key: The key for network authentication The input format is in character style and key size should be in the range between 8 and 63 characters.

  • Page 64: Wpa2 Pre-Shared Key

    WPA2 Pre-Shared Key WPA2 is a more advanced and secure form of encryption. The most secure form of wireless security is WPA2 with AES algorithms. WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method than TKIP and incorporates Message Integrity Code (MIC) to provide protection against hackers.

  • Page 65: Wpa/Wpa2 Pre-Shared Key

    WPA/WPA2 Pre-Shared Key This mode allows the WBR-6600 to accept wireless clients using both WPA and WPA2 encryptions. WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method than TKIP and incorporates Message Integrity Code (MIC) to provide protection against hackers.

  • Page 66: Wep

     WEP Authentication: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers secure data encryption, known as WEP. If you require high security for transmissions, there are three options to select from: Open System, Share key or Both. ...

  • Page 67: Wi-Fi Protected Setup (Wps)

    Wi-Fi Protected Setup (WPS) WPS feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-enabled Wi-Fi networks in the home and small office environment. It reduces the user steps required to configure a network and supports two methods that are familiar to most consumers to configure a network and enable security.
  • Page 68 Set up WBR-6600 as WPS Registrar Using the Registrar mode, it means that the WBR-6600 will be allocating the wireless security parameters such as encryption method and passphrase. There are two methods of connecting the WBR-6600 router to wireless devices using WPS.
  • Page 69 3. Press and hold the WPS button at the rear of the WBR-6600 for 1 second. 4. Press and hold the WPS button on your wireless client for 1 second. If your device has no physical WPS push button, then you can push the software button in the utility.
  • Page 70 PIN Code Method 1. First, select the Enrollee mode and note down the WPS Pin code on your wireless client‟s utility (Ex: 5919579). 2. Then proceed to set up your wireless security on the WBR-6600...
  • Page 71 In the future, you can set the router to search for WPS devices by pushing the WBR-6600‟s WPS button on the back of the unit for 1 second and then release. Note: The router will only wait 2 minutes for a client to connect. If you take longer than 2 minutes to set up the client, then you will need to re-initiate WPS on the WBR-6600.
  • Page 72 Security parameters such as SSID and Passphrases could be randomly generated, or set manually. 1. Ensure that the WPS is Enabled on the WBR-6600 and the Mode is set to Unconfigured. 2. In the WPS Settings, set the role to Enrollee, note down the WPS Pin number of the...
  • Page 73 3. Once the WBR-6600 has initiated WPS function, it will be listed in the AP List of the wireless client‟s utility. 4. Set the client to Registrar mode and enter the PIN number of the WBR-6600. 5. Click PIN to begin WPS pairing.
  • Page 74 Note: Before beginning, please ensure that you have a wired connection to the WBR-6600. 1. Set up the WBR-6600 for WPS Enrollee. (page 68) 2. Remember to note down the WBR-6600‟s PIN Code. 3. In Vista`s Control Panel, select Network and Internet and choose View network computers and devices.
  • Page 75 5. Enter the WBR-6600‟s PIN Code and click Next. 6. Enter the Wireless Network Name (SSID) you want and click the “Next” button.
  • Page 76 7. Enter the Passphrase and apply “Next” button. (You can use the one Vista randomly creates, or type your own) 8. WCN set up complete. You have set up a security-enabled Wi-Fi network.

  • Page 77: Dhcp Server

    DHCP Server You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router‟s DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to PCs on your network if they are configured to obtain IP addresses automatically.
  • Page 78 DHCP Server Mode: DHCP Server To configure the router‟s DHCP Server, check DHCP Server. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address.

  • Page 79: Wan (Wide Area Network)

    WAN (Wide Area Network) A WAN (Wide Area Network) is an outside connection to another network or the Internet. There are two items within the WAN section: WAN Profile and ADSL Mode.

  • Page 80: Wan Profile

    WAN Profile Profile Port - ADSL PPPoE Connection PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP.  Description: A user-definable name for this connection.  VPI/VCI: Enter the VPI and VCI information provided by your ISP. ...
  • Page 81  IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP.  Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap.  Obtain DNS Automatically: Select this check box to use DNS. ...
  • Page 82 PPPoA Connection PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP.  Description: User-definable name for the connection.  VPI/VCI: Enter the VPI and VCI information provided by your ISP. ...
  • Page 83  Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.  Connection:  Always on: The router will establish a PPPoA session when starting up and to automatically re-establish the PPPoA session when disconnected by the ISP.
  • Page 84 MPoA Connection  Description: Your description of this connection.  VPI and VCI: Enter the VPI and VCI information provided by your ISP.  Encap. method: Select the encapsulation format, the default is LLC. Select the one provided by your ISP. ...
  • Page 85 Pure Bridge Connections  Description: A user-definable name for this connection.  VPI/VCI: Enter the VPI and VCI information provided by your ISP.  Encap. method: Select the encapsulation format, this is provided by your ISP.

  • Page 86: Adsl Mode

    ADSL Mode WBR-6600A (Annex A) ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M” and “Annex J” that user can select for this connection. Modulator: There are seven modes “AUTO”,”ADSL multimode”,”ADSL2”,”ADSL2+”, “G.Lite:”, “T1.413”...
  • Page 87 WBR-6600B (Annex B) Modulator: There are two modes”ADSL2” and”ADSL2+” that user can select for this connection.

  • Page 88: System

    System There are six items within the System section: Time Zone, Firmware Upgrade, Backup/Restore, Restart, User Management and Mail Alert.

  • Page 89: Time Zone

    Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router retrieves the correct local time from the SNTP server you have specified.

  • Page 90: Firmware Upgrade

    Firmware Upgrade Your router‟s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

  • Page 91: Backup / Restore

    Backup / Restore These functions allow you to save and backup your router‟s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router‟s settings before making any significant changes to your router‟s configuration.

  • Page 92: Restart Router

    Restart Router Click Restart with option Current Settings to reboot your router and save the current configuration to device. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

  • Page 93: User Management

    User Management In order to prevent unauthorized access to your router‟s configuration interface, it requires all users to login with a password. You can set up multiple user accounts, each with their own password. You are strongly advised to change the password on the default “admin” account when you receive your router, and any time you reset your configuration to Factory Defaults.

  • Page 94: Mail Alert

    Mail Alert Send a log via email, if WAN IP is changed or if intruders accessing your computer without permission. Server Information  SMTP Server: Please enter the address of SMTP mail server for your outgoing emails. This is usually obtained from your ISP. ...

  • Page 95: Firewall

    Firewall Firewall and Access Control Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.
  • Page 96 Note: When using Virtual Servers (port mapping) your PCs are exposed to the ports specified opened in your firewall packet filter settings.  Firewall Security and Policy (General Settings): Inbound direction of Packet Filter rules prevent unauthorized computers or applications accessing your local network from the Internet.

  • Page 97: Packet Filter

    Packet Filter Packet filtering enables you to configure your router to block specified internal/external users (IP address) from Internet access, or you can disable specific service requests (Port number) to /from Internet. This configuration program allows you to set up to 6 different filter rules for different users based on their IP addresses or their network Port number.
  • Page 98  External Port: This is the Port or Port Range that defines the application.  Direction: Determine whether the rule is for outgoing packets or for incoming packets.  Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy.

  • Page 99: Mac Filter

    MAC Filter A MAC (Media Access Control) address is the unique network hardware identifier for each PC on your network‟s interface (i.e. its Network Interface Card or Ethernet card). Using your router‟s MAC Address Filter function, you can configure to block specific machines from accessing your LAN.
  • Page 100 Intrusion Detection Check Enable if you wish to detect intruders accessing your computer without permission. The router automatically detects and blocks a DoS (Denial of Service) attack. This kind of attack is not to access confidential data on the network; instead, it aims to disrupt specific equipment functions or the operations of entire network.
  • Page 101 For SYN Flood, ICMP Echo Storm and ICMP flood, IDS will just warn the user in the Event Log but it will not be able to protect against such attacks Hacker attack types recognized by the IDS Type of Drop Show Intrusion Name Detect Parameter...

  • Page 102: Block Wan Ping

    Max ICMP Count ICMP Flood (Default 100 c/sec) Max PING Count ICMP Echo (Default 15 c/sec) Src IP: Source IP Src Port: Source Port Dst Port: Destination Port Dst IP: Destination IP Block WAN PING Check Enable if you wish to exclude outside PING requests from reaching this router.

  • Page 103: Url Filter

    URL Filter URL (Uniform Resource Locator – e.g. an address in the form of http://www.example.com ) filter rules allow you to prevent users on your network from accessing particular websites from their URL. There are no pre-defined URL filter rules; you can add filter rules to meet your requirements.
  • Page 104 Domains Filtering: Checks the domain name in URLs accessed against your list of domains to block or allow. If it matches, the URL request is sent (Trusted) or dropped (Forbidden). The checking procedure is: 1. Check the domain in the URL to determine if it is in the trusted list. If yes, the connection attempt is sent to the remote web server.
  • Page 105  Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy. For setup and detail, refer to Time Schedule section.  Log: Click “Log” if you wish to generate logs when the filer rule is applied to the URL Filter.

  • Page 106: Qos (Quality Of Service)

    QoS (Quality of Service) Quality of Service Introduction If you‟ve ever found your „net‟ speed has slowed to a crawl because another family member is using a P2P file sharing program, you‟ll understand why the Quality of Service features in the routers is such a breakthrough for home users and office users.
  • Page 107 Application: A name that identifies an existing policy. Direction: The traffic flow direction to be controlled by the QoS policy. There are two settings to be provided in the Router:  LAN to WAN: You want to control the traffic flow from the local network to the outside world.
  • Page 108 DSCP Mapping Table ADSL2+ Router Standard DSCP Disabled None Best Effort Best Effort (000000) Premium Express Forwarding (101110) Gold service (L) Class 1, Gold (001010) Gold service (M) Class 1, Silver (001100) Gold service (H) Class 1, Bronze (001110) Silver service (L) Class 2, Gold (010010) Silver service (M) Class 2, Silver (010100)
  • Page 109 Priority: Specify the priority for the bandwidth that is not used. For examples, you may specify two different QoS policies for different applications. Both applications need a minimal bandwidth and need more bandwidth, beside the assigned one, if there is any available/non-used one available.

  • Page 110: Connection Diagram

    QoS example for your Network Connection Diagram VoIP HTTP web Normal PCs browsing users Restricted PC ADSL Subscription Rate Upstream: 256 kbps Downstream: 2048 Mbps Example QoS Plan Application IP or Ports Control Flow Data Rate Time Schedule VoIP User 192.168.1.1 Outgoing Minimal 20% with high priority for...
  • Page 111 Example QoS Setup VoIP Applications Voice is latency-sensitive application. Most VoIP devices are used SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority.

  • Page 112: Virtual Server

    Virtual Server In TCP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.
  • Page 113 Well-known and Registered Ports Port Number Protocol Description FTP Data FTP Control TCP & UDP SSH Remote Login Protocol Telnet SMTP (Simple Mail Transfer Protocol) TCP & UDP DNS (Domain Name Server) TFTP (Trivial File Transfer Protocol) World Wide Web HTTP POP3 (Post Office Protocol Version 3) NEWS (Network News Transfer Protocol) NTP (Network Time Protocol)

  • Page 114: Port Mapping

    Port Mapping  Application: Select the service you wish to configure  Protocol: Automatic when you choose Application from listbox or select a protocol type which you want.  External Port & Internal Port: Enter the public port number & range you wish to configure.
  • Page 115 For example, if you set the port number 80 (Web/HTTP) to be mapped to the IP Address 192.168.1.2, then all incoming HTTP requests from outside users are forwarded to the local server (PC) with the IP address of 192.168.1.2. If the port is not listed as a predefined application, you need to add it manually.

  • Page 116: Dmz

    The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets are checked by the Firewall and NAT algorithms, it is then passed to the DMZ host when a packet received does not use a port number in use by any other Virtual Server entries.

  • Page 117: Wake On Lan

    Wake on LAN Wake on LAN allows you to power on computers remotely through the WBR-6600 web user interface. Your PC or notebook will need to support feature. Enter the MAC address of the PC or notebook you want to wake up.

  • Page 118: Time Schedule

    Time Schedule The Time Schedule supports up to 16 time slots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications. This Time Schedule correlates closely with router‟s time, since router does not have a real time clock on board;...

  • Page 119: Advanced

    Advanced Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.

  • Page 120: Static Route

    Static Route  Destination: The destination subnet IP address.  Netmask: Subnet mask of the destination IP addresses based on above destination.  Gateway: The gateway IP address to which packets are forwarded.  Interface: Select the interface through which packets are forwarded. ...

  • Page 121: Dynamic Dns

    Dynamic DNS The Dynamic DNS function lets you alias a dynamic IP address to a static hostname, so if your ISP does not assign you a static IP address you can still use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time.

  • Page 122: Vlan

    LAN segment. For example, only Computers which have the same VLAN ID tags can communicate with each other. This feature is usually used together with Web Smart Switches such as LevelOne GSW-2473.  LAN Group Name: The name you will give to this VLAN.

  • Page 123: Device Management

    Device Management The Device Management advanced configuration settings allow you to control your router‟s security options and device monitoring features. Embedded Web Server: HTTP Port: The port number of the router‟s embedded web server (for web-based configuration uses. The default value is the standard HTTP port, 80. You may specify an alternative if, for example, you are running a web server on a PC within your LAN.
  • Page 124 Universal Plug and Play (UPnP): UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through UPnP NAT Traversal, and on supported systems makes tasks such as port forwarding much easier by letting the application control the required settings, removing the need for the user to control advanced configuration of their device.
  • Page 125 Installing UPnP in Windows 98 Example Follow the steps below to install the UPnP in Windows Me. Step 1: Click Start and Control Panel. Double-click Add/Remove Programs. Step 2: Click on the Windows Setup tab and select Communication in the Components selection box.
  • Page 126 Step 3: In the Communications window, select the Universal Plug and Play check box in the Components selection box. Step 4: Click OK to go back to the Add/Remove Programs Properties window. Click Next. Step 5: Restart the computer when prompted. Follow the steps below to install the UPnP in Windows XP.
  • Page 127 Step 4: Select Networking Service in the Components selection box and click Details. Step 5: In the Networking Services window, select the Universal Plug and Play check box. Step 6: Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.
  • Page 128 Auto-discover Your UPnP-enabled Network Device Step 1: Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Step 2: Right-click the icon and select Properties. Step 3: In the Internet Connection Properties window, click Settings to see the port mappings that were automatically created.
  • Page 129 Step 4: You may edit or delete the port mappings or click Add to manually add port mappings. Step 5: Select Show icon in notification area when connected option and click OK. An icon displays in the system tray Step 6: Double-click on the icon to display your current Internet connection status.
  • Page 130 Step 3: Select My Network Places under Other Places. Step 4: An icon describing each UPnP-enabled device shows under Local Network. Step 5: Right-click on the icon of your WBR-6600 and select Invoke. The web configuration login screen displays. Step 6: Right-click on the icon of your WBR-6600 and select Properties. A properties...

  • Page 131: Igmp

    IGMP IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group.  IGMP Proxy: Accepting multicast packet. Default is set to Disable.  IGMP Snooping: Allowing switched Ethernet / Wireless to check and make correct forwarding decisions.
  • Page 132 Write Community: Specify a name to be identified as the Write Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, users from this IP address will be able to view and modify the data.
  • Page 133 From RFC1650 (EtherLike-MIB):  dot3Stats From RFC 1493 (Bridge MIB):  dot1dBase group  dot1dTp group  dot1dStp group (if configured as spanning tree) From RFC 1471 (PPP/LCP MIB):  pppLink group  pppLqr group From RFC 1472 (PPP/Security MIB): ...

  • Page 134: Remote Access

    Remote Access Remote Access Control  Enable: Select Enable to allow management access from remote side (mostly from internet)  Duration: Set how many minutes to allow management access from remote side. Zero means always on. Allowed Access IP Address Range: ...

  • Page 135: Save Configuration To Flash

    Save Configuration to Flash After changing the router‟s configuration settings, you must save all of the configuration parameters to FLASH to avoid losing them after turning off or resetting your router. Click “Save Config“ and click “Apply” to write your new configuration to FLASH. Restart Click Restart with option Current Settings to reboot your router (and restore your last saved configuration).

  • Page 136: Logout

    Logout To exit the router‟s web interface, choose Logout. Please ensure that you have saved the configuration settings before you logout. Be aware that the router is restricted to only one PC accessing the configuration web pages at a time. Once a PC has logged into the web interface, other PCs cannot get access until the current PC has logged out of the web interface.

  • Page 137: Chapter 6 - Troubleshooting

    Otherwise, press and hold the reset button on the back of the unit to reset the WBR-6600 to factory default settings. In this case, you will need to close and reopen your web browser to reinitialize Easy Sign On.
  • Page 138 Frequent loss of Ensure that all other devices connected to the same telephone ADSL linesync line as your router (e.g. telephones, fax machines, analogue (disconnections). modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly installed and the right way around.

  • Page 139: Regulatory Approvals

    Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 140: Ce Approval

    If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US$9.99 plus the cost of shipping.

Table of Contents
