Home Topload
Washers
Refer to Page 3 for Model Numbers
Part No. 201519R8
www.alliancelaundry.com
October 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWN311SP111TW01 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems AWN311SP111TW01

Summary of Contents for Alliance Laundry Systems AWN311SP111TW01

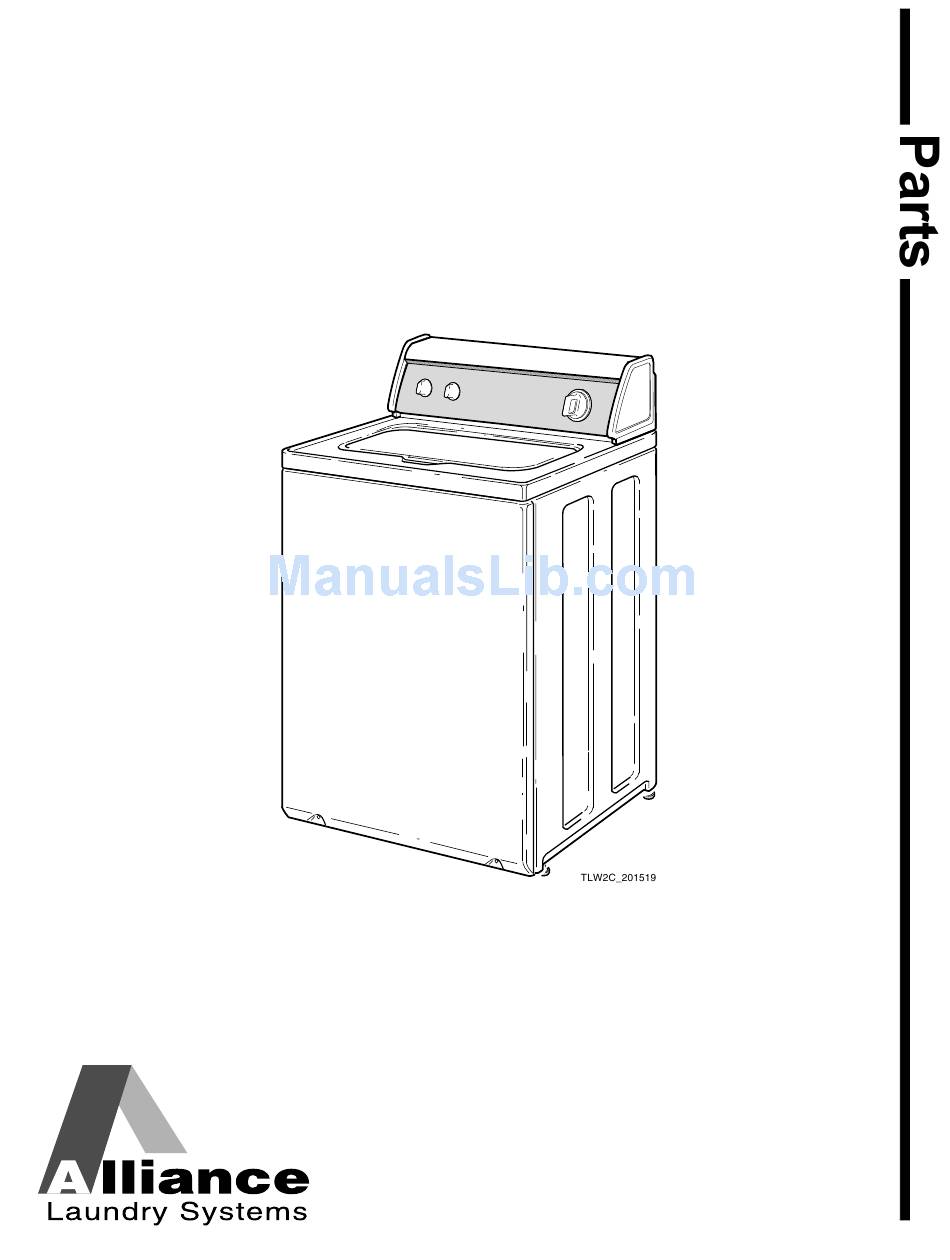

  • Page 1 Home Topload Washers Refer to Page 3 for Model Numbers Part No. 201519R8 www.alliancelaundry.com October 2013...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 4: Parts Ordering Information

    Nameplate Location When calling or writing about your product, be sure to mention model and serial numbers. Model and serial numbers are located on nameplate(s) as shown. NAMEPLATE 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 5: Model Identification

    Model Identification Information in this manual is applicable to these washer models: AWN311SP111TW01 AWN412SP111TW01 AWN432SP111TW01 AWN542SP111TW01 AWN542SP111TWAH AWNA11SP111TW01 AWS01NW AWS17NW AWS44NW AWS45NW AWS48NW AWS51NW AWS52NW AWS53NW AWS75NW AWS76NW 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 6: Graphic Panel, Control Support Panel And Controls

    Graphic Panel, Control Support Panel and Controls All Models Except AWNA11SP111TW01 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 7 AWN542SP111TWAH, AWS51NW, AWS52NW, AWS53NW, AWS75NW and AWS76NW 803119P Control Knob Assembly Models AWN311SP111TW01, AWN412SP111TW01, AWN432SP111TW01 and AWN542SP111TW01 804719 Control Knob Assembly Model AWN542SP111TWAH 36701W Knob Assembly All other models 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 8: Control Panel, Control Support Panel And Controls

    Control Panel, Control Support Panel and Controls Model AWNA11SP111TW01 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 9 Transformer 503661 Screw 202440W Control Panel 38171 Control Support Panel 801356 Indicator Light 803168P Knob Assembly 801434W Push-to-Start Switch 801435 Indicator Light Lens 803119P Control Knob Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 10: Lid Switch Assembly

    Lid Switch Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 11 Lid Switch Assembly PART NO. DESCRIPTION COMMENTS 37631 Lid Switch Assembly M402574 Screw M400981 23962 Screw 33445 Switch 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 12: Top, Lid And Hood Back Panel

    Top, Lid and Hood Back Panel Ground Wire 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 13 Use for older style panel attachment 202326WP Top Assembly Model AWNA11SP111TW01 37992WP All other models 38382 Bleach Dispenser All models except AWNA11SP111TW01 36437 Lid Hinge Right 36513 Lid Hinge Left 21685 Bumper 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 14: Fill Hose, Mixing Valve-To-Tub Cover Hose, Mixing Valve And Bracket - Models Aws48Nw And Aws53Nw

    Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Bracket - Models AWS48NW and AWS53NW 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 15 Use to cap off hot water side of mixing valve on certain models 24122 Mixing Valve Screen 201304P Mixing Valve 39397 Screw 34500 Backflow Preventer 36801 Hose Clamp 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 16: Fill Hose, Mixing Valve-To-Tub Cover Hose, Mixing Valve And Bracket - All Models Except Aws48Nw And Aws53Nw

    Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Bracket - All Models Except AWS48NW and AWS53NW 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 17 Use to cap off hot water side of mixing valve on certain models 24122 Mixing Valve Screen 36801 Hose Clamp 34500 Backflow Preventer RB150001 Mixing Valve Kit Includes 201402P Mixing Valve and F200116 Water Hose 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 18: Motor, Mounting Bracket, Belt, Pump And Idler Assembly

    Motor, Mounting Bracket, Belt, Pump and Idler Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 19 52909 Screw Models AWN412SP111TW01, AWN432SP111TW01, AWN542SP111TW01, AWN542SP111TWAH and AWNA11SP111TW01; Models AWS44NW, AWS51NW and AWS76NW starting Serial Nos. beginning 0904 37772 Washer 38395 Motor Mount 35632P Motor Switch 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 20: Agitator, Drive Bell, Hub And Lip Seal Kit And Washtub

    Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub Models AWNA11SP111TW01 and AWS01NW 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 21 29728 Spline Insert 29220 36425 Bell and Transmission Tube Seal 39508P Drive Bell and Seal Kit Includes items 11, 13 and 14 39432 Screw 36511 Bell Plug 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 22: Agitator, Fabric Softener Dispenser, Drive Bell, Hub And Lip Seal Kit And Washtub

    Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub All Models Except AWNA11SP111TW01 and AWS01NW 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 23 Lint Filter 39508P Drive Bell and Seal Kit Includes items 7, 10 and 11 39432 Screw 36511 Bell Plug 36507 Flex Vane Agitator 36542 Fabric Softener Dispenser Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 24: Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And Counterweight

    Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight All Models Except AWNA11SP111TW01 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 25 Sealant Use with hub and lip seal kit 500049 Warning Label 29175 Grommet 30907 Pressure Bulb 39282 Hose Clamp 36985 Hose Clip 21036 Cable Clip 202700 Tubing 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 26: Outer Tub, Cover, Pressure Hose And Counterweight

    Outer Tub, Cover, Pressure Hose and Counterweight Model AWNA11SP111TW01 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 27 Leg Spring 39566 Screw 38769 Counterweight Assembly 39249 Washer 500049 Warning Label 29175 Grommet 30907 Pressure Bulb 39282 Hose Clamp 36985 Hose Clip 21036 Cable Clip 202700 Tubing 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 28: Drain Hose And Siphon Break Kit

    Drain Hose and Siphon Break Kit Standpipe 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 29 AWN542SP111TWAH, AWS17NW, AWS44NW, AWS45NW, AWS48NW, AWS51NW, AWS52NW, AWS53NW, AWS75NW and AWS76NW 32219 Strain Relief 39893 Drain Hose 38732 Hose Stand F200204 Hose Clamp 38351 Tub-to-Pump Hose 36014 Retainer Clip 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 30: Weldment And Bearing Assembly, Brake And Pulley

    Weldment and Bearing Assembly, Brake and Pulley 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 31 Apply small amount to each new brake pad 39739 Screw 35535 Washer Thin 27015 Washer Thick 38143 Pulley 26509 Washer 27220 Screw 38008 Helix 28944RP Upper or Lower Bearing 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 32: Transmission Assembly

    Transmission Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 33 Transmission Cover Assembly 37404P Reduction Gear 29260 Washer 29273 Screw 26493 Slide 201664 Rack 27197 Retaining Ring 27003 Agitator Pinion 35092 Washer 38864 Gear Sleeve 33223P Transmission Case Assembly 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 34: Front Panel, Base Assembly And Cabinet Kit

    Front Panel, Base Assembly and Cabinet Kit 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 35 Front Panel 201495 Sticker Models AWS01NW, AWS17NW, AWS44NW, AWS45NW, AWS48NW, AWS51NW, AWS52NW, AWS53NW, AWS75NW and AWS76NW 35865 Hold-Down Clip New style panel attachment 35097 Front Panel Brace 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 36: Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool

    Mixing Valve and Motor Connection Blocks, Terminals and Extractor Tool 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 37 Female Terminal For 1 or 2 wire application 00121 Female Spade Terminal 1/4 inch 34675 Mixing Valve Plug Natural 34676 Mixing Valve Plug 283P4 Terminal Extractor Tool 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 38: Lead-In Cord And Terminals

    Lead-In Cord and Terminals GROUND WIRE 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 39 Lead-In Cord 00116 Male Pin Terminal 23033 9 Circuit Plug 21036 Cable Clip 26163 9 Circuit Receptacle 00117 Female Pin Terminal 55881 Harness Strap 36274 Wire Clip 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 40: Terminals

    Terminals 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 41 Female Spade Terminal Large spade Ring Terminal 1/4 inch 00110 Ring Terminal Small shank 21091 Connector (2) 1/4 inch male spades N/A = Part no longer available 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 42: Shipping Brace, Plug And Special Tools

    Shipping Brace, Plug and Special Tools 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 43 Install before moving washer to prevent tub from damaging cabinet 321P4 Spring Hook Tool For removal of module springs from outer tub 306P4 Hex Wrench Tool For removal of locknut from washtub hub 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 44: Special Tools

    Special Tools 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 45 293P4 Drive Bell Seal Tool For installation of 36425 Bell and Transmission Tube Seal 254P4P Agitator Hook Set of 2; Use to remove agitator from drive bell 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 46: Wire Harnesses And Wires

    Wire Harnesses and Wires 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 47 NOTE: Individual wires are not available separately. Order complete wire harness, or order wire by the foot. When applying terminals to wires, it is recommended that the terminals be soldered to the wires. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 48 Notes 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 49: Parts Index

    735P3..............29 Bumper 21685 ..............11 End Panel 504008WP.............5, 7 Bumper Pad 36226 ..............33 504009WP.............5, 7 56128 ..............33 N/A items do not appear in index. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 50 Harness Strap 00359 ..............37 55881 ..............37 Isolator Post Helix 38325 ..............17 38008 ..............29 Hex Wrench Tool 306P4..............41 N/A items do not appear in index. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 51 Rear Panel Assembly 201615P..............17 202319 ..............11 38034P..............17 Receptacle, 9 Circuit 38036P..............17 26163 ..............37 Motor Mount 38395 ..............17 N/A items do not appear in index. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 52 37577P ..............31 Spline Insert Tub Assembly 29728 ..............19, 21 202363 ..............25 Spring Clip 202374 ..............19 210202 ..............17 39252P ..............19 N/A items do not appear in index. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 53 504034 ..............39 Wire Harness Assembly 38661P..............45 Wire, 12 Gauge 45380 ..............45 Wire, 18 Gauge 45001 ..............45 N/A items do not appear in index. 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 54 Notes 201519 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
