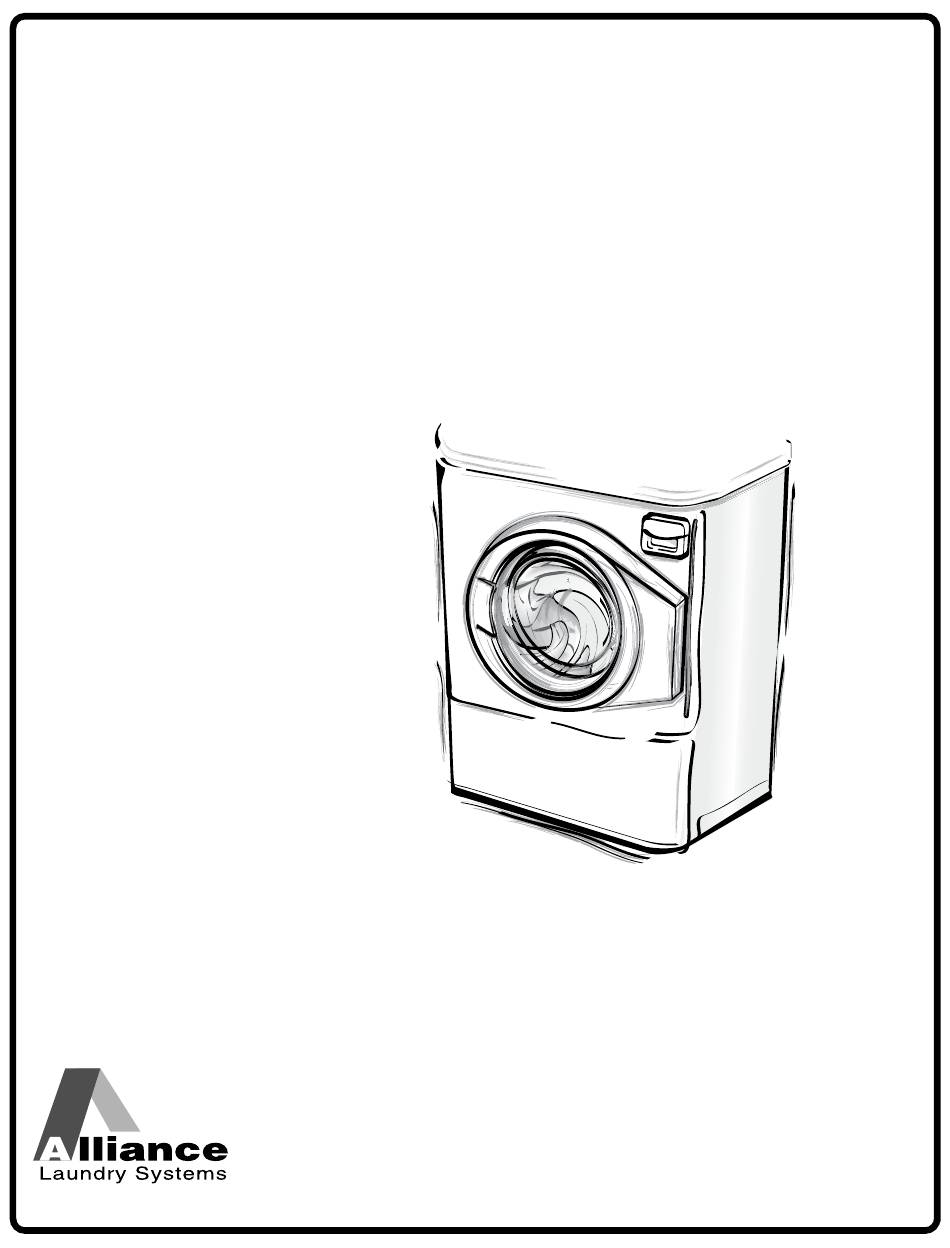

User's Guide
for Frontload Washers
FLW1548C_SVG
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 804648ENR6
October 2016
www.speedqueen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFNE9BSP113TN01 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems AFNE9BSP113TN01

Summary of Contents for Alliance Laundry Systems AFNE9BSP113TN01

  • Page 1 User's Guide for Frontload Washers FLW1548C_SVG Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 804648ENR6 October 2016 www.speedqueen.com...
  • Page 3 Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand. Read all instructions before using washer. This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 4: Product Registration

    Product Registration Product Registration New owners of Alliance Laundry Systems equipment are encour- aged to register their appliance to insure proper limited warranty coverage. Register online at http://www.speedqueen.com/home/en- us/support/product-registration.aspx or contact your dealer to register your appliance. All information will be kept confidential and will not be distributed to other parties.

  • Page 5: Table Of Contents

    Preventative Maintenance................25 © Copyright 2016, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher.
  • Page 6 Troubleshooting................27 Warranty Repairs................... 31 Contact Information................31 © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 7: Safety Information

    Cleaning and user maintenance shall not be made by children without supervision. • Children less than three years should be kept away unless con- tinuously supervised. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 8 Always contact your dealer, distributor, service agent or the manu- facturer about any problems or conditions you do not understand. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 9: Operation

    Some oils may remain after washing and color bleeds or runs, wash the item separately in cold water. may cause the fabric to catch on fire by itself. W527 © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 10: Loading The Washer

    © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 11: Control Panel

    The descrip- tions are standard settings that may be modified using the Selec- tions and Options. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 12: Selections

    Window may be hot in the Hot Wash Cycle. This Option will provide an additional rinse to the selected cycle. The water temperature will be cold. W326 © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 13: Status

    While the door is locking, the door lock status light flashes (1 sec- ond on/1 second off). While unlocking, the door lock status light stays lit and the cycle time flashes (1 second on/1 second off). © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 14 St to restart the cycle. Close the door and press the Start/Pause button to resume the cycle. The Door Lock light will flash while the door re-locks. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 15: Out Of Balance Load

    If this condition occurs, redistribute the load manually and run a SPIN cycle. If the condition persists, consider steps discussed in the Before Washing section. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 16: Cycle Operation

    Quick Wash = Regular Agitate, Distribute Spin Spin 4:35 Ramp Spin Rinse Fill/Tumble 3:25 Regular Agitate, Dis- Not active in Quick tribute Wash Cycle Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 17 Fill/Tumble 2:30 Wetting Agitate Soak Fill/Tumble/Soak 34:00 Low Agitate, Off, Soak Option Agitate, Off, Distribute Pre-Wash Fill/Tumble 7:00 Hand Wash Agitate, Option Distribute Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 18 Agitate, Off, Distribute Pre-Wash Fill/Tumble 7:00 Regular Agitate, Dis- Option tribute Second Rinse Fill/Tumble 3:25 Regular Agitate, Dis- Option tribute Spin 4:35 Ramp Spin Option Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 19: Common Washer Sounds

    Start/Pause button and re- distribute the load. Rumbling Washer may not be level. Stop washer and adjust leveling legs. Refer to INSTALLATION INSTRUCTIONS for details. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 20: Using Your Dispenser Drawer

    Carefully close dispenser drawer. Do not allow softener to spill into other compartments. NOTE: If using non-HE detergent, avoid oversudsing by using only 1/2 of the detergent manufacturer's recom- mended amount. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 21 To Clean the Dispenser Pour hot water into the dispenser drawer, making sure it flushes through each compartment. Use a small brush to thoroughly clean out any residue. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 22: Clothing Care

    Always keep level at or below maximum in bleach dispenser compartment. Insufficient Precare Fasten all hooks and zippers. Mend tears. Remove objects from pockets. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 23 Improper Cycle Make sure cycle selected is appropriate for type of clothes. Improper Temperature Using a warm or cold wash and a cold rinse reduces wrinkling. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 24: Maintenance

    Usually a mild soap solution will work. If there is an extreme build-up spacer is fully inserted. of minerals from a hard water supply, the surfaces may need to be cleaned with a lime removal chemical. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 25: Cleaning Foreign Object Trap

    4. With rag or vacuum ready, unscrew the cap on the left side of the pump and remove trap. 5. Clean the debris from the trap. 6. Reinstall the trap and access panel. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...

  • Page 26: Preventative Maintenance

    Every five years 1. Have a qualified service technician conduct general preventative maintenance on the washer to ensure it operates properly. 2. Replace the fill hoses. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 27 Wash load may be unbalanced. Washer will stop and then re- start spin automatically. If the washer is severely unbalanced, press the Start/Pause button and redistribute the load. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 28 When rotating the tub slowly you will hear the balance balls click together. This noise is normal and does not require a service call. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 29 Clean the screens in the water mixing valve and the filter screens located at the faucet end of the fill hoses. • Unplug the machine for 15 seconds to clear this code. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 30 The control has detected an oversudsing condition and is run- Sr, cycle time remaining on digital display ning a special routine to remove the excess suds. © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
  • Page 31 Serial Number __________________________ FLW2305N_SVG 1. Serial Plate When contacting us about your washer, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located © Copyright, Alliance Laundry Systems LLC - Part No. 804648ENR6 DO NOT COPY or TRANSMIT...
