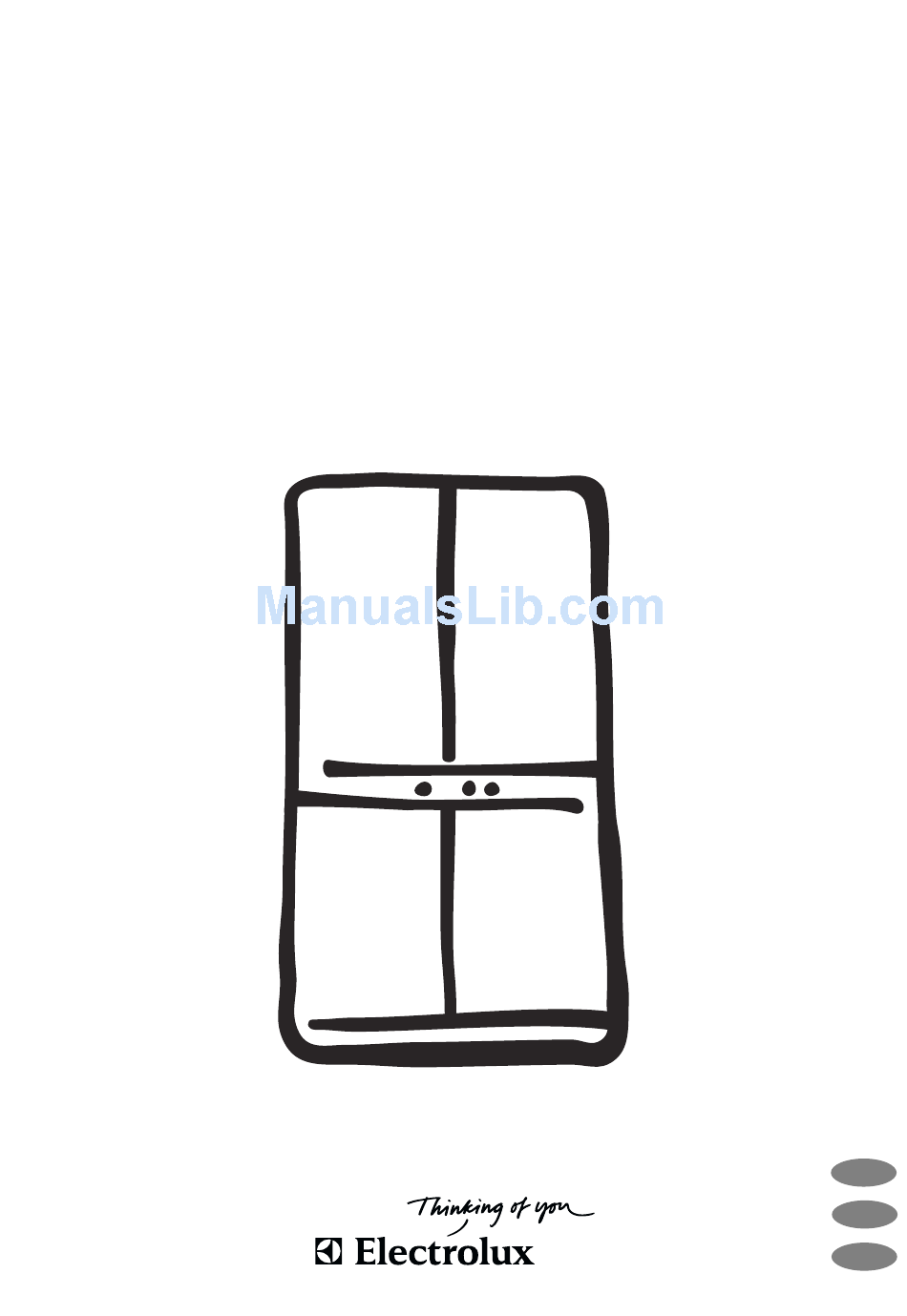

- Page 1 / f r i d g e - f r e e z e r f r i g o r i f i c o - c o n g e l a d o r buzdolab› - dondurucu MANUAL DE INSTRUÇÕES INSTRUCTION BOOK KULLANMA KILAVUZU...
-
Page 2: Warnings
W ARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. - Page 3 the scraper provided. Under no circumstances • There are working parts in this product which should solid ice be forced off the liner. Solid ice heat up. Always ensure that there is adequate should be allowed to thaw when defrosting the ventilation as a failure to do this will result in appliance.
-
Page 4: Table Of Contents
CONTENTS Warnings ................Use - Cleaning the interior - Use of the freezer - Control panel . -
Page 5: Use - Cleaning The Interior - Use Of The Freezer - Control Panel
Do not use detergents or abrasive Cleaning the interior powders, as these will damage the finish. Before using the appliance for the first time, wash the interior and all internal accessories with luke- warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. -
Page 6: Freezing Fresh Food - Storage Of Frozen Food - Thawing - Ice-Cube Production - Freezing Fresh Food
F. Alarm reset light Warning! When use the “Auto freeze” function: G. Alarm reset button about 6 hrs Introducing small quantities of fresh food In the event of an abnormal temperature rise inside before (about 5 kg) the freezer (e.g. power cut) warning light (F) will start to flash and a buzzer will sound. -
Page 7: Freezer Compartment - Useful Hints For Freezing
Freezer compartment • If food is to be frozen immediately after having installed the appliance or after a prolonged period out of use, push the button (I) and allow the appliance to run for at least 4 hours before placing the food in it. If the freezer is already operating, with food inside it, push the button (I) 24 hours before loading food to be frozen. -
Page 8: Use Of The Refrigerator - Control Panel
Use of the refrigerator Control Panel ON/OFF light M. Temperature indicator Fridge button ON/OFF Temperature setting button (warmest) During normal functioning the indicator shows the temperature inside the fridge. Temperature indicator Temperature setting button (coldest) Super Cooling light Attention! Suoper Cooling button Difference between the temperature displayed and D.A.C. -
Page 9: Air Recycling - Refrigerator Compartment
Air recycling Fig. 1 LIGHT The refrigerator compartment is equipped with a special D.A.C.(Dynamic Air Cooling) fan which can be turned on with the button (R - see the control panel). The green light (see fig. 1), when on, means that the fan is working. -
Page 10: Maintenance - Cleaning The Inside - Defrosting - Replacing The Bulbs
MAINTENANCE Before carrying out any maintenance operations, including those described in this book, unplug the appliance from the mains supply. Warning This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Cleaning the inside Clean the inside of the appliance and the accesso- ries with a solution of lukewarm water and bicar-... -
Page 11: Troubleshooting - Technical Information
TROUBLESHOOTING If something is not working properly, make sure that all the instructions in this book trave been followed before calling the SERVICECENTRE. The compressore are not working • Power cut or power supply problem. • The ON/OFF button in position “OFF”. The interior lights are not working •... -
Page 12: Installation - Location - Electrical Connection
INSTALLATION If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child. -
Page 13: Positioning - Height Adjustment - Fitting The Side Panels
POSITIONING Height adjustment The height of the appliance is adjustable from 820 to 870 mm to fine up with existing kitchen units. Before installing the appliance between unite, adjust the height of the feet and rear wheels. The wheels are factory set for a height of 820 mm. To align the appliance to a height of 870 mm, raise it by adjusting the feet with a spanner, then remove the wheels and refit them in the lowest position. -
Page 14: Fitting The Door Panels
Fitting the door panels • Perforate the doors as in the drawing and insert the two screws in the bag (do not tighten them all the way down) for doors. RIGHT-HAND LEFT-HAND • Before installing the doors, carefully level the FRONT PANEL FRONT PANEL appliance. -
Page 15: Building The Appliance In
• Check horizontal alignment of the doors and, if necessary, correct their position by moving them along the slots. • Open the door. Adjust the planarity of the doors by means of the adjustment bushings and the lower square. • Once the doors are perfectly and completely aligned, fix a clamp screw inside the bushings (upper and lower hinge) on the lower bracket. -
Page 16: Fitting The Plinth
Fitting the plinth Alignment height of 820 mm • If using a 140 to 170 mm plinth, make a cut-out as shown. • If using a plinth higher than 100 mm but less than 140 mm, cut the height compensation strip supplied with the appliance to the required depth and fit it between the plinth and the ventilation griile, pressing it into position below this grille. - Page 17 ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE...
