Fireplace Installation
flue to prevent rain from
entering.
3. Plan your electric power sup-
ply.
4. The power cord can run along
the front of the hearth to an
outlet near the fireplace.

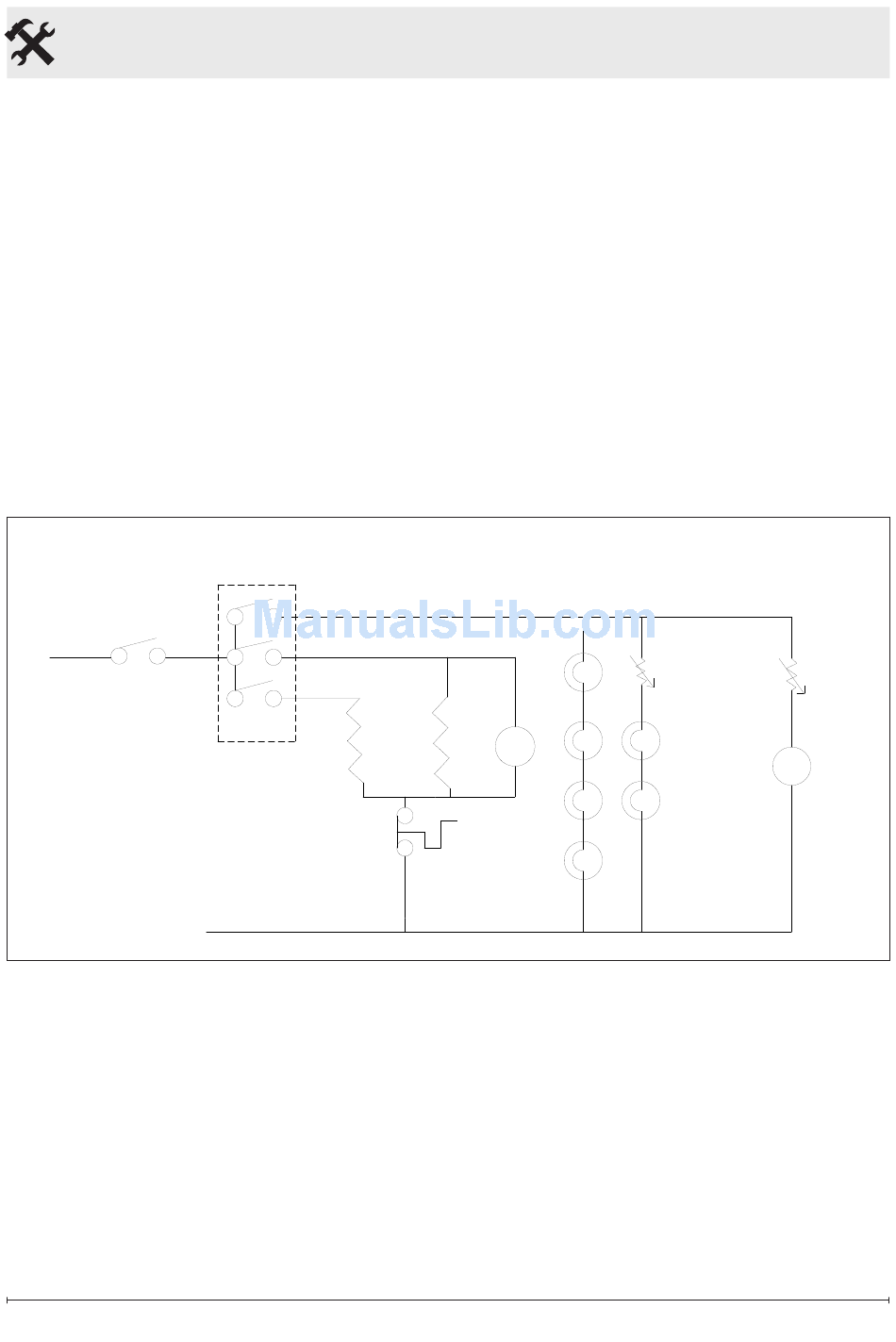

Wiring
On/Off Switch
L
3 STAGE RECEIVER
STAGE 1
STAGE 2
STAGE 3
CUT-OUT
N
LOWER
LIGHTS
BLOWER
MOTOR
M
ELEMENTS
DIMMER
SPEED
CONTROL
UPPER
LIGHTS
M
FLICKER
MOTOR
