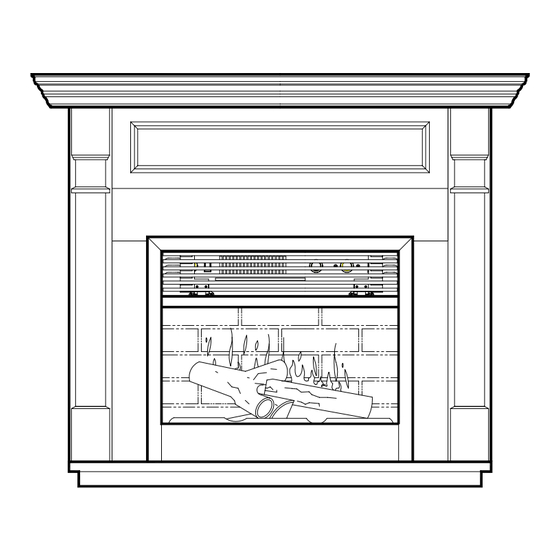

Dimplex EF3003 Troubleshooting Manual
30” fireplace
Hide thumbs
Also See for EF3003:
- Parts & service manual (23 pages) ,
- Service manual (16 pages) ,
- Troubleshooting manual (4 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Dimplex EF3003
Summary of Contents for Dimplex EF3003
- Page 1 TROUBLESHOOTING GUIDE FOR THE 30” FIREPLACE MODEL NUMBER: EF3003 SF3003 DF3003...
-
Page 2: Troubleshooting Guide
EF3003, SF3003, DF3003 TROUBLESHOOTING GUIDE GENERAL Service Manual Problem Cause Solution Reference Circuit breaker trips Additional appliances may or fuse blows when exceed the current rating of unit is turned on the circuit breaker or fuse. Improper circuit current rating Plug unit into another outlet or install unit on a dedicated 15 amp circuit... - Page 3 EF3003, SF3003, DF3003 TROUBLESHOOTING GUIDE HEATER Service Manual Problem Cause Solution Reference Defective heater on/off switch Replace heater on/off switch Page 17 Heater is not turning off Improper operation See User’s Guide Loose wiring Trace wiring in unit Page 9 Defective heater on/off switch Replace heater on/off switch Page 17...
- Page 4 EF3003, SF3003, DF3003 TROUBLESHOOTING GUIDE HEATER (CONTINUED) Service Manual Problem Cause Solution Reference Loose wiring Trace wiring in unit Page 9 Heater fan runs Defective heater on/off switch Replace heater on/off switch Page 17 continuously Defective heater assembly Replace heater assembly Page 18 NOISE Service Manual...
