D5-K1-N

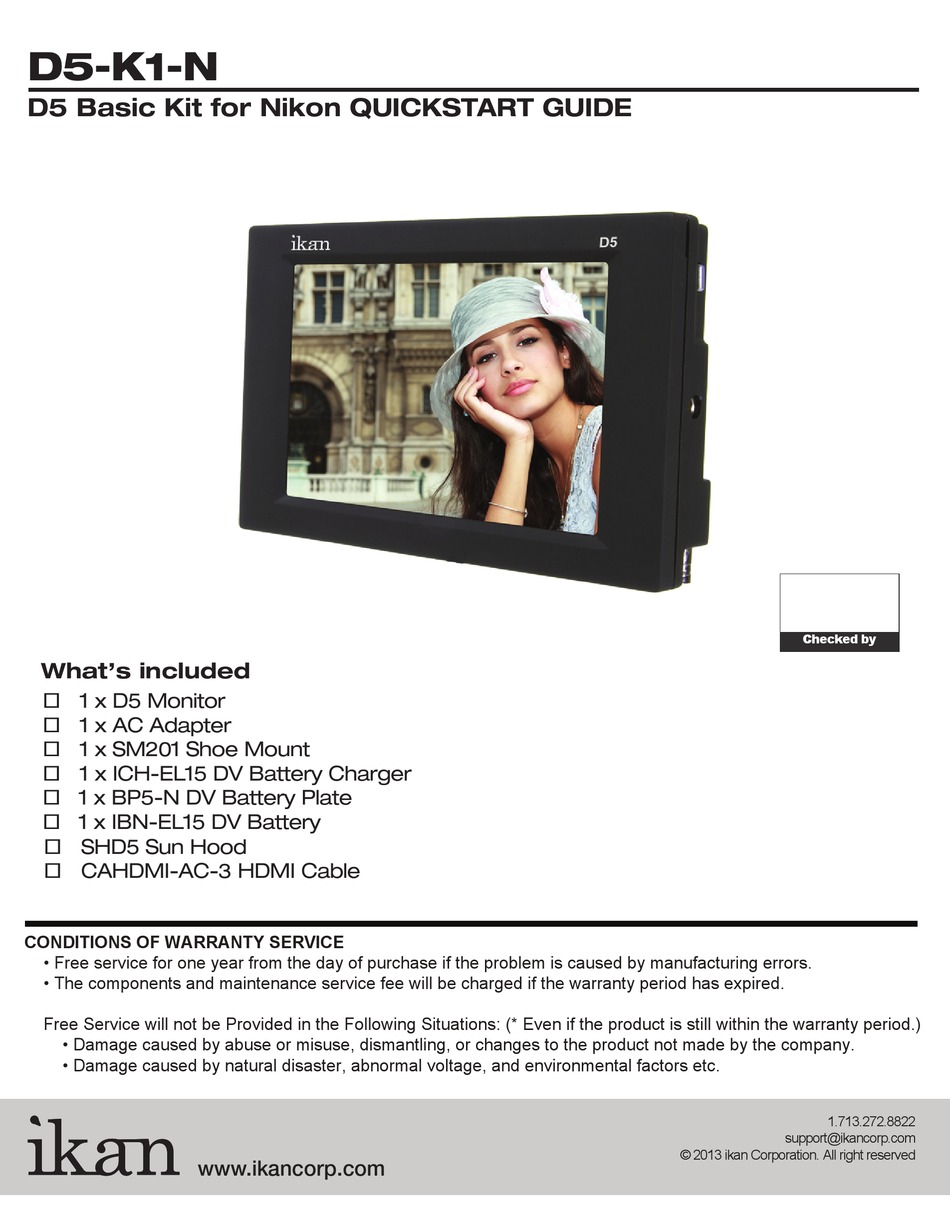

D5 Basic Kit for Nikon QUICKSTART GUIDE
What's included
 1 x D5 Monitor
 1 x AC Adapter
 1 x SM201 Shoe Mount
 1 x ICH-EL15 DV Battery Charger
 1 x BP5-N DV Battery Plate
 1 x IBN-EL15 DV Battery
 SHD5 Sun Hood
 CAHDMI-AC-3 HDMI Cable
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
Checked by
1.713.272.8822
support@ikancorp.com
© 2013 ikan Corporation. All right reserved

Advertisement

loading

Summary of Contents for Ikan D5-K1-N

  • Page 1 • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors etc. 1.713.272.8822 support@ikancorp.com © 2013 ikan Corporation. All right reserved www.ikancorp.com...
  • Page 2 D5-K1-N D5 Field Monitor Kit QUICKSTART GUIDE 6.5 Inches Resolution: 1280 x 800 Depth 0.6 Inch Factory HDMI 1/2-20 Service Use Input Threaded Only Mounting Audio Holes On Output All 4 Sides www.ikancorp.com 713-272-8822...
  • Page 3 D5-K1-N D5 Field Monitor Kit QUICKSTART GUIDE Standard DC Menu Scroll Menu Exit Function Wheel Button Keys Connector MENU EXIT HDMI C=0 M=25 Y=100 K=0 Pantone Code 130 C 3G-SDI Battery 3G-SDI Output Plate Lock Input Power On/Off Input Selection Button - SDI &...
  • Page 4 User1-5 Backlight 5-100 DSLR Auto Scaling Off / Full / 16:9 / 3:2 As an additional tool associated with the D5’s False Color feature, ikan’s System Reset exclusive Adjustable Under Exposure and Over Exposed Waning feature Return gives the operator full control of the D5 False Color brightness values. By...
