Ikan TRD Beholder MS1 Manual

Camera stabilizer
Hide thumbs Also See for TRD Beholder MS1:

Advertisement

Table of Contents

TRD Beholder MS1
Camera Stabilizer

Advertisement

Table of Contents
loading

Related Manuals for Ikan TRD Beholder MS1

Summary of Contents for Ikan TRD Beholder MS1

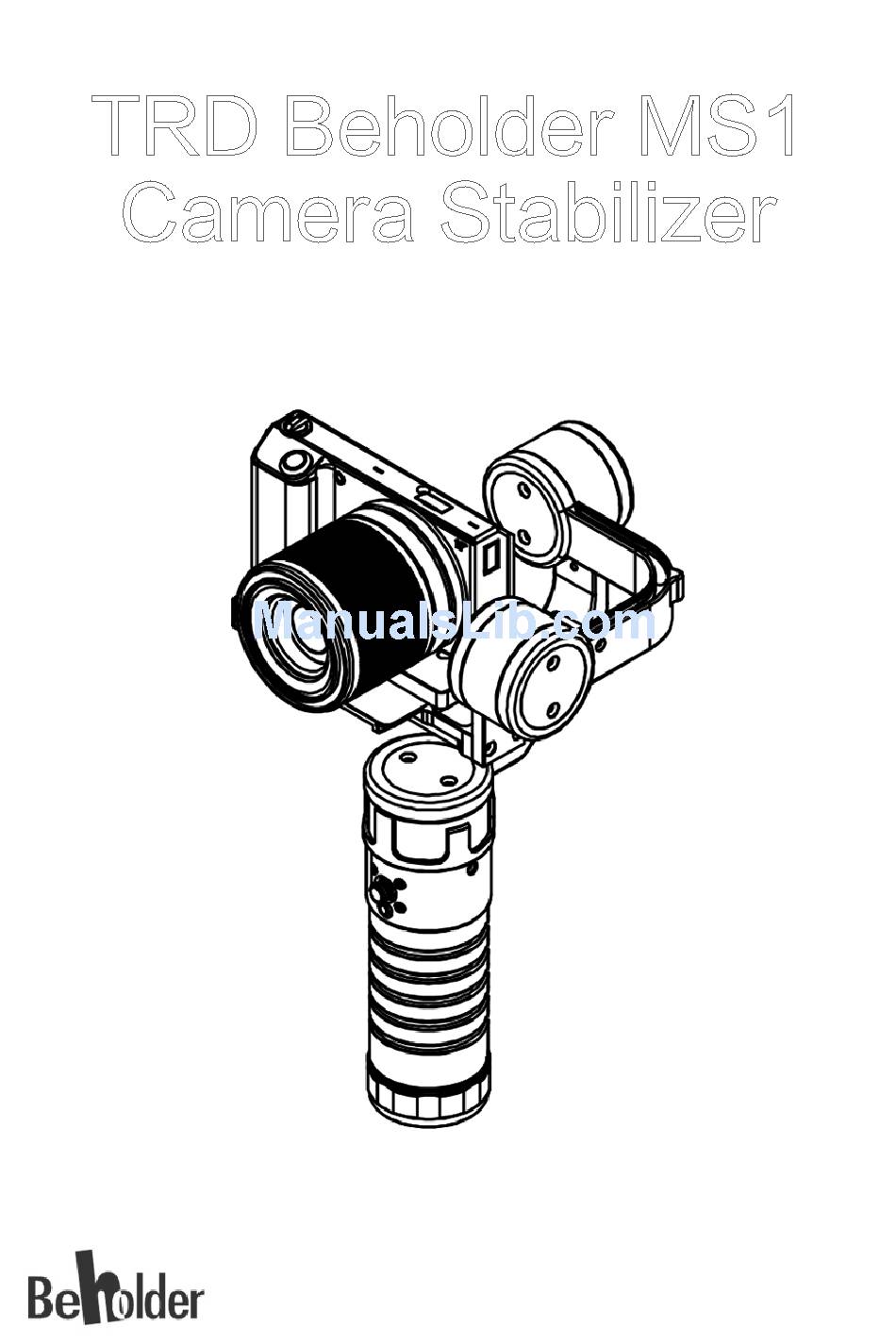

  • Page 1 TRD Beholder MS1 Camera Stabilizer...

  • Page 2: Table Of Contents

    Table of Content Product Description Kit Includes Battery Setup and Charging Camera Setup and Balancing How to Use Other Features Supported Cameras Attention Licensing and Trade Mark Specifications Product Description The Beholder MS1 Camera Stabilizer is designed to support professional videographers of all levels. The stabilizer is easy to use and small enough to travel with.

  • Page 3: Kit Includes

    Kit Includes Battery Holder Three Batteries 18650 Micro USB Cable Adapter plate Quick Release Plate Two 1/4 Lanyard USB- LED Light Battery Setup and Charging Battery Setup a. Install batteries positive side up into battery holder. Connect the Micro USB cable to the Battery Holder Micro USB port. Connect USB cable to 1.5- 2 amp power supply.
  • Page 4 Battery Holder a. Battery Holder positive side up. b. Insert Battery Holder into handle, positive side first. c. Screw on battery cap and make sure the cap is secured snuggly. © 2015 Beholder All Rights Reserved...

  • Page 5: Camera Setup And Balancing

    Camera Setup and Balancing 1. Attach the quick release plate as shown with the longest slide pointing out towards the direction of the lens. Snuggly tighten the camera screw. 2. Attach the camera with plate to stabilizer. Adjust the camera’s position so that the gimbal remains level.

  • Page 6: How To Use

    Installation for small cameras Camera less than 400g such as Sony NEX5R and BMPCC will need an adapter plate. The adapter plate will allow cameras that cannot mount properly to be mounted on the gimbal. Installation steps: 1. Put the adapter plate on the camera, then tighten the screw.

  • Page 7: Other Features

    c. Press and hold the joystick for 3 seconds to calibrate the gyro. The gyro controls the horizontal level. During calibration the MS1 must not be touched and the gimbal must be level.(When the system Automatic movement or unbalance use this function. Just keep the system steady on the table during the calibration process and prevent any movement or vibration.) d.

  • Page 8: Attention

    Attention A. It need you Gyro Calibration if your MS1 Automatic movement or unbalance. Gyro calibration: Place the MS1 on a flat surface. Make sure the camera is balanced in the gimbal. Press and hold the joystick in for 3 sec. If balance is not correct try again calibrating. Keep the MS1 steady on the table during the calibration process and prevent any movement or vibration.

  • Page 9: Specifications

    Specifications: Height: 268mm 10.5 Inches. Length: 168mm 6.6 Inches. Width: 123mm 4.8 Inches. Weight W/O Battery: 720g Weight W Battery: 860g Unit with Packaging: 1580g 390x200x100mm, Packaging Dimensions: 15.4x7.9x3.9 Inches. Maximum Supported 1000g Camera Weight： Sony A7S, NEX series, Panasonic DMC, GH4, Supported Camera Models: BMPCC, RX100, A6000, Canon G7, A7ii, and more.
