IFD576-KIT-CH

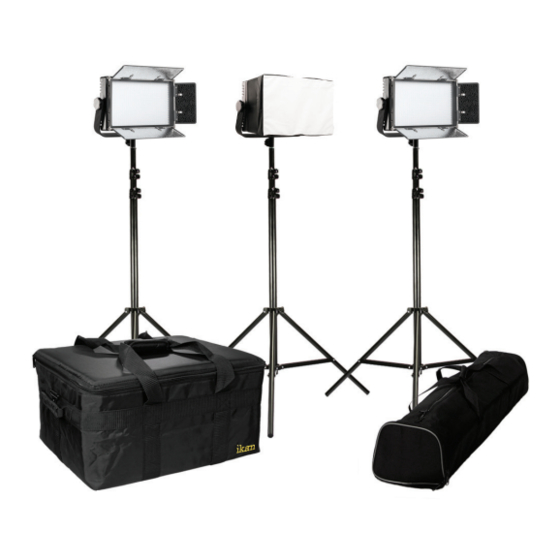

Kit with 3 x IFD576 LED Studio Lights & Chimera Soft Boxes
What's Included
3 x IFB576 Light
3 x Gold Mount Battery Plate (attached)
3 x Gold to V-Mount Adapter Plate
3 x Diffuser
3 x HD Stand
3 x Remote Control
1 x Light Bag
1 x Stand Bag
3 x Chimera Soft Box
www.ikancorp.com
support@ikancorp.com
QUICK START GUIDE
© 2015 ikan Corporation. All rights Reserved
CHECKED BY
713.272.8822
713.272.8822
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikan IFD576-KIT-CH
Summary of Contents for Ikan IFD576-KIT-CH
- Page 1 3 x Gold to V-Mount Adapter Plate 3 x Diffuser 3 x HD Stand 3 x Remote Control CHECKED BY 1 x Light Bag 1 x Stand Bag 3 x Chimera Soft Box www.ikancorp.com 713.272.8822 713.272.8822 support@ikancorp.com © 2015 ikan Corporation. All rights Reserved...
-
Page 2: Getting Started
IFD576-KIT-CH Getting Started 1. Connect the included AC Adapter to power the IFD576 light. 2. Turn the light on/off with the power switch. 3. Control the amount of light with the dimmer knob. Adjust the intensity of the light by turning the dimmer knob clock-wise to increase the intensity, and counter clock-wise to reduce it. -
Page 3: Specifications
IFD576-KIT-CH Specifications Specs Beam Angle 60° Build Material Heavy Duty Plastic Control Local Knob Control & Touchscreen Cooling System Passive Cooling Dimming 10-100% Fixture Size 14 x 8.5 x 2.75 In. Fixture Weight 4 lbs Focusing Foot Candles 520.6 Head Type... - Page 4 Connecting Gold-Mount to V-Mount IFD576 Model: LED576AL Operating Volts: DC 12V - 14.8 V www.ikancorp.com Pin numberS ignal +12V POWER MADE IN CHINA Do not block the vents or look directly 10%Y 100% at the LED lights while its on. www.ikancorp.com...
- Page 5 Connecting Chimera Soft Boxes Gel Clips 1. Chimera folding frame fits over the outer 2. Chimera folding frame fits over the Gel Clips sides of the light and attach to the gel clips. to hold the chimera on the face of the light. Diffusion Panel 3.
- Page 6 (*Even if the product is still within the warranty period.) • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2015 ikan Corporation. All rights reserved www.ikancorp.com...
