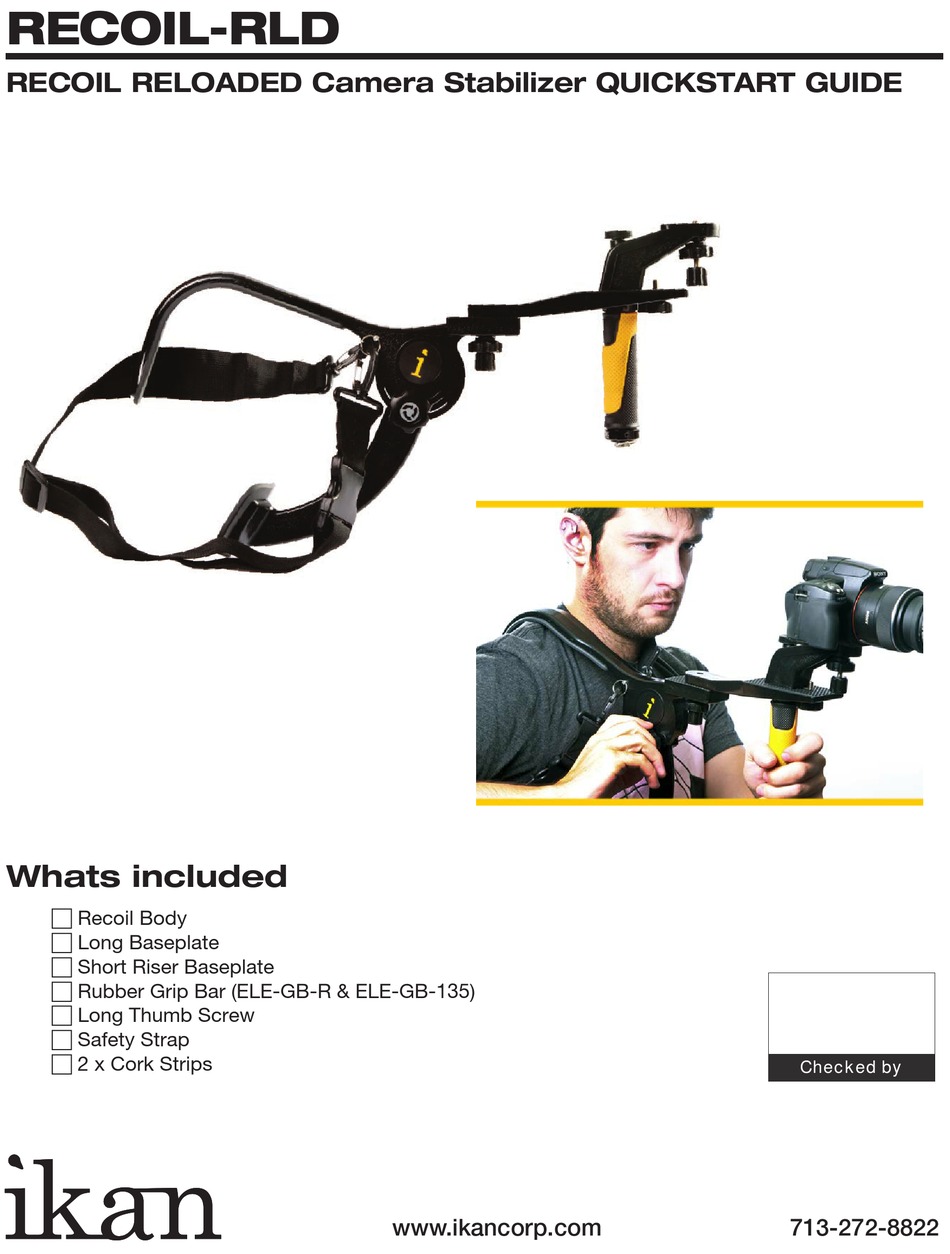

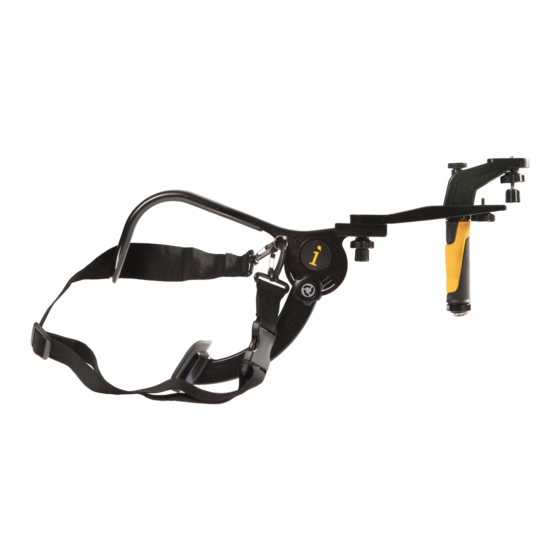

- Page 1 RECOIL-RLD RECOIL RELOADED Camera Stabilizer QUICKSTART GUIDE Whats included Recoil Body Long Baseplate Short Riser Baseplate Rubber Grip Bar (ELE-GB-R & ELE-GB-135) Long Thumb Screw Safety Strap 2 x Cork Strips Checked by www.ikancorp.com...
- Page 2 RECOIL-RLD RECOIL RELOADED Camera Stabilizer QUICKSTART GUIDE For smaller cameras, the Short Riser Baseplate and Grip Bar can be added as shown. Long Thumb Screw Short Riser Baseplate Long Baseplate Rubber Grip Bar DSLR camera mounted on the Short Riser Baseplate with Rubber Grip Bar.
- Page 3 RECOIL-RLD RECOIL RELOADED Camera Stabilizer QUICKSTART GUIDE Chest plate can be folded or extended as necessary to accommodate different body sizes. Adjustable tension knob controls the amount of give in the plate. Turn clockwise to tighten or counter clockwise to loosen – When transporting, fold the chest plate into the shoulder pad and tighten the tension knob.
