directory at the top level. The controller's file system treats the card as a directory named
sdcard0.
8. Copy the renamed strategy file to the

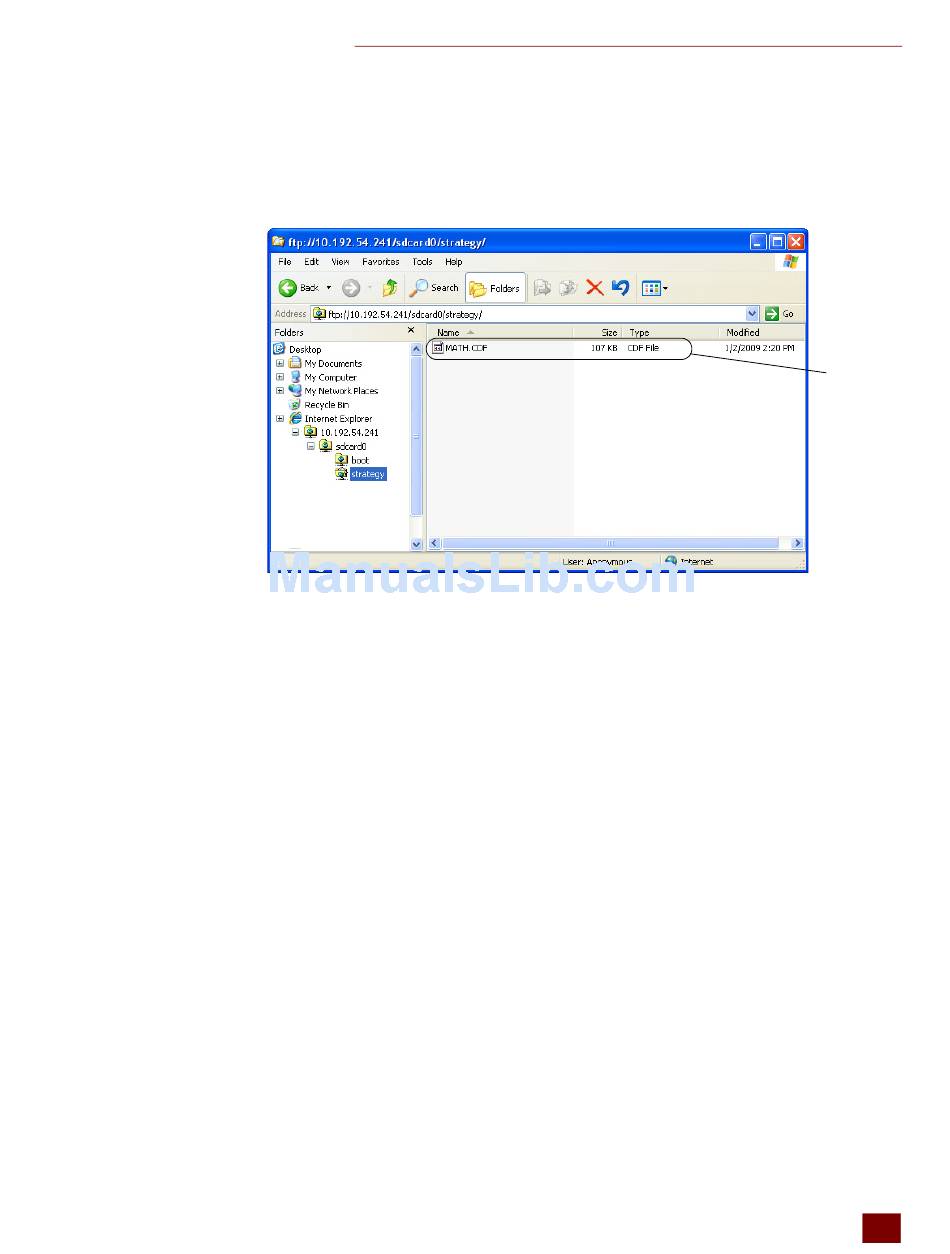

Here's an example of a strategy file in the strategy directory, looking at the card in the controller:
9. (Firmware 9.0a or newer and loader 6.0a or newer) If you plan to save the strategy to flash
memory, delete the following files and directories if they are on the card:
Command file and firmware files
/sdcard0/boot
/sdcard0/opto22/config
NOTE: If the controller has firmware 9.0a or newer and a loader version older than 6.0a, you cannot
save the strategy from the card to flash memory unless you use PAC Manager. To check the version on
your controller, see page
10. Choose how you want to use the card with the controller:
– Turn off the controller, put the card in, and turn the controller back on. The
controller will load the strategy from the card (verifying the signature if it is an .ssd file),
switch to the new strategy if you're using background downloading, and run the new
strategy if you set it to autorun. If it's not set to autorun, you have to start the strategy
manually using PAC Control or PAC Terminal. For firmware versions older than 9.0a, if you
checked the Save to flash memory box, the strategy is saved to flash. For firmware 9.0a or
newer, see step 11.
– Put the card in while the controller is running. The controller will check that the
stratregy differs from the existing one, verify signature on an .ssd file, load the strategy,
switch to the new strategy if you're using background downloading, and then run the
strategy only if the existing strategy was running when you put the card in. If the existing
CHAPTER 4: MAINTENANCE AND TROUBLESHOOTING
sdcard0/strategy
51.
SNAP PAC R-Series Controller User's Guide
directory on the microSD card.
Strategy file
