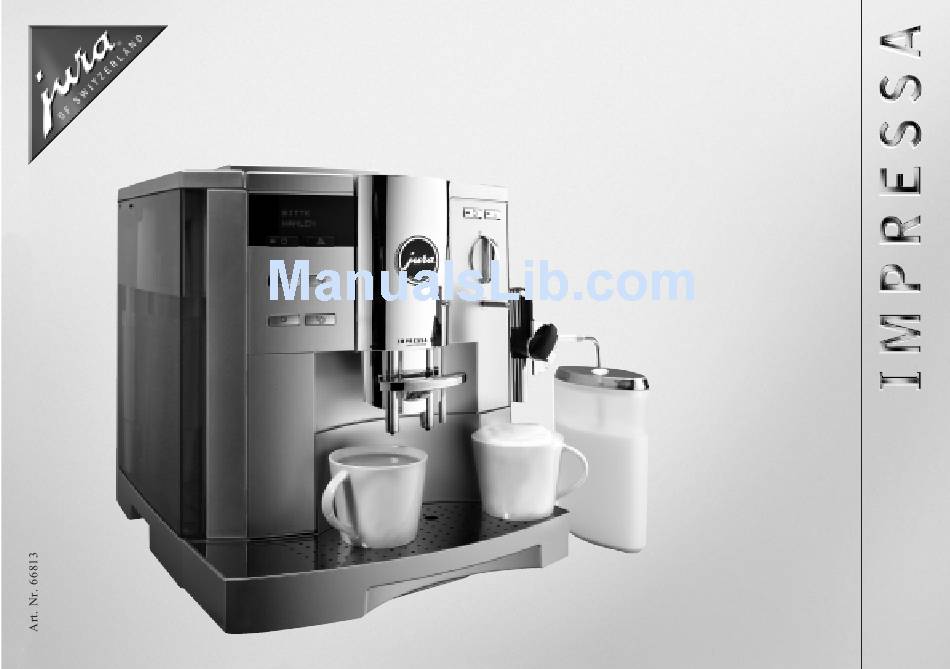

- Page 1 IMPRESSA S9/S7 avantgarde Instructions for use 10/06...
- Page 2 Legend: DISPLAY: serves as information. DISPLAY: please follow the instructions shown. JURA Elektroapparate AG, CH-4626 Niederbuchsiten, = Note = Important = Tip Internet http://www.jura.com...
- Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15...
- Page 4 Description of the machine 1. Drip tray 2. Drip grate 3. Programming door 4. Rotary Switch 5. Selection key for pre-ground coffee 6. Coffee à la Carte key 7. 1 Coffee key 8. 2 Coffees key 9. 1 Espresso key 10.
-
Page 5: Table Of Contents
Contents Maintenance ..........page 14 12.3 1. Safety information ..........page 6 12.4 Programming the amount of powder for coffee Warnings ..........page 6 and espressso..........page 14 Precautions..........page 6 12.5 Setting the amount of water for coffee, 2. Before you start using the IMPRESSA S9/S7 espresso and coffee à... -
Page 6: Safety Information
Should you need more information or meet with particular prob- etc.), always turn off the power switch. lems not specified in these operating instructions in sufficient detail, please contact JURA Elektroapparate AG directly or your Always turn off the power switch before cleaning the machine. local authorized dealer. -
Page 7: Filling The Water Tank
Open the lid of the bean tank (16). 2.3 Filling the water tank To adjust the grinding degree, turn the Rotary Switch (Fig. 2) to Only use fresh, cold water. Never fill the water tank with the required position. milk, mineral water or other liquids. The smaller the dots, the finer the grind The larger the dots, the coarser the grind Take out the water tank and thoroughly rinse it out with cold tap... -
Page 8: Cup Illumination
Place a receptacle under the Professional Cappuccino Frother 4. Adjusting your machine to the water hardness (24) and press one of the Steam keys The IMPRESSA heats up water. As a result, calcification The system now fills up automatically. A little water will leak occurs during normal use. -
Page 9: Using A Claris Plus Filter Cartridge
Now turn the Rotary Switch (4) until the following message is Fill the water tank (14) with cold, fresh tap water and place it displayed: back into the machine. EXIT Place a sufficiently large receptacle (min. 0.5 litres) under the Professional Cappuccino Frother (24) and press one of the Steam Now press the Rotary Switch (4) to leave the programming mode. -
Page 10: Rinsing The Machine
Place a sufficiently large receptacle (min. 0.5 litres) under the 1 ESPRESSO (example) Professional Cappuccino Frother (24) and press one of the Steam NORMAL (example) keys to start the filter rinsing process. The coffee brewing process stops automatically as soon as the FILTER RINSING set amount of water has run through. -
Page 11: Making Coffee À La Carte
The coffee brewing process stops automatically as soon as the A LA CARTE set amount of water has run through. XSTRONG (example) SELECT PRODUCT The coffee brewing process stops automatically as soon as the set amount of water has run through. To stop the brewing process prematurely, press any of the SELECT PRODUCT product keys. -
Page 12: Frothing Milk
Press the Steam Portion key The Professional Cappuccino Frother is best cleaned using STEAM PORTION the JURA Auto-Cappuccino cleaner. Please contact an au- The machine will froth or heat milk according to the time you thorized dealer. We recommend cleaning these devices daily. -
Page 13: Switching The Impressa S9/S7 Avantgarde Off
Dip the milk pipe into the second receptacle containing the 12. Programming Auto-Cappuccino Cleaner. The IMPRESSA leaves the factory with a number of default Press the Extended Steam draw-off button . settings that allow you to make coffee without having to pro- As soon as the liquid has flown through, press the Extended gram the machine first. -
Page 14: Maintenance
12.3 Maintenance SELECT PRODUCT Open the programming door (3). Press the Rotary Switch (4) You can activate the following maintenance functions from this until you hear an acoustic signal. program item: FILTER RINSE MACHINE, CLEAN MACHINE, DE-SCALE MACHINE, NO or YES CHANGE FILTER. -
Page 15: Setting The Amount Of Water For Coffee
12.5 Setting the amount of water for coffee, 12.6 Programming the temperature for coffee, espresso and coffee à la carte espresso and coffee à la carte The system’s basic settings include pre-defined amounts of water You can adjust the temperature for each type of coffee sepa- (coffee 130 ml, espresso 60 ml, 2 coffees 260 ml, coffee à... -
Page 16: Programming The Water Portion
12.7 Programming the water portion FILTER NO or YES The system’s basic settings include a pre-defined amount of water Turn the Rotary Switch (4) until the following message is dis- (225 ml). However, this amount can be modified as required. played: SELECT PRODUCT STEAM... -
Page 17: Setting The Time
Now press the Rotary Switch (4) to start programming. Select this setting if you make mostly black coffees and are prepared to wait for approx. 1 minute before being able to ECONOMY draw steam. MODE - Now turn the Rotary Switch (4) until the required economy Economy mode 2 mode is displayed. -
Page 18: Programming The Automatic Switch-On Time
Now press the Rotary Switch (4) to start programming. TIME 13:00 (example) UNIT ON —:— Press the Rotary Switch (4) to confirm the hours and to activate the minutes. Turn the Rotary Switch (4) to set the hours. TIME UNIT ON 13:00 07:00 (example) Turn the Rotary Switch (4) to set the minutes. -
Page 19: Programming The Language
Turn the Rotary Switch (4) until the following message is dis- SPRACHE played: DEUTSCH OFF AFTER Turn the Rotary Switch (4) to set the language. 5 HRS LANGUAGE Now press the Rotary Switch (4) to start programming. ENGLISH (example) OFF AFTER Confirm your selection by pressing the Rotary Switch (4). -
Page 20: Information
Turn the Rotary Switch (4) to change the time format. Now press the Rotary Switch (4) to access the Information menu. DISPLAY AM / PM / ML TOTAL 1000 (example) Confirm your selection by pressing the Rotary Switch (4). Turn the Rotary Switch (4) to display how often you made 2 DISPLAY espressos, 1 coffee, 2 coffees, coffee à... -
Page 21: Maintenance
13. Maintenance 13.3 Emptying the drip tray EMPTY 13.1 Filling the water tank TRAY FILL WATER TANK If this information is displayed, the machine will no longer dispense coffee or steam, and the tray must be emptied. If this information is displayed, the machine will no longer Carefully take out the drip tray (1) –... -
Page 22: Removing Stones From The Grinding Gear
13.6 Removing stones from the grinding gear After another 30 products the display will change. You should run the cleaning cycle now (see Chapter 15). Switch the machine off using the ON / OFF key (11). Turn the power switch (27) off. SELECT PRODUCT / CLEAN NOW Open the lid of the bean tank (16) and remove the aroma preser-... -
Page 23: General Cleaning Instructions
When the process has been completed, the IMPRESSA switches process takes approx.15 minutes. itself off. Please only use original JURA cleaning tablets: their formula The display will read “FILL SYSTEM / PRESS STEAM” next is especially tailored to JURA coffee machines. Please note time you switch the machine on. -
Page 24: Decalcifying
Open the lid of the filler funnel for pre-ground coffee (17). Drop Please only use original JURA de-scaling tablets: their for- an original JURA cleaning tablet inside (Fig. 12) and close the mula is especially tailored to JURA coffee machines. Please lid. - Page 25 Completely dissolve the content of one blister (3 tablets) in a Thoroughly rinse out the water tank and fill it with fresh cold receptacle containing 0.6 litres of water, and pour the mixture into tap water. Then place it back into the IMPRESSA. the water tank.
-
Page 26: Disposal
16. Disposal Please dispose of old machines in an environmentally neutral manner Old machines contain valuable recyclable materials, which should be sent off for recycling. Therefore please dispose of old machines via suitable collection systems. 17. Tips for perfect coffee Height-adjustable coffee spout (18) You can adjust the height of the coffee spout to the size of your cups. -
Page 27: Problems
18. Problems Problem Cause Remedy Grinding gear makes a very loud noise Foreign body in the grinding gear Please refer to Chapter 14.6 Too little froth when frothing milk Professional Cappuccino Frother clogged Clean frother (Chapter 11.5) Coffee only drips from the coffee spout Grinding degree too fine Adjust grinding gear to coarser grind Pre-ground coffee too fine... -
Page 28: Legal Information
Economy Mode 2 power consumption: 15 Wh agreement, consent or legal relationship. Any obligations to be fulfilled by JURA Elektroapparate AG are stipulated in the corre- Pump pressure: static max. 15 bar sponding purchase contract which also contains the full and solely Water tank: 2.7 litres...
