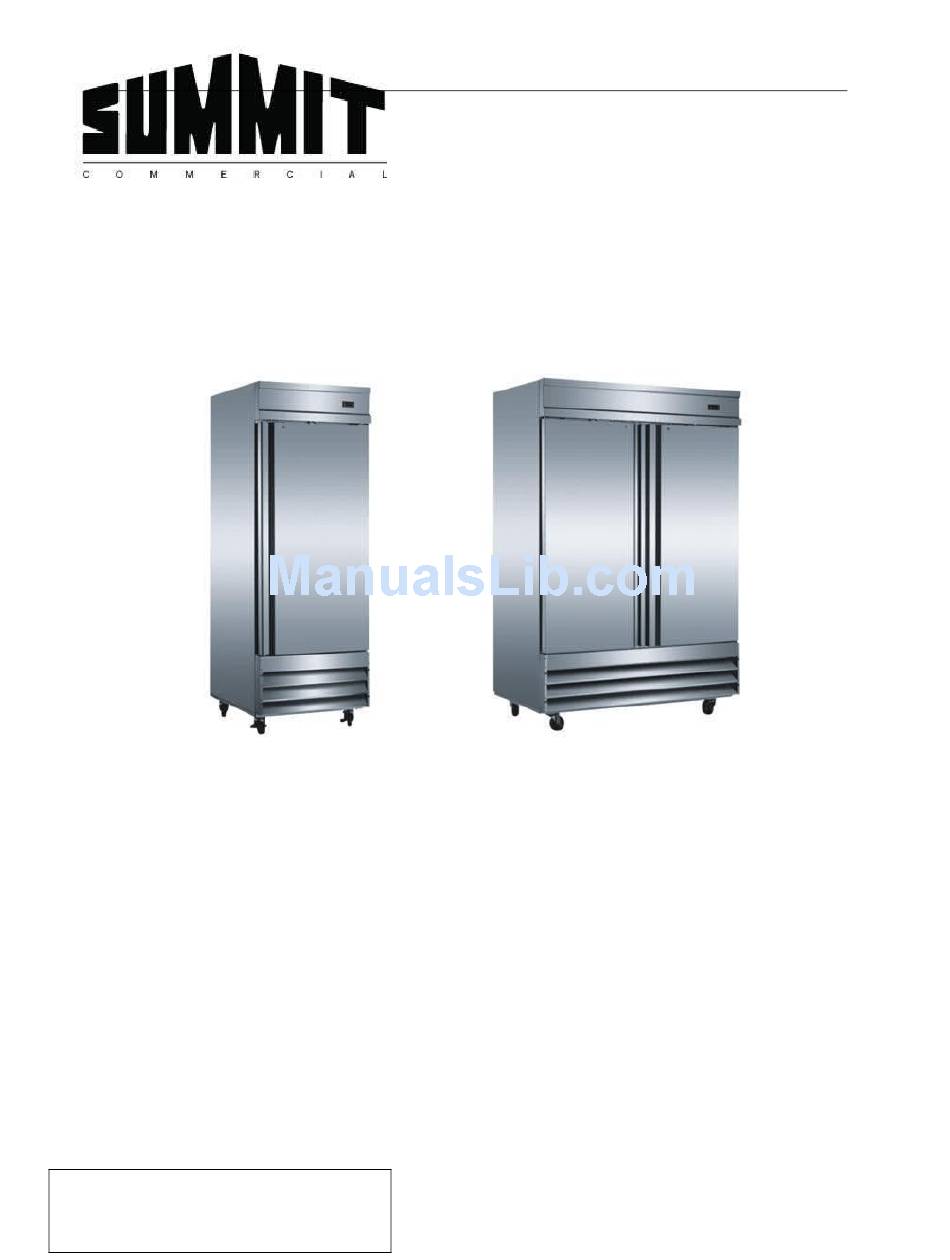

COMMERCIAL REACH-IN
REFRIGERATORS AND FREEZERS

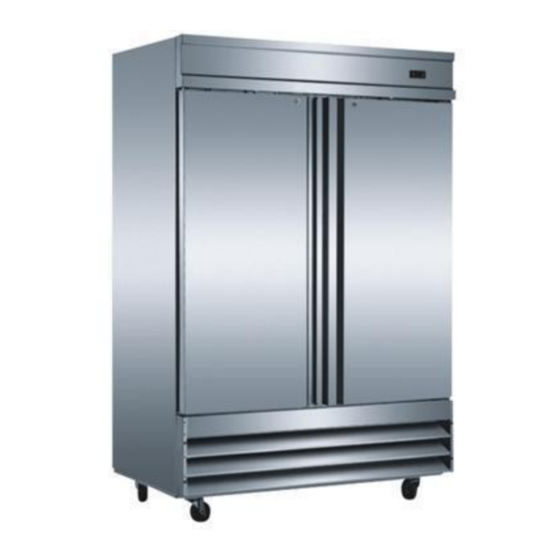

Refrigerator Models: SCRR230 and SCRR490
Freezer Models: SCFF235 and SCFF495
USER'S MANUAL
Please read this manual thoroughly prior to equipment set-up,
operation and maintenance.
FELIX STORCH, INC.
Write Serial No. (on back of unit) here:
Summit Appliance Division
770 Garrison Avenue
_______________________________
Bronx, New York 10474
__
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit SCRR230
Summary of Contents for Summit SCRR230
-
Page 1: Refrigerators And Freezers
COMMERCIAL REACH-IN REFRIGERATORS AND FREEZERS Refrigerator Models: SCRR230 and SCRR490 Freezer Models: SCFF235 and SCFF495 USER'S MANUAL Please read this manual thoroughly prior to equipment set-up, operation and maintenance. FELIX STORCH, INC. Write Serial No. (on back of unit) here:... -
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety ...................2 Important Safeguards ................3 - 4 Technical Information ...................5 Installation .....................6 Cabinet Location Guidelines Electrical Connection Operation ....................7 - 8 Temperature Controller ................7 Refrigerator Light..................7 Defrosting .....................7 LEDs .....................8 Cleaning and Maintenance ..............8 - 9 Cleaning the Exterior of the Unit ............8 Cleaning the Interior of the Unit ............8 Cleaning the Condenser Coil ...............8... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before the appliance is used, it must be properly positioned and installed described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following: Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord. - Page 5 with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. Do not kink or pinch the power supply cord of the appliance. The size of the fuse (or circuit breaker) should be 15 amperes.
-
Page 6: Technical Information
TECHNICAL INFORMATION Model SCRR230 SCRR490 SCFF235 SCFF495 Description 1-door 2-door 1-door freezer 2-door freezer refrigerator refrigerator Temperature 32 to 50°F 32 to 50°F -8 to 0°F -8 to 0°F Range (0 to 10°C) (0 to 10°C) (-22 to -18°C) (-22 to -18°C) Unit Dimensions 29"W x 32.2"D... -
Page 7: Installation
INSTALLATION IMPORTANT! PLEASE READ BEFORE INSTALLATION If the unit has recently been transported, let it stand upright for a minimum of 24 hours before plugging it in. Be sure there is proper ventilation around the unit in the area where it will operate. -
Page 8: Operation
Set the shelves that come with the unit to fit your needs. Do not leave the unit door open for long periods of time. For the most efficient operation, close the door immediately after use. Temperature Controller: For refrigerators SCRR230 For freezers SCFF235 and SCRR490 and SCFF495 The digital temperature controller is located on the front of the unit, above the door. -
Page 10: Leds
LEDs: The Refrigerant LED is lit during refrigeration (compressor is operating), and will be off when the cabinet temperature matches the set temperature. The Defrost LED will be lit during defrosting, and will be off when defrosting stops. CLEANING AND MAINTENANCE WARNING! Disconnect power cord before cleaning any parts of the unit. -
Page 11: Cleaning The Fan Blades And Motor
We recommend cleaning the condenser coil and fins at least once a month. Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Brush the condenser fins from top to bottom, not side to side. After cleaning, straighten any bent condenser fins with a fin comb. Cleaning the Fan Blades and Motor: If necessary, clean the fan blades and motor with a soft cloth. - Page 12 Do not attempt to alter or tamper with the electrical cord.
-
Page 13: Troubleshooting
TROUBLESHOOTING Before requesting service on your unit, please check the following points. Note that this guide serves only as a reference for solutions to common problems. Symptom Possible Cause Corrective Action Replace fuse or reset circuit breaker. Compressor Fuse blown or circuit breaker not running tripped Plug in power cord. - Page 14 noisy Be sure tubing is free from contact with Tubing vibration other tubing or components.
-
Page 15: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. - Page 16 SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. FELIX STORCH, INC. 770 Garrison Avenue Bronx, NY 10474 For parts and accessory ordering, Phone: (718) 893-3900 troubleshooting and helpful hints, visit: Fax: (718) 842-3093 www.summitappliance.com/support www.summitappliance.com Printed in China...
