1.9 - Bluetooth Radio Operation

1.9.1 - Introduction

The CR3500 features a Bluetooth® wireless radio. The radio allows for point-to-point wireless communication with other
Bluetooth devices that support serial port protocol (SPP). If keyboard entry is necessary, Code XML Router will need to be
installed. The following guide will give you general instructions on connecting your CR3500 to a desktop or laptop computer
with a Bluetooth radio.
Connecting With A QuickConnect Code
The easiest way to connect to a Bluetooth device is to visit the Code website and create a QuickConnect Code that is
specifi c to your device (Figure 1.21). This code will link your CR3500 directly to the desired Bluetooth device. To create a
QuickConnect Code, you will need to know the Bluetooth address (often referred to as the BD_ADDR) of that device. You
can usually fi nd the 12-character Bluetooth address somewhere on the device near the device's serial number (see Figure
1.22).

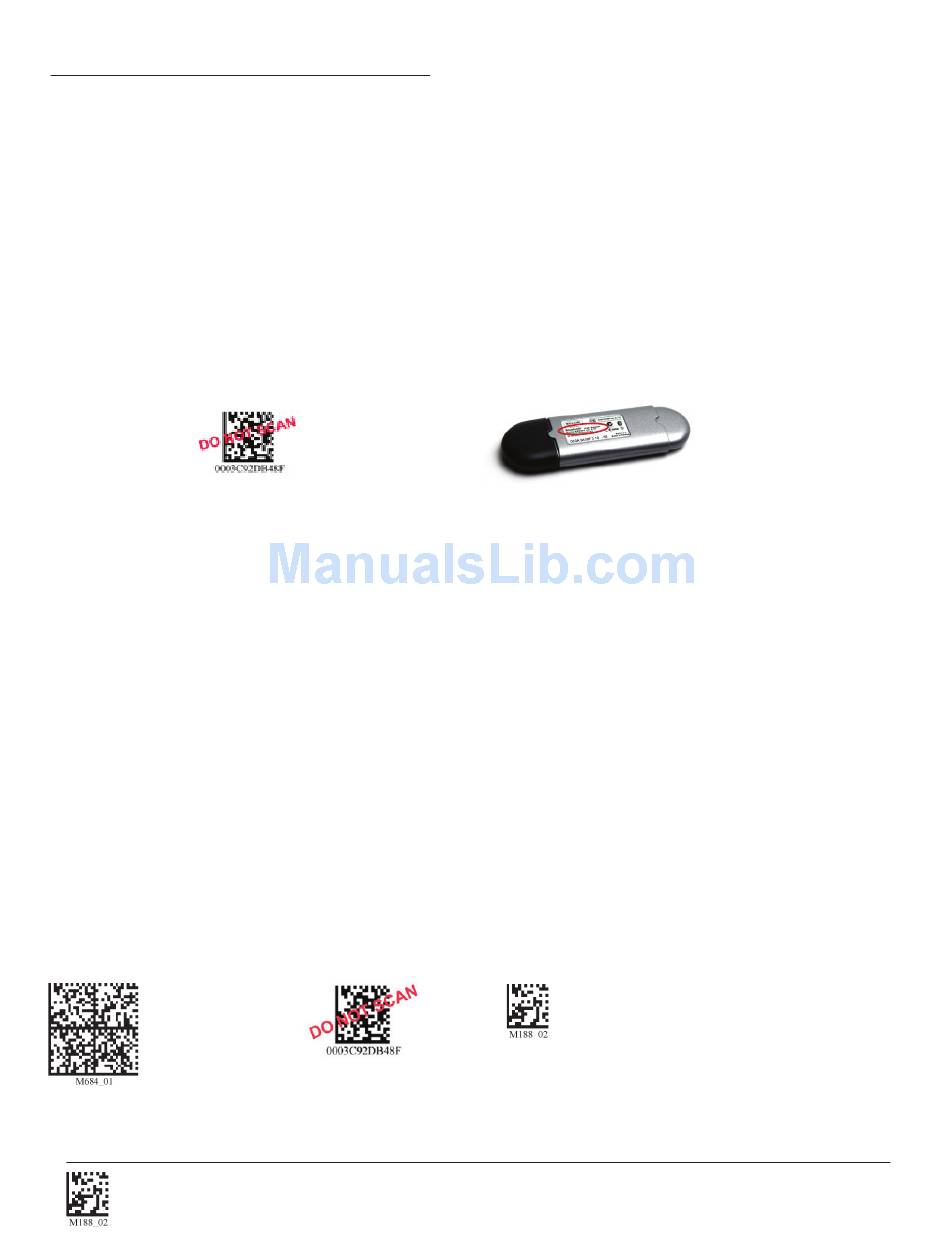

Figure 1.21
Figure 1.22
If you purchased a CodeXML Bluetooth Modem or a Belkin® Bluetooth adapter from Code or from an authorized distributor,
a QuickConnect Code was included. If you bought a Bluetooth adapter separately and wish to create a QuickConnect Code,
please visit Code's web site at: http://www.codecorp.com/bdaddr.php.
Important Note: You will need to locate the Communications (COM) Port assigned to the Bluetooth serial port protocol.
While installing the Bluetooth Confi guration Manager Software that was included with your Bluetooth adapter, make sure to
note the Communications (COM) Port number the software assigned for the adapter (e.g., COM 10). This is the COM Port
through which the CR3500 will connect.
To connect your reader, use the following steps:
1. Power on the CR3500 reader by pressing one of the red buttons for one second to power on the reader.
2. Scan the Reset to RF Factory Defaults Code (M684_01).
3. Scan the Quick Connect Code you receieved or created from Code's website.
4. The CR3500 will automatically connect to the computer. By default, the CR3500 will beep once after it connects
and beep four times in a row if it did not connect.
5. Scan the Save Settings Code (M188_02) if you want to save the wireless connection settings to the CR3500 so
that the CR3500 will automatically try to connect wirelessly the next time it is powered on.
Example:
Reset to RF Factory Defaults QuickConnect Save Settings
C004387_03_CR3500_User_Manual - 14
Save Settings
