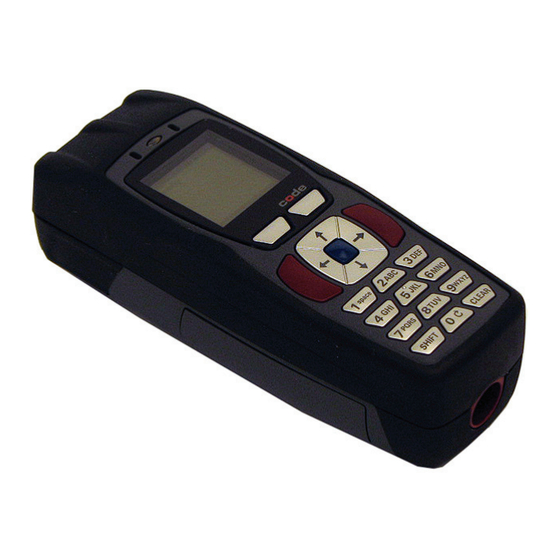

Code Reader CR3500 User Manual
Hide thumbs
Also See for Code Reader CR3500:
- Quick start manual (2 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Code Code Reader CR3500
Summary of Contents for Code Code Reader CR3500
-

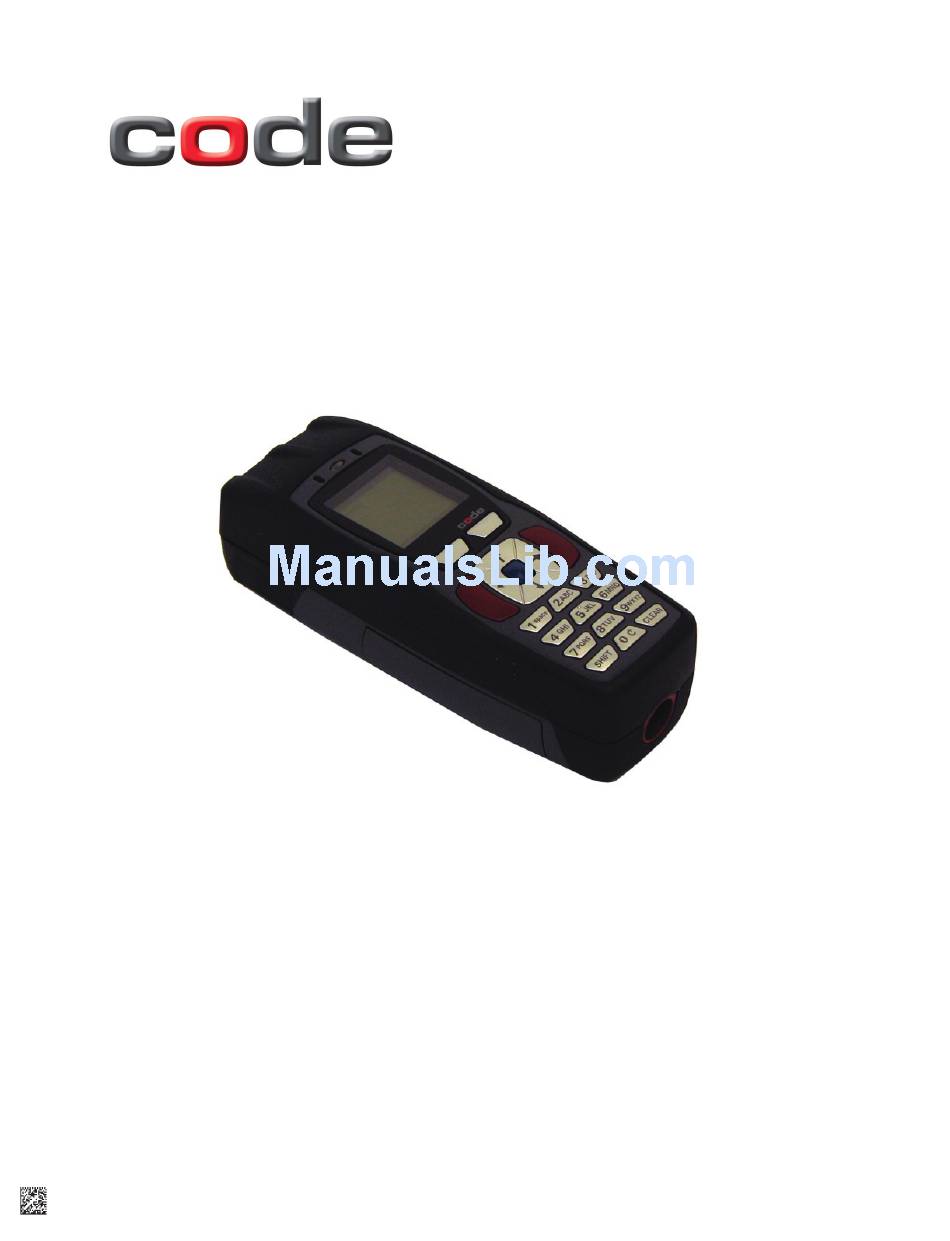

Page 1: Code Reader 3500
User Manual Code Reader 3500 ™ Manual Version 3 Release Date: 1/22/2009 C004387_03_CR3500_ User_Manual Save Settings C004387_03_CR3500_usermanual... -
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The Code Reader 3500 has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter. - Page 3 Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifi...
-
Page 4: Table Of Contents
1.7 - Batch Operation ........................6 1.7.1 - Introduction ........................6 1.8 - Cabled Operation ........................8 1.8.2 - CR3500 as a USB Keyboard ..................9 1.8.2.1 - Addional USB Communication Settings ............. 9 1.8.2.2 - Keyboard Support .................... 10 1.8.3 - PS/2 Cable Installation Guide ..................11... - Page 5 2.11.2 - Continuous Scan - Trigger Delays ................34 2.11.3 - Continuous Scan - Duplicate Scan Suppression ............34 2.12 - Motion Detection Scan Settings ..................34 Chapter 3 - CR3500 Programming: Symbology Settings ............. 35 3.1 - Aztec Symbology ........................36 3.2 - Codabar Symbology ......................36 3.3 - Codablock F Symbology ......................
- Page 6 6.3 - Erase Prefi x and Suffi x Settings ................... 54 6.4 - Reader Text Commands....................... 54 Chapter 7 - CR3500: Maintenance and Troubleshooting ............. 55 7.1 - Reset Reader to Factory Defaults ..................56 7.2 - General Safety Information ....................56 7.3 - Warranty ..........................
-
Page 7: Chapter 1 - Getting Started
Chapter 1 - Getting Started C004387_03_CR3500_ User_Manual Save Settings... -
Page 8: Introduction
Code at (801) 495-2200. The standard CR3500 reader is shipped with a USB cable interface. The reader also features a 1950 mAH battery that must be installed in the reader at all times, unless a battery blank is being used. -
Page 9: Reader Battery Installation
Attaching and Detaching the Lithium Ion Battery The CR3500 can be purchased with a 1950 mAH Lithium Ion battery. To install battery, make sure the battery is in the correct position (fi gure 1.1). Place the plastic tab of the battery into the reader (fi gure 1.2). Push the battery in and slide the locking mechanism down (fi... -
Page 10: Keypad/Icon Overview
1.6 - Keypad/Icon Overview The chart below shows key/button functions. Description of Button Function Numeric Mode Upper Case Text Lower Case Text Symbol Mode Mode Mode Toggles between Toggles between Toggles between numeric Toggles between numeric characters, numeric characters, characters, upper case numeric characters, upper case text, lower upper case text, lower... - Page 11 Standard Bluetooth Reliability Mode (previously One Way Mode) – no acknowledgement required Additional Bluetooth Reliability Mode (previously Two Way Mode) – packetizedcommunication between a CR3500 and an application USB Downloader mode Keyboard mode – can be used as either USB keyboard or PS/2 keyboard input mode Virtual COM Port One Way mode Secure mode –...
-
Page 12: Batch Operation
The RS-232 cable is attached to host with power supply and the reader is in RS-232 Batch-Cable Detect (Default) mode. The CR3500’s dedicated batch memory is a minimum of 1MB. To determine the number of reads that may be stored, divide the average bytes of a scan into the total minimum memory. - Page 13 Data scanned will be sent, regardless of connection status. Data scanned in Cabled-No Power mode will be lost if the CR3500 is not connected to the serial cable - it will not buffer the data, unless Send &...
-
Page 14: Cabled Operation
1.8.1- Introduction The Code Reader 3500 (CR3500) is a Multi-Interface Unit (MIU) and is available with USB (6 ft. or 12 ft.), RS-232 and PS/2 cables. All of the cables are connected to the CR3500 with a 8-pin DIN connector (Figure 1.8). -
Page 15: Cr3500 As A Usb Keyboard
CR3500 and an application through the USB port. USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR3500 to function as a virtual COM port. To use the CR3500 in this mode, download the driver at www.codecorp.com/downloads.html. -
Page 16: Keyboard Support
1.8.2.1 - Addional USB Communication Settings (continued) Scan the following codes to set the appropriate USB communication setting: USB Keyboard USB Downloader USB Native Two Way Mode USB Virtual COM 1 Way Mode USB HID POS (Terminal ID 131) 1.8.2.2 - Keyboard Support Scan the following codes to set appropriate keyboard mapping: US English (Default) No Leading 0... -
Page 17: Ps/2 Cable Installation Guide
4. Now connect the male CR3500 PS/2 connector into the keyboard port on the computer (Figure 1.17). 5. Power on the computer. The CR3500 is powered by the PS/2 port and does not require a power supply. 6. Once properly connected, the CR3500 will power on and beep. -
Page 18: Rs-232 (Serial) Cable Installation Guide
Mode: RS-232 (Serial) One Way Mode Baud Rate: 57600 Stop Bits: 2 Data Bits: 8 Parity: None Warning: Code Corporation approved power adapter must be used. Reader failure due to use of incorrect power adapter will void warranties. C004387_03_CR3500_User_Manual - Save Settings... -
Page 19: Additional Rs-232 Communication Data Bit Settings
1.8.4.1 - Additional RS-232 Communication Data Bit Settings Scan the following codes to set the appropriate data bit: 7 Data Bits 8 Data Bits (Default) 1.8.4.2 - Additional RS-232 Communication Baud Rate Settings Scan the following codes to set the appropriate baud rate: 1200 2400 4800... -
Page 20: Bluetooth Radio Operation
The easiest way to connect to a Bluetooth device is to visit the Code website and create a QuickConnect Code that is specifi c to your device (Figure 1.21). This code will link your CR3500 directly to the desired Bluetooth device. To create a QuickConnect Code, you will need to know the Bluetooth address (often referred to as the BD_ADDR) of that device. - Page 21 Radio Range and Transferring Data The CR3500 radio is a Class 1 device. If connected to another Class 1 device the reader has roughly a 100 meter (300 feet) line of sight operating range. If connecting to a Class 2 or Class 3 device, the operating range may drop to match the lower range.
-
Page 22: Bluetooth Radio Auto Connect
1.9 - Bluetooth Radio Operation (Continued) Permanently Establishing a Connection Scan the Save Settings Code at the bottom of the page to make the RF settings (including which device to connect to) permanent on the reader: Disconnecting from the Device You may force disconnection by reading the disconnect code below (The CR3500 may not appear disconnected in the slave Bluetooth connection manager for 10 –... -
Page 23: Bluetooth Radio Time Out Settings
If the reader is saved in the proper RF communication mode, enabling this setting will allow the reader to automatically save the last device to which it was connected, removing the need to scan the save setting after scanning the QuickConnect code. Enable Auto Save... -
Page 24: Confi Guration For Belkin Bluetooth Manager Software (Version 1.4.2.10)
1.9.7 - Confi guration for Belkin Bluetooth Manager Software (Version 1.4.2.10) In this version of the Belkin Bluetooth Manager software, you must disable the authentication feature to connect a Code Reader 3500. Follow the steps below: Double click on the Bluetooth icon in the system tray. In the My Bluetooth Places Screen, select Advanced Confi... - Page 25 Your local service Bluetooth Serial Port profi le should now read “Not Required” Open the “Accessibility” Tab and verify that “All Devices” are allowed to connect (this is the default setting). You should now be able to connect your Code Reader 3500. C004387_03_CR3500_ User_Manual...
-
Page 26: Confi Guration For Toshiba Bluetooth Stack Instructions
1.9.8 - Confi guration for Toshiba Bluetooth Stack Instructions Navigate to the Control Panel and Open the Bluetooth Local COM Port Icon. Identify the Appropriate Com Port owned by the LocalCOM-Server[SerialPort(TOSHIBA LocalCOM)] Owner. Right Click on the Blutooth Manager Tray Icon and selection “Options”, you can Identify your Device Address here, in this example 00:1B:FC:EF:3F:79 C004387_03_CR3500_User_Manual - Save Settings... - Page 27 1.9.8 - Confi guration for Toshiba Bluetooth Stack Instructions (Continiued) Go to http://www.codecorp.com/bdaddr.php and create a QuickConnect code using the address from Step 3. Use the CodeXML Router/ 2-way applications section if CodeXML Router will be installed, or create a QuickConnect Code using the section for Serial Applications.
- Page 28 Uncheck the settings under the Security Setting of Serial Port (SPP). Install the Code XML Router Software to the Device on the Appropriate COM Port. Reboot the PC and then scan your QuickConnect code to connect. Please note that the Toshiba Stack does not allow a device to connect until the Com Port is opened.
-
Page 29: Confi Guration For Microsoft Bluetooth Stack Instructions
1.9.9 - Confi guration for Microsoft Bluetooth Stack Instructions Right click on the Microsoft Bluetooth Stack system tray icon, select “Open Bluetooth Settings”. Go to the “Hardware” tab and select the “Generic Bluetooth Radio” and then click “Properties”. Next select the “Advanced”... - Page 30 Bluetooth COM Port. Note the COM port number. Install the Code XML Router Software to the Device on the Appropriate COM Port. Reboot the PC and then scan your QuickConnect code to connect. Please note that the Window Stack does not allow a device to connect until the Com Port is opened.
-
Page 31: Installing Codexml Router Bluetooth Edition For Windows
1.9.10 - Installing CodeXML Router Bluetooth Edition for Windows Insert the Code Router Bluetooth Edition for Windows CD into your PC’s CD drive. The CD will automatically begin the installation process. When you get to the screen pictured below, please enter the CD Serial # Key found on the card included in the CD case. -
Page 32: Targeting And Reading Techniques
1.10 - Targeting and Reading Techniques The CR3500 utilizes digital camera technology to take a picture of a symbol. Once an image is captured, the CR3500 utilizes advanced decoding algorithms to extract data from the captured image. The CR3500 is available as a palm-held reader or users may purchase a handle (available in various types). -
Page 33: Imager Field Selection And Resolution
1.11 - Imager Field Selection and Resolution The CR3500’s dual fi eld optical system may be modifi ed based on your scanning environment. The 1.3 Million Pixel imager is divided into wide fi eld and high density decode zones. In each zone the resolution is 1024 x 640 pixels (see Figure 1.25). -
Page 34: Chapter 2 - Optimization And Trigger Programming
Chapter 2 - Optimization and Trigger Programming C004387_03_CR3500_User_Manual - Save Settings... -
Page 35: Introduction
2.1 - Introduction By defi ning if you are scanning large, small, high denisty or low density types of symbology(s), the CR3500 has options that will maximize decoding speed. The chart below shows options that will improve performance based on parameters listed in each box. -
Page 36: Global Trigger Optimization Matrix
2.2 - Global Trigger Optimization Matrix SXGA Both Fields High Density Field Wide Field 2.3 - Left Trigger Optimization Matrix SXGA Both Fields High Density Field Wide Field C004387_03_CR3500_User_Manual - Save Settings... -
Page 37: Left Trigger Programming
2.4 - Left Trigger Programming Scan the following codes to set the left trigger functionality: Left Trigger Take Picture 2.5 - Right Trigger Optimization Matrix SXGA Both Fields High Density Field Wide Field 2.6 - Right Trigger Programming Scan the following codes to set the right trigger functionality: Right Trigger Take Picture C004387_03_CR3500_ User_Manual Save Settings... -
Page 38: Handle Optimization Matrix
2.7 - Handle Optimization Matrix SXGA Both Fields High Density Field Wide Field 2.8 - Handle Trigger Programming Scan the following codes to turn continuous scanning on/off: Handle Trigger Take Picture C004387_03_CR3500_User_Manual - Save Settings... -
Page 39: Continuous Trigger Optimization Matrix
2.9 - Continuous Trigger Optimization Matrix SXGA Both Fields High Density Field Wide Field 2.10 - Continuous Scan Scan the following codes to turn continuous scanning on/off: Off (Default) C004387_03_CR3500_ User_Manual Save Settings... -
Page 40: Continuous Scan Settings
2.11 - Continuous Scan Settings 2.11.1 - Continuous Scan - Sleep Time Out Scan one of the codes below to set the amount of time a cabled CR3500 will operate in continuous scan mode before entering sleep mode: Cabled - 2 hours... -
Page 41: Chapter 3 - Cr3500 Programming: Symbology Settings
Chapter 3 - CR3500 Programming: Symbology Settings C004387_03_CR3500_ User_Manual Save Settings... -
Page 42: Aztec Symbology
Sample Codablock F Code Note: When Codablock F and Code 128 decoding are enabled, there is some danger of mistakenly decoding a damaged Codablock F symbol as a Code 128 symbol. Therefore, Code 128 decoding should be disabled when Codablock F decoding is enabled. -
Page 43: Code 39 Symbology
3.5 - Code 39 Symbology Scan the following codes to enable/disable Code 39 symbology settings: Code 39 On (Default) Code 39 Off Enable Checksum Disable Checksum (Default) Enable Checksum and Strip From Result Code 39 Extended Full ASCII On Code 39 Extended Full ASCII Off (Default) -
Page 44: Composite Symbologies
Code. GoCode has many signifi cant advantages over all common linear barcodes and 2-D symbols. Please contact Code for more information on the benefi ts of utilizing a private symbology. Sample GoCode... -
Page 45: Interleaved 2 Of 5 Symbology
Int 2 of 5 Two Digits Off Int 2 of 5 Four Digits On Int 2 of 5 Four Digits Off Sample Int 2 of 5 Code 3.12 - Maxicode Symbology Scan the following codes to enable/disable Maxicode symbology settings:... -
Page 46: Msi Plessy Symbology
NEC 2 of 5 Off 3.17 - Optical Character Recognition (OCR) The Code Reader can read Optical Character Recognition (OCR) texts. The following codes can be used to enable/disable this feature. Fonts supported include Passport, ISBN, Price, MICR13, and a user defi ned template:... -
Page 47: Pharmacode
All postal code default settings are OFF. Scan the following codes to enable the appropriate Postal symbology: Note: If you wish to change which Postal code is activated, you MUST fi rst scan the disable all postal codes sym- bol and then scan your desired symbology. -
Page 48: Gs1 Data Bar (Formerly Rss) Symbology
All GS1 Data Bar On All GS1 Data Bar Off (Default) Sample RSS Limited Code Sample RSS 14 Code Sample RSS 14 Truncated Code Sample RSS 14 Stacked Code 3.23 - Telepen Symbology Scan the following codes to enable/disable Telepen symbology settings:... -
Page 49: Chapter 4 - Reader Feedback And Special Settings
Chapter 4 - Reader Feedback and Special Settings C004387_03_CR3500_ User_Manual Save Settings... -
Page 50: Volume And Vibration Settings
4.2 - Code Readability Index The Readability Index provides a measurement of a specifi c symbol’s ease or diffi culty to be decoded by the CR3500. The Readability Index is specifi c to the CR3500, and should not be confused with a verifi cation quality measurement. -
Page 51: Backlight Intensity Settings
4.3 - Backlight Intensity Settings Scan the following codes to set the intensity of the CR3500’s backlight with High being the brightest and Low being the dimmest: Med - Default High 4.4 - Backlight Timeout Settings Scan the following codes to set the backlight settings:... -
Page 52: Reader Id And Firmware Version
XXX-XX+XX - Internal ID (not applicable) Xap/i3000300006040010002363A06D-SD+SQ Example: Note: Code will periodically release new fi rmware for CR3500 readers. For information on latest fi rmware versions, call Code at (801) 495-2200. To upgrade fi rmware, please visit our website at http://www.codecorp.com/codesupport/html and follow instructions provided. -
Page 53: Time Stamp Settings
4.9 - Time Stamp Settings CR3500 has a battery-powered real time clock embedded in the reader. When enabled, the time stamp will be a prefi x to the data. Time stamping continues until disabled. The time stamp will be shown in the following format: YYYY-MM-DD... -
Page 54: Chapter 5 - Advanced Decode Performance
Chapter 5 - Advanced Decode Performance C004387_03_CR3500_User_Manual - Save Settings... -
Page 55: Set Targeting Zone Tolerances
LED must be more centered in the symbol being read. Conversely, as the targeting tolerance gets larger there is less precision needed with the green LED. If there is more than one decodable code in the fi eld of the, the symbol closest to the targeting green LED will be decoded. -
Page 56: Windowing
By reducing the vertical window value of the imager to 200 pixels, 1-D codes are processed more quickly. Because only a horizontal strip of a 1-D code is needed to be decoded, using a narrow strip of the imager is all that is needed. The area above and below the 200 pixels, which is always in the center of the imager, is ignored. -
Page 57: Mirror Decoding
(Continued) Users may optimize the CR3500 decode zone if their application only requires one bar code format. If the size and density of the bar codes to be scanned are consistent, please select the setting below that best describes your environment. -
Page 58: Chapter 6 - Adding A Prefi X Or Suffi X And Reader Text Commands
Chapter 6 - Adding a Prefi x or Suffi x and Reader Text Commands C004387_03_CR3500_User_Manual - Save Settings... -
Page 59: Prefi X Settings
Prefi x - Carriage Return Line Feed (Serial) Note: If you require a special confi guration, please contact Code at (801) 495-2200 or email appeng@codecorp.com. 6.2 - Suffi x Settings If you scan the following codes, you may lose your current settings. Make sure to save settings on your reader before scanning the Suffi... -
Page 60: Erase Prefi X And Suffi X Settings
Erase Prefi x & Suffi x Data 6.4 - Reader Text Commands Enabling Reader Text Commands allows the CR3500 to accept text commands via RS-232 or RF communication. Scan the following codes to enable/disable reader text commands: Reader Text Commands On Reader Text Commands Off - Default Note: Text commands can only be sent to the reader when it is active. -
Page 61: Chapter 7 - Cr3500: Maintenance And Troubleshooting
Chapter 7 - CR3500: Maintenance and Troubleshooting C004387_03_CR3500_ User_Manual Save Settings... -
Page 62: Reset Reader To Factory Defaults
Voiding of the maintenance contract. Lithium Ion Battery - Warning: Charge the battery with Code cables ONLY. Do not open battery, dispose of in fi re, or short circuit - it may ignite, explode, leak, or get hot causing personal injury. -
Page 63: Warranty
Customer will pay for any pre-shipped replacement product in case it does not return the replaced product to Code within 7 days of receipt of the replacement product. The process for return and customer’s charges will be in accordance with Code’s Exchange Policy in effect at the time of the exchange. -
Page 64: Cr3500 Accessories
The CR3500 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR3500 uses CMOS technology that is much like a digital camera.
