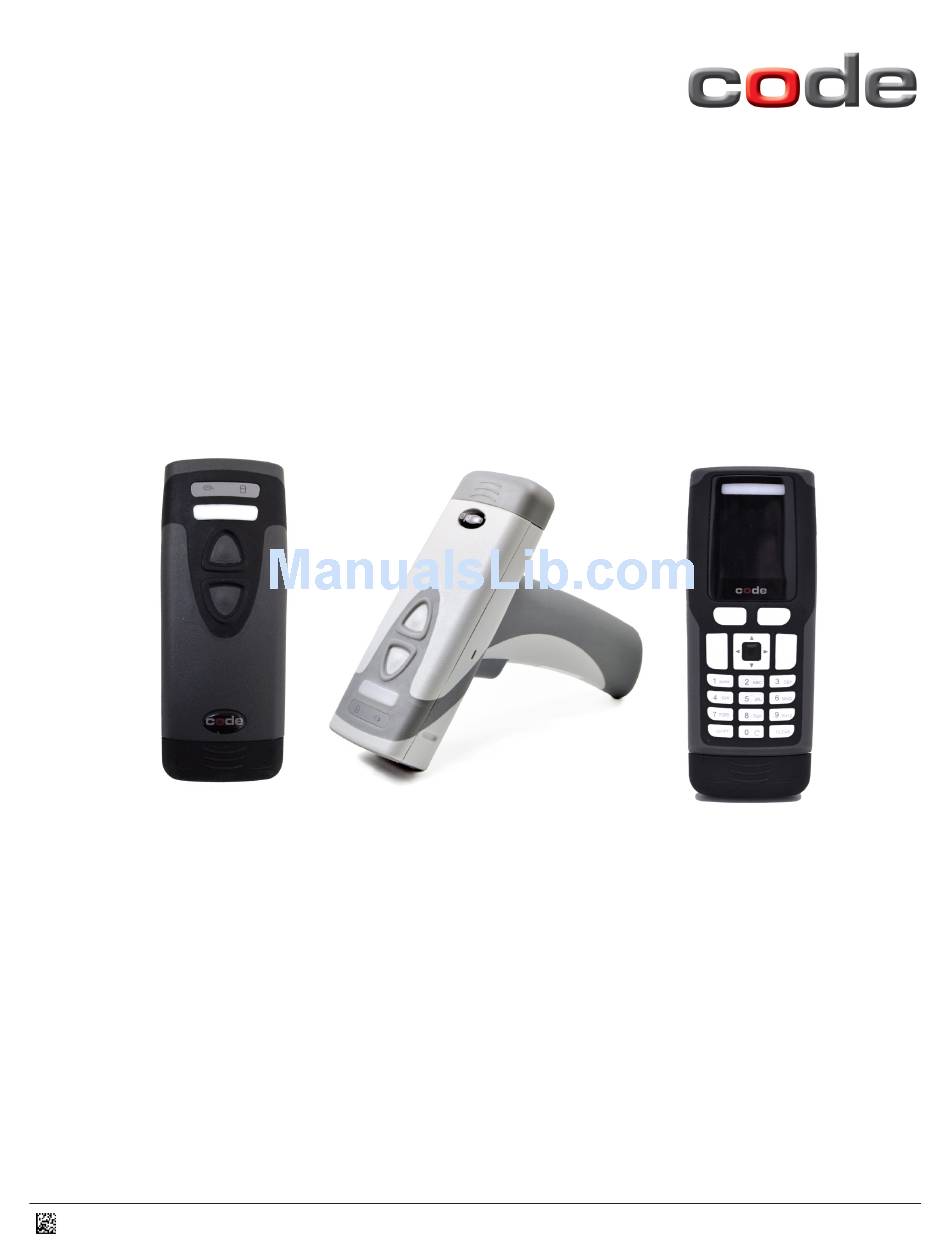

- Page 1 Code Reader™ 2300/2600/3600/CR3600 DPM Configuration Guide C007995_09_CR2300_CR2600_CR3600_CR3600DPM_ConfigurationGuide...
- Page 2 Table of Contents Modem Settings (for use with the Charging Station with an Embedded CodeXML® Modem or the external CodeXML® M3 Modem when paired with a CR2300, CR2600, CR3600 or CR3600 DPM reader) Modem ID and Firmware Version ....................................6 (A2) USB Keyboard Communication Mode - Default ................................6 (A3) RS232 Communication Mode (Applicable for the CodeXML®...
- Page 3 Bluetooth Radio Out of Range Beep and Vibrate - On ..............................10 (C3) Bluetooth Radio Out of Range Beep and Vibrate - Off - Default ..........................10 (C4) Bluetooth Radio Disconnect (Reconnect via QuickConnect Code) ..........................10 (D1) Remote Management Settings Remote Management Enable .......................................
- Page 4 Code 11 Off - Default ........................................11 (B2) Code 11 - Checksum 1 digit ......................................11 (B3) Code 11 - Checksum 2 digits & Strip from Result.................................11 (B4) Code 11 - Checksum 1 digit & Strip from Result ................................11 (C1) Code 32 On ...........................................11 (C2)
- Page 5 QR Code Inverse and Standard On ....................................14 (B1) QR Code Inverse On ........................................14 (B2) Enable All QR Code On (includes Inverse and Micro QR) ............................14 (B3) Inverse and Micro QR Code On ....................................14 (B4) Straight 2 of 5 On ......................................... 14 (C1) Straight 2 of 5 Off - Default ......................................
- Page 6 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. Modem ID USB Keyboard Communication Intentionally Left Blank and Firmware Version Mode - Default Start of Modem Configuration Codes RS232 Communication Mode RS232 9600 Baud Rate RS232 19200 Baud Rate RS232 38400 Baud Rate CodeXML®...
- Page 7 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. Reader ID Power Off in 1 Hour Power Off in 2 Hours and Firmware Version Start of Reader Configuration Codes Power Off in 4 Hours Main Right (CR3600)/Top Handle Trigger Main Left (CR3600)/Bottom...
- Page 8 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. USB Keyboard Mode - USB Virtual COM 1 way Mode - Batch Mode Enable Batch Mode Disable - Default Batch Mode Only Batch Mode Only - Send and Log Batch Mode Batch Mode...
- Page 9 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. 5 sec Duplicate Scan Delay 10 sec Duplicate Scan Delay 1 hour Duplicate Scan Delay 30 sec Duplicate Scan Delay 1 day Duplicate Scan Delay Intentionally Left Blank Intentionally Left Blank Intentionally Left Blank...
- Page 10 CR2600/CR3600 Only Bluetooth Radio Disconnect Remote Management Intentionally Left Blank Remote Management Enable (Reconnect via QuickConnect Disable - Default Code) Enable Cell Phone Disable Cell Phone Reading Australian Post On Australian Post Off - Default Reading Enhancement Enhancement - Default...
- Page 11 Codabar Off Codablock F On Codablock F Off - Default Code 11 On Code 11 Off - Default Code 11 - Checksum 1 digit Code 11 - Checksum 2 digits & Strip from Result Code 11 - Checksum Code 32 On...
- Page 12 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. GS1 Limited DataBar On GS1 DataBar 14/Truncated GS1 DataBar Stacked On GS1 DataBar Expanded On 14 On All GS1 DataBar On - Default All GS1 DataBar Off Han Xin On Han Xin Off - Default Hong Kong 2 of 5...
- Page 13 NOTE: The configuration change will take effect immediately and saved to memory. Japan Post On Japan Post Off - Default KIX Code On KIX Code Off - Default Matrix 2 of 5 On Matrix 2 of 5 Off - Default Maxicode Off -Default...
- Page 14 NOTE: The configuration change will take effect immediately and saved to memory. POSTNET On Postnet On POSTNET Off - Default Postnet Off - Default QR Code On - Default QR Code Off Enable All QR Code On Inverse and QR Code Inverse and...
- Page 15 CR2300/CR2600/CR3600/CR3600 DPM Configuration Guide NOTE: The configuration change will take effect immediately and saved to memory. DPM (Dot Peen and Laser) On DPM (Dot Peen Only) On DPM (Dot Peen and Laser) reading is defaulted On in CR3600 DPM readers. If reading Dot Peen barcodes only, scan the Enable (Dot Peen Only) barcode to optimize reading for that barcode type.
