- Page 1 User Manual...
- Page 2 Copyright Notice CHAUVET® owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2012 CHAUVET®. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ..............................1 Claims ....................................1 Manual Conventions ................................1 Symbols ....................................1 Product at a Glance ............................... 2 Safety Notes ................................2 Personal Safety ..................................2 Mounting and Rigging ................................ -
Page 4: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention... -
Page 5: Product At A Glance
• The maximum ambient temperature is 104° F (40° C). Do not operate this product at a higher temperature. • In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. Expected LED LEDs gradually decline in brightness over time, mostly because of heat. -
Page 6: Introduction

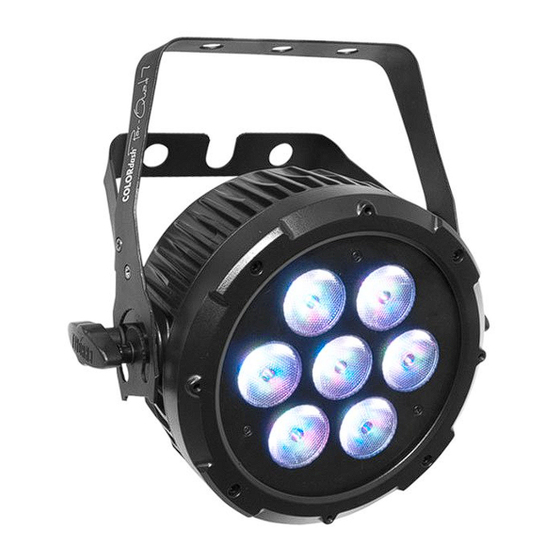

Introduction 2. Introduction The COLORdash™ Par-Quad 7 is a high-power quad color RGBA LED wash product. Product Description This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, the LED boards, as well as the power and signal connectors. -
Page 7: Product Overview
Introduction Product Overview Front View DMXOut DMXOut Control Panel DMX In DMX In Power Out Power In Double-bracketed Yoke Safety Cable Rear View Loop Adjustment Knob Side View COLORdash™ Par-Quad 7 User Manual Rev. 1... -
Page 8: Product Dimensions
Introduction Product Dimensions COLORdash™ Par-Quad 7 User Manual Rev. 1... -
Page 9: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 10: Power Linking
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download Primer from CHAUVET® website: www.chauvetpro.com. COLORdash™ Par-Quad 7 User Manual Rev. 1... -
Page 11: Mounting
Rigging The COLORdash™ Par-Quad 7 consists of a double-bracketed yoke and the body of the product CHAUVET® recommends using the following general guidelines when mounting this product. • When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 12: Operation
Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list and increases the numeric value when in a function <DOWN>... -
Page 13: Static Color
Operation Static Color The Static Color mode allows for permanent RGBA color mixing without a DMX controller. 1. Go to the Static main level. 2. Select the Fix C. a. Choose desired color combination. 3. Select the Manu C a. Select Color (RGBA) b. -
Page 14: Dimmer Curves
Operation Dimmer Curves This setting determines how fast the output of the COLORdash™ Par-Quad 7 changes when you modify the values of the Red, Green, Blue, White, and Dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 15: Menu Map
Operation Menu Map Main Level Programming Levels Description Auto Auto 1~5 Speed 0~100 5 automatic programs Green Blue Amber Green/Blue Red/Blue Red/Green Fix C Red/Green/Blue Red/Amber Static Green/Amber Blue/Amber Red/Green/Amber Red/Blue/Amber Green/Blue/Amber RGBA Red/Green/Blue/Amber Combine red, green, blue, and amber to make a Manu C Value 0~255... -
Page 16: Dmx Values
Operation DMX Values 10-Ch Channel Function Value Percent/Setting Dimmer 000 255 0~100% 000 255 0~100% Green 000 255 0~100% Blue 000 255 0~100% Amber 000 255 0~100% 000 010 No Function Strobe 011 255 Slow to Fast 000 ... -
Page 17: Dmx Values (Cont.)
Operation DMX Values (cont.) 6-Ch Channel Function Value Percent/Setting Dimmer 000 255 0~100% 000 255 0~100% Green 000 255 0~100% Blue 000 255 0~100% Amber 000 255 0~100% 000 010 No Function Strobe 011 255 Slow to Fast 4-Ch Channel... -
Page 18: Technical Information
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number. -
Page 19: Technical Specifications
Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 9.9 in (252 mm) 9.0 in (228 mm) 3.9 in (100 mm) 5.4 lbs (2.5 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal) -
Page 20: Contact Us
Technical Information Contact Us World Headquarters United Kingdom and Ireland CHAUVET® CHAUVET® Europe Ltd. General Information General Information Address:5200 NW 108th Avenue Address: Unit 1C Sunrise, FL 33351 Brookhill Road Industrial Estate Voice: (954) 929-1115 Pinxton, Nottingham, UK Fax: NG16 6NT...
