Summary of Contents for Chauvet COLORDASH PAR-Q12 IP
- Page 1 User Manual...
-
Page 2: Table Of Contents
Configuration (Standalone) ................14 Static Mode ........................Auto Programs ....................... Master/Slave ........................Static Fixed Color......................Color Temperature ......................Static Manual Color Mixer ....................White Balance ........................ Dimmer Profiles......................LED Frequency ......................COLORdash Par-Q12 IP User Manual Rev. 1 TOC 1... - Page 3 5. Te c hnic al Info rmatio n ..............Product Maintenance ..................16 6. Te c hnic al S pe c ific atio ns ............Re turns .................... Co ntac t Us ..................TOC 2 COLORdash Par-Q12 IP User Manual Rev. 1...
- Page 4 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.
-
Page 5: Be Fo Re Yo U Be G In
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs. -
Page 7: Introduction

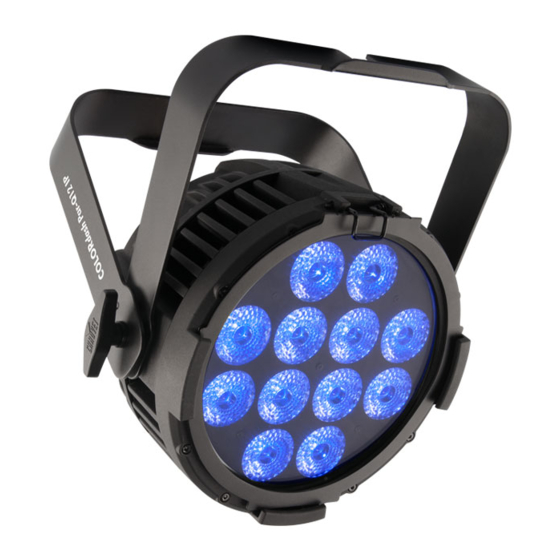

NTRODUCTION Description The COLORdash Par-Q12 IP delivers an RGBA LED wash in any weather condition. An OLED full text display is easy to navigate and direct IP rated connections for power and DMX. The product is power linking capable using 3- or 5-pin DMX serial connection. -
Page 8: Product Dimensions
NTRODUCTION Product Dimensions 12.03 in 305.5 mm 9.41 in 12.85 in 239 mm 326.5 mm 6.98 in 177.4 mm 7.93 in 201.5 mm Page 4 of 17 COLORdash Par-Q12 IP User Manual Rev. 1... -
Page 9: Setup
Green Power Linking You can link up to 13 COLORdash Par-Q12 IP products at 120 V, 23 products at 208 V, or 25 products at 230 V. Never exceed this number. Power linking cords can be purchased separately. DMX Linking The COLORdash Par-Q12 IP will work with a DMX controller using a 3- or 5-pin DMX serial connection. -
Page 10: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. -
Page 11: Procedure
ETUP Procedure The COLORdash Par-Q12 IP comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply your own mounting clamps. Make sure the clamps are capable of supporting the weight of this product. You will have to use at least one mounting point per product. - Page 12 ETUP Page 8 of 19 COLORdash Par-Q12 IP User Manual Rev. 1...
-
Page 13: Control Panel Operation
<DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the COLORdash Par-Q12 IP starting address in the 001-512 DMX range. This enables control of up to 46 products in the 11-channel 11CH personality. -
Page 14: Menu Map
Auto 1-5 0-100 Automatic programs Master DMX mode (Master) Master/Slave Mode Slave Slave mode No dimmer Dimmer Mode Dimming curves Dimmer 1 (fast) to Dimmer Dimmer 1-3 3 (slow) Page 10 of 19 COLORdash Par-Q12 IP User Manual Rev. 1... -
Page 15: Configuration (Dmx)
Set the starting address: Go to DMX Address main level. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: DMX PERSONALITY DMX ADDRESS COLORdash Par-Q12 IP User Manual Rev. 1 Page 11 of 19... -
Page 16: Dmx Values
B: 156 A: 204 225 R: 167 G: 244 B: 165 A: 201 250 R: 167 G: 255 B: 183 A: 192 255 No function Page 12 of 19 COLORdash Par-Q12 IP User Manual Rev. 1... -
Page 17: 6Ch
010 No function Strobe 255 Slow to fast CHANNEL FUNCTION VALUE PERCENT/SETTING 255 0–100% Green 255 0–100% Blue 255 0–100% Amber 255 0–100% COLORdash Par-Q12 IP User Manual Rev. 1 Page 13 of 19... -
Page 18: Configuration (Standalone)
Select the desired speed (001–100). The auto programs cannot be edited. Master/Slave The Master/Slave mode allows a group of COLORdash Par-Q12 IP products (the slaves) to simultaneously duplicate the output of another COLORdash Par-Q12 IP (the master) without a DMX controller. -
Page 19: Dimmer Profiles
Back Light This setting allows for selection of the amount of time the back light on the COLORdash Par-Q12 IP’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 20: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 16 of 19 COLORdash Par-Q12 IP User Manual Rev. 1... -
Page 21: Technical Specifications
ECHNICAL 6. T ECHNICAL PECIFICATIONS Dimensions and Weight ENGTH IDTH EIGHT EIGHT 12.3 in (312 mm) 11.9 in (302 mm) 6.9 in (175 mm) 13.4 lb (6.1 kg) Note: Dimensions in inches rounded to the nearest hundredth. Power OWER UPPLY ANGE OLTAGE ELECTION... -
Page 22: Returns
ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 23: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. COLORdash Par-Q12 IP User Manual Rev. 1 Page 19 of 19...
