Summary of Contents for Chauvet ST-200X

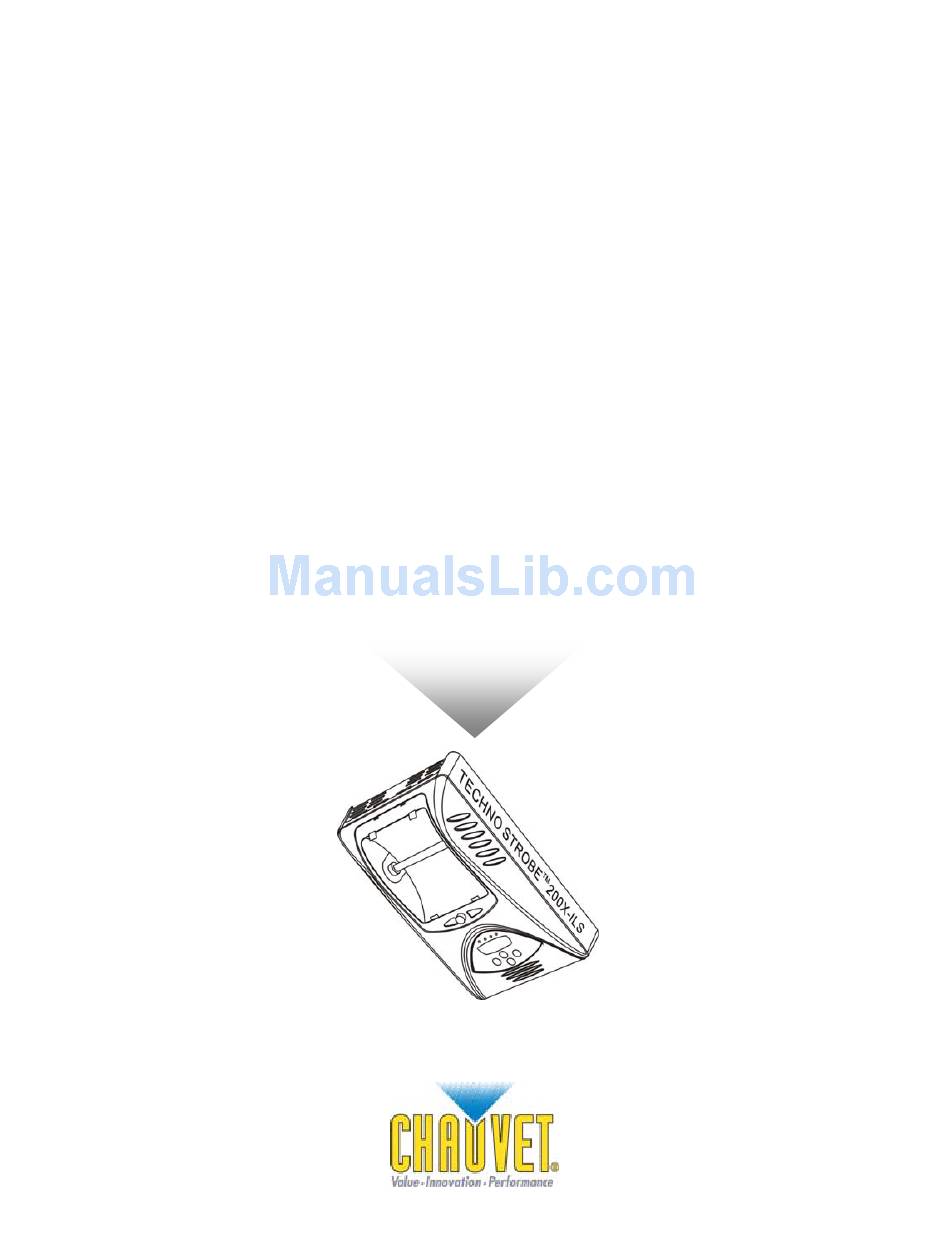

- Page 1 ST-200X Techno Strobe™ 200X USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
-
Page 2: Table Of Contents
... 13 RIMER Fixture Linking ... 13 DMX C ... 14 HANNEL ALUES ... 14 ENERAL AINTENANCE ... 15 ETURNS ROCEDURE ... 15 LAIMS ... 15 ENERAL ROUBLESHOOTING ... 17 ECHNICAL PECIFICATIONS ST-200X User Manual {8LSH} ... 9 Revision: 2004-11-02/11:00... -
Page 3: Before You Begin
Avoid direct eye exposure to lamp. Caution! There are no user serviceable parts inside the unit. Do not any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. ST-200X User Manual Please read these instructions carefully, which... -
Page 4: Introduction
DOWN Steps backward through menu functions Steps forward through menu functions ENTER Confirms selected menu function ST-200X User Manual • • • I/O Panel located on bottom of fixture I/O PANEL OVERVIEW I/O Panel DMX Out & In DMX-512 connectors... -
Page 5: Setup
LA M P IN STA LLA T ION Unscrew the three most left and right screws on the back of the ST-200X and lift the front cover carefully. The segment display can remain attached to the PCB during lamp replacement. -
Page 6: Mounting
W A L L M OU N T The ST-200X is light enough that it can be hung from a wall by its wall-mount hole located centered near the top of the back of the fixture. Side ventilation panels allow breathing room so it is important to allow at least 12 inches of unencumbered space on both sides. -
Page 7: Operating Instructions
DMX signal, it will enter into a stand alone mode. Be sure to power up your DMX controller device before the lighting fixture to avoid unwanted auto mode operation. ST-200X User Manual Addr DMX-512 Address Setting... -
Page 8: Operating Modes
For example, a fixture that occupies or uses 6 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100, 101, ST-200X User Manual Operating Instructions... -
Page 9: Setting The Starting Address
You must make a selection within 6 seconds. Press the UP and DOWN buttons to toggle between the two shows available {4LSH} or {8LSH}. Press the ENTER button to activate selection. ST-200X User Manual Notes When calculating the next starting address for a particular fixture, simply add the number of channels used by the last fixture to the starting address of the last fixture. -
Page 10: Addressing Slave Units
The display can be inverted making it easier to read the menu depending on the orientation of your fixture. D I S PL A Y IN V ER SE { Id S P } Tap the MENU button until the display reads {IdSP}. ST-200X User Manual Fixture Address {Addr} Master = 001... -
Page 11: Fixture Test And Service Functions {Test}, {Fhrs}, {Rset
Tap the MENU button until the display reads {FhrS}. Press ENTER to view the total working hours. You can leave alone and the display will return to the regular menu or press MENU button to return to main menu. ST-200X User Manual Revision: 2004-11-02/11:00 Operating Instructions... -
Page 12: Ca-8F Easy Controller (Optional)
Blackout Audio (LED off) Manual (LED on) Auto (LED blinks) ST-200X User Manual Function button Press function and all units will Figure 3 - CA-8 Easy Controller & strobe quickly. the CA-8F Foot Controller (Audio triggered) Steps to the next preset pattern. -
Page 13: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 14: Dmx Channel Values
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s ST-200X User Manual Function Strobe Speed... -
Page 15: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. - Page 16 Remote does not work Make sure connector is firmly connected to device Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when...
-
Page 17: Technical Specifications
Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols... DMX-512 USITT DMX Channel ...2 Remote Controller Input ... ¼” MONO phone plug ORDERING INFORMATION Techno Strobe™ 200X ...ST-200X Techno Strobe™ Replacement Bulb...BL-200ST Fuse 3A ...P170FUSE003 ST-200X User Manual Revision: 2004-11-02/11:00...
