Suburban SRNA3 Installation, Operation And Service Manual

Recreational vehicle range and cooktops

Advertisement

Available languages

Available languages

LISTED
All SCNA3 and SCSA3 Slide-In Cooktop Model Variations
WARNING! IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF
LIFE. REFER TO THE INSTALLATION INSTRUCTIONS AND/OR OWNERS MANUAL
PROVIDED WITH THIS APPLIANCE. INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
! DO NOT TRY TO LIGHT ANY APPLIANCE. EXTINGUISH ANY OPEN FLAME
INCLUDING CIGARETTES.
! EVACUATE ALL PERSONS FROM THE VEHICLE.
! DO NOT START THE VEHICLE'S ENGINE OR ELECTRIC GENERATOR.
! DO NOT TOUCH ANY ELECTRICAL SWITCH (INCLUDING LIGHTS) OR USE ANY
PHONE OR RADIO IN THE VEHICLE.
! SHUT OFF THE GAS SUPPLY AT THE GAS CONTAINER (BOTTLE) OR SOURCE.
! IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR'S PHONE.
FOLLOW THE GAS SUPPLIER'S INSTRUCTIONS.
! IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
! DO NOT TURN ON THE GAS SUPPLY UNTIL THE GAS LEAK(S) HAVE BEEN
REPAIRED.
INSTALLER: PROVIDE THIS MANUAL TO THE OWNER/USER OF THE RECREATIONAL VEHICLE.
OWNER: RETAIN THESE INSTRUCTIONS AND WARRANTY FOR FUTURE REFERENCE.
READ THIS MANUAL CAREFULLY BEFORE OPERATING APPLIANCE.
ALL TECHNICAL AND WARRANTY QUESTIONS SHOULD BE DIRECTED TO THE COMPANY
LISTED ON THE WARRANTY, OR RATING PLATE LOCATED UNDERNEATH THE MAIN TOP.

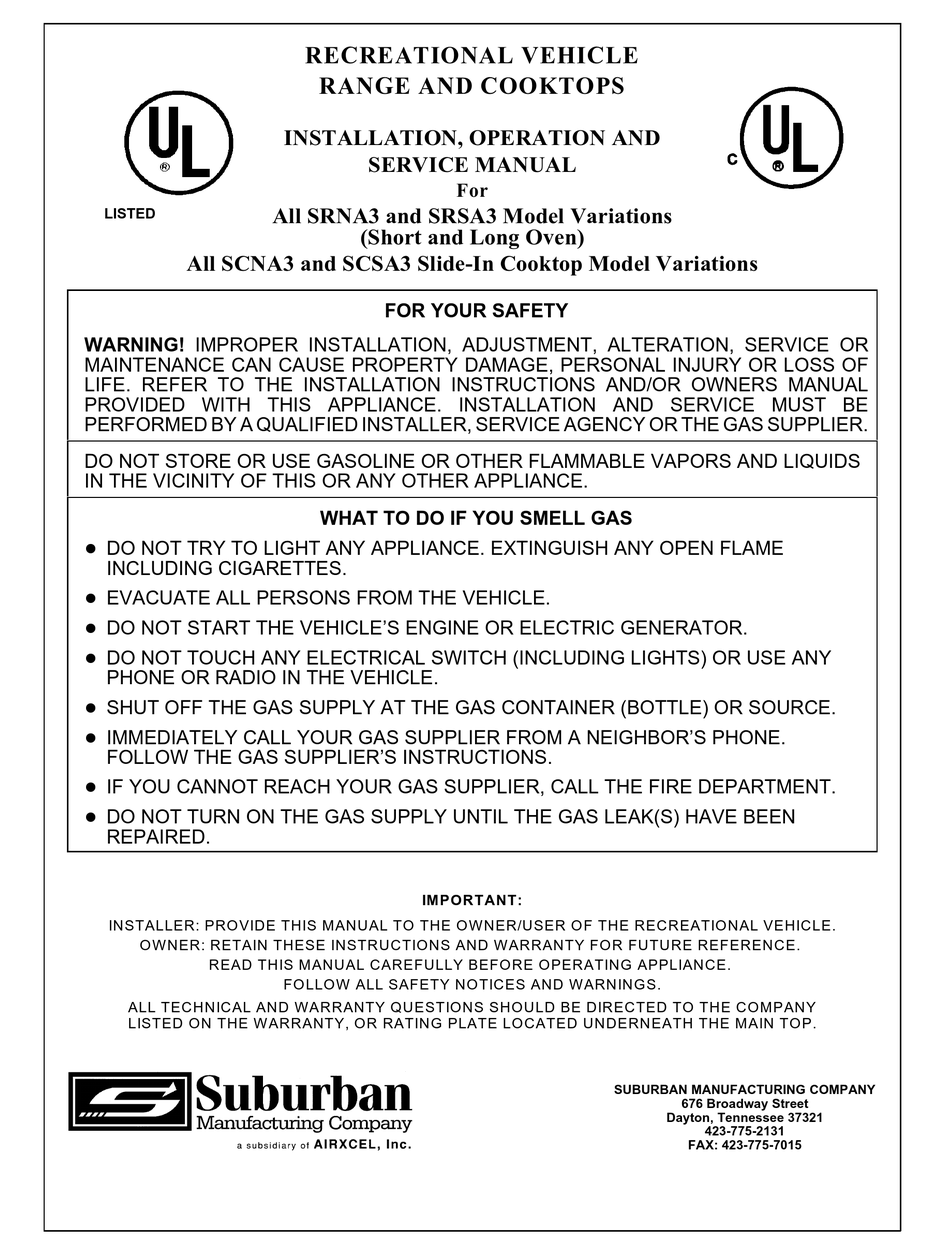

RECREATIONAL VEHICLE
RANGE AND COOKTOPS
INSTALLATION, OPERATION AND
SERVICE MANUAL
All SRNA3 and SRSA3 Model Variations
(Short and Long Oven)
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
IMPORTANT:
FOLLOW ALL SAFETY NOTICES AND WARNINGS.
For
SUBURBAN MANUFACTURING COMPANY
676 Broadway Street
Dayton, Tennessee 37321
423-775-2131
FAX: 423-775-7015
