INSTALLATION, OPERATION AND SERVICE MANUAL
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
•
DO NOT TRY TO LIGHT ANY APPLIANCE. EXTINGUISH ANY OPEN FLAME INCLUDING
CIGARETTES.
•
EVACUATE ALL PERSONS FROM THE VEHICLE.
•
DO NOT START THE VEHICLE'S ENGINE OR ELECTRIC GENERATOR.
•
DO NOT TOUCH ANY ELECTRICAL SWITCH (INCLUDING LIGHTS) OR USE ANY PHONE OR
RADIO IN THE VEHICLE.
•
SHUT OFF THE GAS SUPPLY AT THE GAS CONTAINER (BOTTLE) OR SOURCE.
•
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR'S PHONE. FOLLOW THE
GAS SUPPLIER'S INSTRUCTIONS.
•
IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
•
DO NOT TURN ON THE GAS SUPPLY UNTIL THE GAS LEAK(S) HAVE BEEN
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
THIS APPLIANCE IS NOT TO BE INSTALLED WITH A VENTILATION SYSTEM THAT BLOWS AIR
DOWNWARD TOWARDS THE COOKTOP. THIS TYPE OF VENTILATION SYSTEM MAY CAUSE
IGNITION AND COMBUSTION PROBLEMS WITH THE GAS COOKING APPLIANCE, RESULTING
IN PERSONAL INJURY OR UNINTENDED OPERATION.
INSTALLER: PROVIDE THIS MANUAL TO THE OWNER/USER OF THE RECREATIONAL VEHICLE.
OWNER: RETAIN THESE INSTRUCTIONS AND WARRANTY FOR FUTURE REFERENCE. READ THIS MANUAL
CAREFULLY BEFORE OPERATING APPLIANCE. FOLLOW ALL SAFETY NOTICES AND WARNINGS.
ALL TECHNICAL AND WARRANTY QUESTIONS SHOULD BE DIRECTED TO THE COMPANY
LISTED ON THE WARRANTY, OR RATING PLATE LOCATED UNDERNEATH THE MAIN TOP.
Part Number 204997
04-30-2014
RECREATIONAL VEHICLE

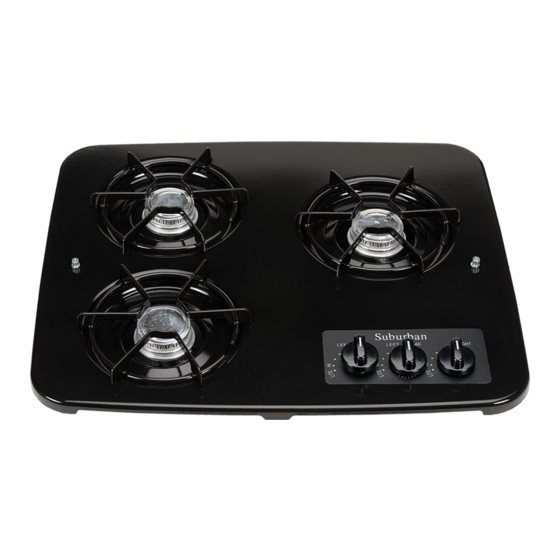

DROP-IN COOKTOPS
Models
SDN2 • SDN3
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
IMPORTANT:
REPAIRED.
AIRXCEL, INC. - SUBURBAN DIVISION
676 Broadway Street
Dayton, Tennessee 37321
423-775-2131
Fax: 423-775-7015
www.RVComfort.com
