- Page 1 Model EOD6335...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION These warnings are provided in the interests of your Always use oven gloves to remove and place food in safety. Ensure that you understand them all before the oven. installing or using the appliance. Your safety is of During use the appliance becomes hot. -
Page 3: Table Of Contents
CONTENTS FOR THE USER Bottom Heat Using Bottom Heat Important Safety Information Description Of The Appliance Getting To Know Your Appliance Defrost Feature Before Using The Appliance Using Defrost Feature Rating Plate Things To Note Preparing To Use Your Appliance Hints And Tips When First Switching On The Cooling Fan For The Controls... -
Page 4: Description Of The Appliance

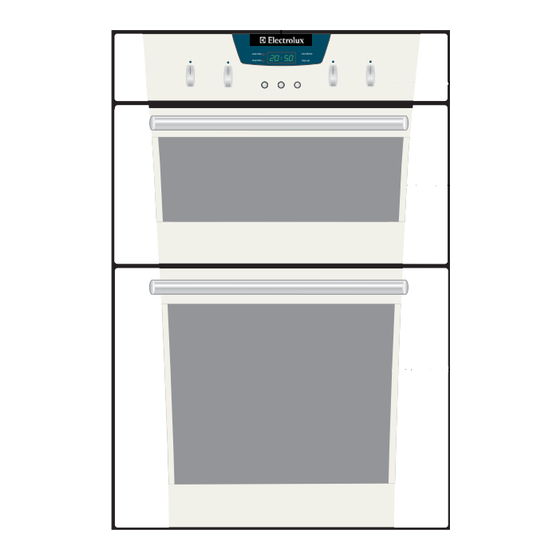

DESCRIPTION OF THE APPLIANCE BUILT-IN ELECTRIC DOUBLE OVEN Electronic Timer Control Panel Top Oven/Grill Main Oven Your built-in appliance comprises of a conventional oven and dual grill in the top compartment. The main oven can be automatically controlled by the electronic timer. -
Page 5: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE THE CONTROL PANEL - Main Oven Temperature Control - Main Oven Indicator Neon - Main Oven Function Control Oven Light Fan Oven Turbo Grill Half Grill Full Grill Conventional Bottom Heat Defrost - Electronic Timer - Top Oven/Grill Temperature Control - Top Oven Indicator Neon - Top Oven/Grill Function Control... -
Page 6: Before Using The Appliance
BEFORE USING THE APPLIANCE RATING PLATE If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will This is situated on the lower front frame of the condense and produce water droplets. This is quite appliance and can be seen upon opening the door. -
Page 7: Electronic Timer
ELECTRONIC TIMER COOK TIME END TIME COUNTDOWN TIME DECREASE CONTROL SELECTOR CONTROL G INCREASE CONTROL NOTE: The time of day must be set before the main oven will operate manually. 1. HOW TO SET THE TIME OF DAY The oven has a 24 hour clock. Fig.1 When the electricity supply is first switched ON, the display will show 12.00 and the 'Time' (... -
Page 8: Setting The Oven Timer
TO CANCEL THE COUNTDOWN If you change your mind and want to cancel the 'Countdown', press the Selector Control button until the 'Countdown' indicator neon ( ) flashes and then the decrease control ( - ) until 0.00 shows in the display as Fig. -
Page 9: Automatic Cooking
B) TO SET THE TIMER TO SWITCH OFF ONLY Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g. 10.00am as Fig. 9. ii) Place food in the oven. iii) To set the length of cooking time, press the Selector Control button until the 'Cook Time' ) indicator neon is illuminated. -
Page 10: The Dual Grill
THE DUAL GRILL WARNING – Accessible parts may become hot when the grill is in use. Keep children away. The grill is a dual circuit grill which means that the full area of the grill can be used, or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 11: Hints And Tips
HINTS AND TIPS • Most foods should be placed on the grid in the grill pan to allow maximum circulation of air to lift the food out of the fats and juices. • Adjust the grid and grill pan runner position to allow for different thicknesses of food. -
Page 12: The Top Oven
THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. -
Page 13: Top Oven Cooking Chart
• Ensure that food is placed centrally on the shelf and there is sufficient room around the baking tray/dish to allow for maximum circulation. • Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce cleaning. -
Page 14: The Main Oven
THE MAIN OVEN The fan oven is particularly suitable for cooking larger quantities of food. The advantages of fan oven cooking are: PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may find you need to add an extra 5 –... -
Page 15: Hints And Tips
HINTS AND TIPS • Arrange the shelves in the required positions before switching the oven on. Shelf positions are counted from the bottom upwards. • When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results. -
Page 16: Main Oven Cooking Chart
MAIN OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by a further 10°C to suit individual preferences and requirements. FAN OVEN CONVENTIONAL OVEN Food Shelf Cooking Shelf Cooking Position... -
Page 17: Roasting Chart
ROASTING CHART INTERNAL TEMPERATURES – Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C MEAT COOKING TIME TEMPERATURE 20-35 minutes per ½kg (1lb) Beef/ Beef boned 160-180°C and 20-35 minutes over Mutton/Lamb 160-180°C 25-35 minutes per ½kg (1lb) and 25-35 minutes over Pork/Veal/Ham 160-180°C 30-40 minutes per ½kg (1lb) -
Page 18: Turbo Grill
TURBO GRILL Turbo grilling in the main oven offers an alternative method of cooking food items normally associated with conventional grilling. Turbo grilling helps to minimise cooking smells in the kitchen and allows you to grill with the oven door closed. -
Page 19: Hints And Tips
HINTS AND TIPS • Prepare foods in the same way as for conventional grilling. Brush lean meats and fish lightly with a little oil or butter to keep them moist during cooking. • Most food should be placed on the grill pan grid in the 'high' position in the grill pan to allow maximum circulation of air around the food. -
Page 20: Main Oven Dual Grill
MAIN OVEN DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 21: Hints And Tips
HINTS AND TIPS • Most foods should be placed on the grid in the grill pan to allow maximum circulation of air to lift the food out of the fats and juices. • Adjust the grid and grill pan runner position to allow for different thicknesses of food. -
Page 22: The Conventional Oven
THE CONVENTIONAL OVEN This form of cooking gives you the opportunity to cook without the fan in operation. It is particularly suitable for dishes which require extra base browning such as pizzas, quiches and flans. Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven. - Page 23 • Ensure that food is placed centrally on the shelf and there is sufficient room around the baking tray or dish to allow for maximum circulation. • Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce cleaning.
-
Page 24: Bottom Heat
BOTTOM HEAT This function can be used to finish off dishes that may require extra base heat or where base browning and crispness are required by pizzas or pies. Some pizzas should be cooked directly on the oven shelf. To prevent soiling the oven base, place a baking tray in one of the lower positions. -
Page 25: Defrost Feature
DEFROST FEATURE This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc. -
Page 26: Care And Cleaning
CARE AND CLEANING Before cleaning always allow the cooling fan to cool the appliance down before switching off at the electricity supply. CLEANING MATERIALS Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. -
Page 27: Cleaning Inside The Ovens
CLEANING INSIDE THE OVENS The sides and back of the grill/second oven and main oven compartments are coated with a special Stayclean coating. They should not be cleaned manually. The vitreous enamel main oven base and grill compartment base can be cleaned using normal oven cleaners with... -
Page 28: To Clean The Inner Glass Door Panels
Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions. TO REMOVE THE INNER GLASS 1. Fully open the oven door. 2. Firmly grasp the rear edge of the inner glass panel with both hands. -
Page 29: Cleaning The Grill And Oven Furniture
CLEANING GRILL OVEN FURNITURE All removable parts, except the grill pan handle can be washed in the dishwasher. The grill pan, grill pan grid and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier. -
Page 30: Something Not Working
SOMETHING NOT WORKING Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call. In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. -
Page 31: Service And Spare Parts
SERVICE AND SPARE PARTS In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:- 0870 5 929929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk Before calling out an engineer, please ensure you have read the details under the heading "Something Not... -
Page 32: Guarantee Conditions
GUARANTEE CONDITIONS Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 33: Technical Details
TECHNICAL DETAILS Voltage: 230-240 Volts AC 50Hz Wattage: 5.2-5.6kW Height: 888mm Width: 592mm Depth: 563mm (excluding handles and knobs) Weight: 55kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 34: Installation Instructions
INSTALLATION INSTRUCTIONS WARNINGS • This appliance must be installed by a qualified electrician/competent person. Safety may be impaired if installation is not carried accordance with these instructions. • This appliance must be earthed. • Do not remove the screws from the earth tab extending from the oven mains terminal block (Fig. -
Page 35: Choice Of Electrical Connection
CHOICE OF ELECTRICAL CONNECTION • There are three possible ways to connect your appliance. In each case the appliance should be operated using at least 6mm twin core and earth PVC insulated. Please choose from the most appropriate after reading the different methods:- a) By connecting the appliance to a cooker point (having a double pole isolating switch with at least 3mm contact separation in all poles and... -
Page 36: Recommended Cabinet Dimensions
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES) Cross section through cabinet showing oven positioned Fig. 3 Built In Installation... -
Page 37: How To Finish Unpacking
HOW TO FINISH UNPACKING • Place packed appliance next to the space in which it will be installed. • Remove the appliance packing except for bottom tray, which should be left in position until the appliance is ready to be fitted into its cabinet. NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor. -
Page 38: Connecting To The Mains Terminal
CONNECTING TO THE MAINS TERMINAL Warning: This appliance must be earthed. • We recommend you use a new length of 6mm twin core and earthed cable to ensure your safety. • Make connection as shown in Fig. 7 by proceeding as follows:- •... -
Page 39: Fitting Into The Cabinet
FITTING INTO THE CABINET IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out. • Using a tape measure establish the internal width of the cabinet. Refer to page 37 if greater than 565mm. -
Page 40: Notes
IMPORTANT NOTICE In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice. This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.
