SIDE PANELS

Side panels must be used whenever the sides of the
refrigerator will be exposed. The 1/4" side panels will
slip into the side case trim. Order the side panels
from the cabinet manufacturer.
* Depending on
installation height.
Design Guide
24"
*84"
*3" to 4"
2-9/16"

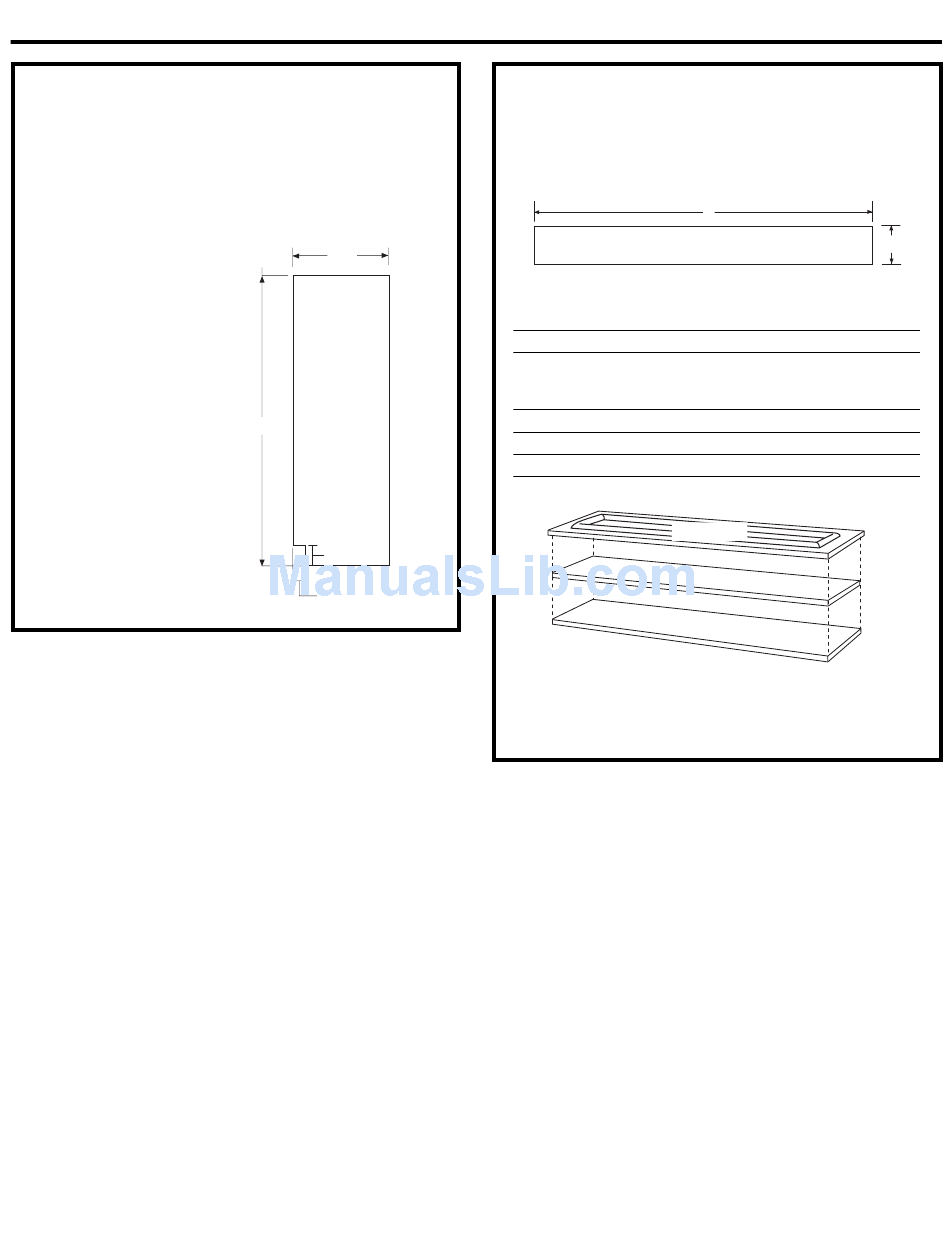

ZUG2 GRILLE PANEL DIMENSIONS

The ZUG2 unified grille panel kit provides for the
installation of a framed or overlay grille panel.
Framed Panel Dimensions
1/4" Framed Panel
Overlay Panel Dimensions
1/4" Backer Panel
0.10" Spacer Panel
3/4" Overlay Panel
Assemble the overlay panels in the same manner as
the door and drawer panels.
8
A
Grille Panel
A (Width) B (Height)
69-7/8" 8-7/8"
A (Width) B (Height)
69-7/8" 8-7/8"
68-1/2" 7-5/8"
70-1/8" 9"
Overlay Panel
Spacer Panel
Backer Panel
B
