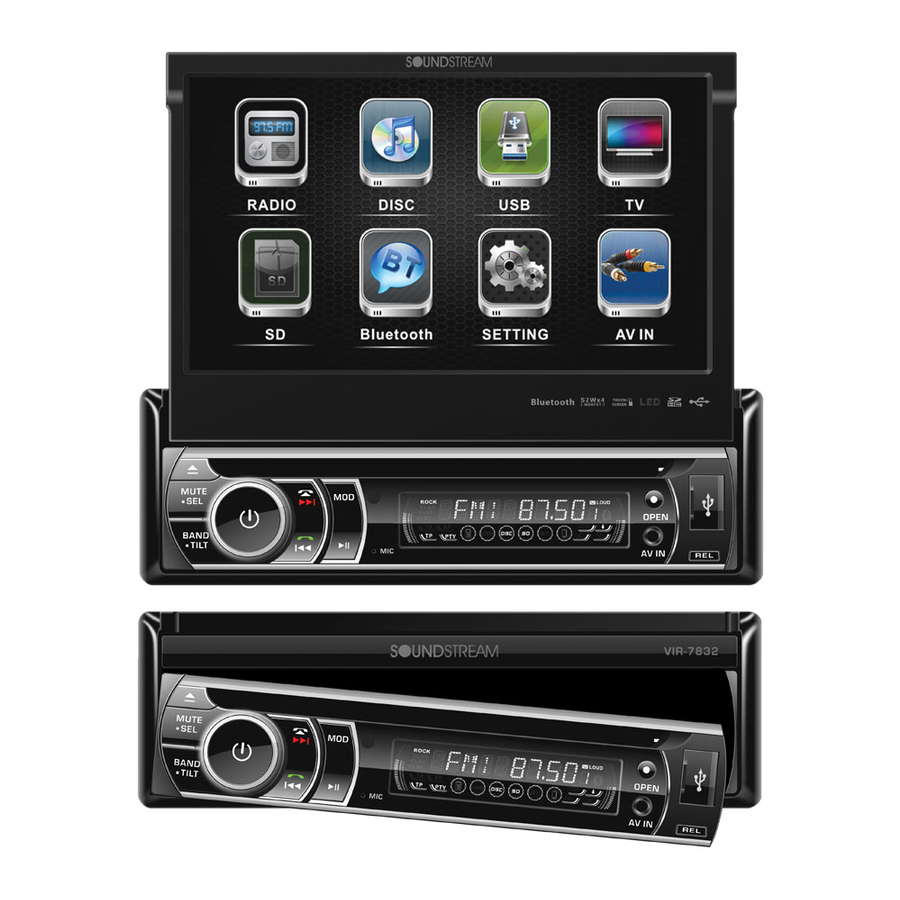

  • Page 1 VIR-7832BI In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth Support iPod/iPhone Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    Warning! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    Contents Warning! ........................2 Operation precautions ....................2 Accessories ........................ 4 Installation/Un-installation ................... 5 Wiring connections ..................... 6 Front panel ........................8 Remote control ......................9 Remove battery ......................9 General operations ....................10 Main menu ........................ 12 ◆ RADIO Operation ....................12 Disc-USB/iPod-SD/MMC operations .................

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw 5*20 1x AV-IN Cable Remote Control Warranty card User Manual...

  • Page 5: Installation/Un-Installation

    Installation/Un-installation Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    Wiring connections NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.

  • Page 8: Front Panel

    Front panel 1) Touch screen Disc slot 2) Eject button LCD display 3) Mute /Sel button Open button 4) Band /TILT button AV-IN jack 5) Vol /Power button Release button /reject button USB/iPod slot / accept button Panel status indicator 8) Play/pause button Rest button 9) Mode button...

  • Page 9: Remote Control

    Remote control 1: MODE 2: POWER 3: BAND/RANDOM/Clear 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT 7: STEREO/MONO/* 8: P.SCN/RPT/# 9: BACKWARD/SEEK- FAST BACKWARD 10:LOUD 11: OSD 12: PBC/STOP 13: Digit numbers 14: Play/Pause 15: Mute/Bluetooth 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE/Accept 20: INT/Eject 21: VOLUME PLUS...

  • Page 10: General Operations

    General operations Touch screen Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you need. Release the front panel Press REL button on the front panel to detach and release the front panel. When the unit was released, it will switch off automatically after a few second.
  • Page 11 Reset the unit Any errors occurring during operation can be corrected by pressing the Reset button. Use a thin, sharp object to press it in order to return factory setting Dual zone function Activating Dual Zone Mode • Access GENERAL setup in the SETTINGS menu and press the icon for DUAL mode and select ON.

  • Page 12: Main Menu

    Main menu The individual menus are displayed via the touch-screen. The following settings can be carried out or changed. Change the settings by lightly the screen with your finger. ◆ RADIO Operation When the unit is switch to Radio, the below touchable interface will be display Mute the sound Touch this button can choose FM1, FM2, FM3, AM1, AM2.

  • Page 13: Disc-Usb/Ipod-Sd/Mmc Operations

    Manual/automatic tuning 1) Manual tuning: press button on the panel or on the RC and hold for 2 seconds or touch on the screen to enter the manual tuning mode. Press these buttons repeatedly to select a frequency downward or upward step by step. 2) Automatic tuning: press button on the panel or on the RC or on the screen to search automatically.

  • Page 14: Dvd/Vcd Interface Operation

    ◆DVD/VCD interface operation When a DVD/VCD is played, touch the center of the screen; the screen will show following interface. Insert DVD disc insert VCD disc Pause playback. Press it again to continue playback. Stop playback. Press it to Stop playback from the current position, press it again to final stop to the very beginning.

  • Page 15: Disc File-Usb-Sd/Mmc Interface Operation

    ◆DISC file-USB-SD/MMC interface operation When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to Stop playback from the current position, press it again to final stop to the very beginning Play/pause button.
  • Page 16 Selecting tracks During playback, press button on the RC or front panel or on the screen to select the previous or next track. Press number buttons (0-9) on the RC to select the desired track number. Fast forward/rewind Press and hold repeatedly button on the RC or front panel or touch on the screen to activate fast backward or forward playing.

  • Page 17: Ipod/Iphone Operation

    Changing angle (for DVD only) Press ANGLE button on the RC to playback images at different camera angles. If a disc doesn’t support multi-angle playback, this function will not work. Selecting audio language (for DVD only) During DVD playback, press AUDIO/GOTO button on the RC or touch AUD on the screen repeatedly to select the audio language to listen.

  • Page 18: Av-In Operation

    ◆AV-IN Operation Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing Mode on the front panel. Note: If there is no external video input, the TFT displays “NO VIDEO SIGNAL” 1.

  • Page 19: Radio Control

    SCREEN Screen setting 16:9, 4:3, full Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button to show RADIO menu. Select Radio AREA:EUROPE-U.S.A- AREA SOUTH AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERA CONTROL Tap GENERAL Button to show GENERA 1 menu.

  • Page 20: Dvd Set Up Menu

    DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1].

  • Page 21: System Information

    [6] TV SHAPE: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. [7] NTSC/ PAL: Select this menu item to set up your preferred video output format.

  • Page 22: Bt Main Menu

    Bluetooth section Warning: Driving and having a Telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed. To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the mute/Bluetooth button on the Remote Control or press mode button on remote or on front panel.
  • Page 23 call in its call log. Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “...

  • Page 25: Notes On Disc

    Notes on disc  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 26: Troubleshooting

    Troubleshooting Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 27: Troubleshooting

    Troubleshooting SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 28: Technical Specification

    Technical specification General Power supply: 11~16V DC Current consumption: Max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
