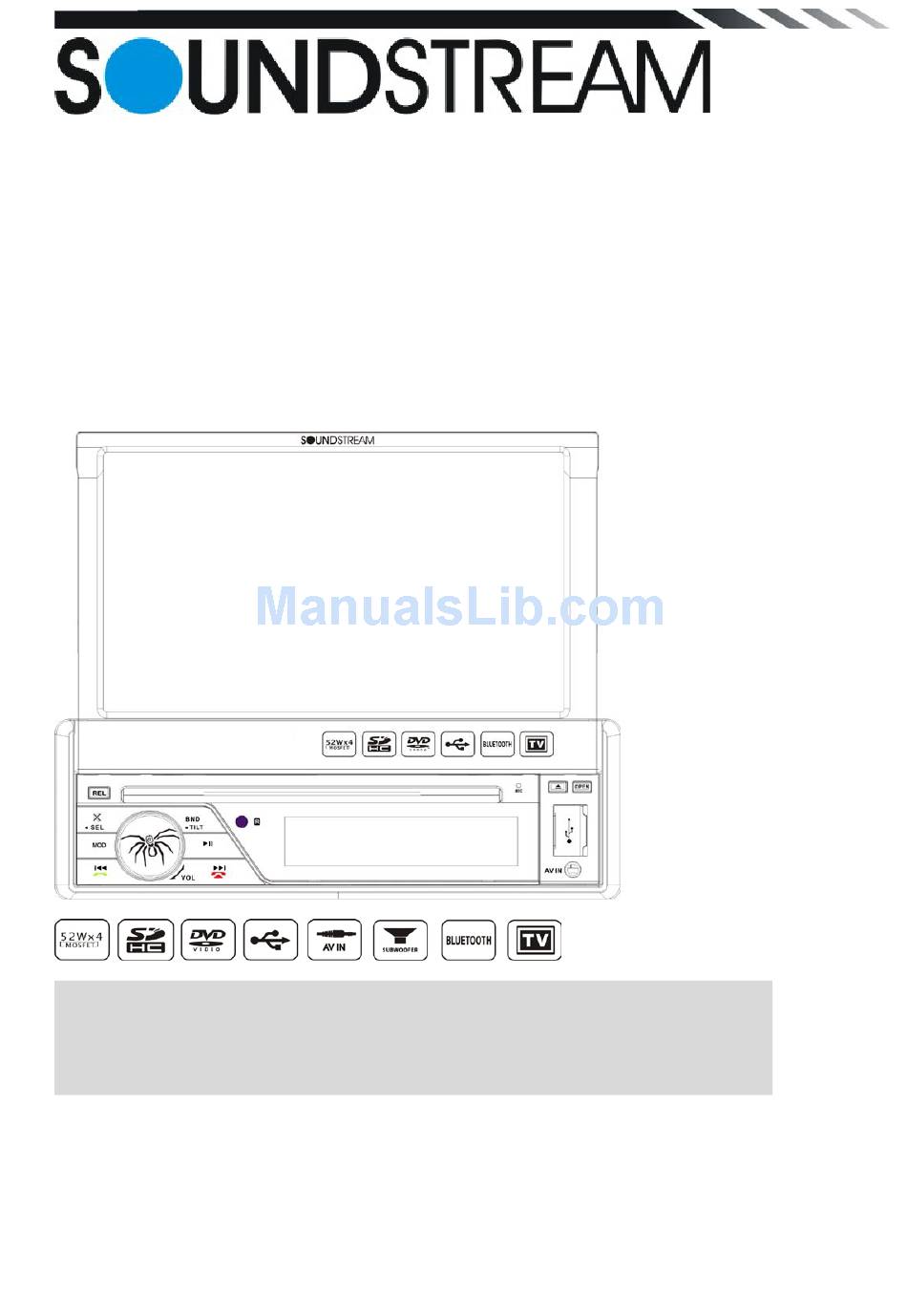

VIR-7830B/ VIR-7830BT
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
Built-in TV tuner
With Bluetooth
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Soundstream VIR-7830B
Summary of Contents for Soundstream VIR-7830B
- Page 1 VIR-7830B/ VIR-7830BT In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Built-in TV tuner With Bluetooth Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.
-
Page 2: Warning
WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. -
Page 3: Table Of Contents
CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 Accessories ........................ 4 INSTALLATION / UN-INSTALLATION ................ 5 WIRING CONNECTIONS ................... 6 Front panel ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................13 MAIN MENU ......................14 ◆ RADIO PLAYER ....................14 ◆... -
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt 5*20 (4) Screw 4*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion 1x AV-IN Cable Remote Control Warranty card... -
Page 5: Installation / Un-Installation
INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop. -
Page 6: Wiring Connections
WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal. - Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).
-
Page 8: Front Panel
Front panel 1. Release Button Press to detach and release the front panel. When the unit was released, it will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel. To attach it, insert the right side first and then press the left side until hear a click sound. - Page 9 Button/ Button In RADIO mode, press to start automatic searching, press and hold for two seconds to start manual searching, then press to tune each frequency step downward. In DVD / SD / USB mode, press button to skip to the previous track. Press button and hold for two seconds to activate fast reverse (REW) search in a track.
-
Page 10: Remote Control
18. SD/MMC CARD slot SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and the unit will automatically start reading and playback the card. * Supported Music File Format: MP3, WMA Files. REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/Clear... - Page 11 8. P.SCN/ RPT /# In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off. In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
- Page 12 Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of ZOOM 2-> ZOOM 3-> ZOOM 4-> ZOOM 1/2-> ZOOM 1/3-> ZOOM 1/4. 23.SEL button Press it to enter the SOUND SETTING menu, and press Cursor UP/DN buttons to choose an item and press cursor left/right buttons to set the item.
-
Page 13: Remove Battery
REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. ... -
Page 14: Main Menu
MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. -
Page 15: Dvd Player
Touch this button to select reception of local station or DX for distance station. ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. -
Page 16: Disc/Usb/Sd/Mmc Interface Operation
In VCD mode touch it can choose PBC ON or OFF In DVD mode touch it to enter TITLE MENU (Enable only if the DVD disc with title menu). Touch it to select previous or next track. Select the viewing angle of the touch-screen. ◆DISC/USB/SD/MMC interface operation Mute the sound. -
Page 17: Tv Mode
◆TV Mode rt TV Mode, tap on TV button from main menu screen. To sta ◆AV-IN Mode To start AV-IN Mode, tap on AV-IN button from main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing repeat Mode button on the front panel. -
Page 18: Display Control
BEEP Keypad sound setting LOUDNESS Set LOUD ON/OFF SUBWOOFER Set SUBWOOFER ON or OFF DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. SCREEN Screen setting 16:9, 4:3，FULL Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button to show RADIO menu.. AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA... -
Page 19: Dvd Set Up Menu
button to show GENERAL 2 menu. CLOCK Set 24Hour format or HOUR 12Hour format CLOCK Set CLOCK ADJUST time SETTING Automatic Bluetooth connection AUTO to a previously connected mobile CONNECT telephone. DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu;... -
Page 20: System Information
Code Description 1.NONE Kid safe General Audiences – ALL ages admitted PARENTAL GUIDANCE SUGGESTED-Some material may not be suitable fo 3.PG r children PARENTS STRONGLY CAUTIONED-Some material may be inappropriate fo 4.PG-13 r children under 13 5.PG-R Restricted, under 17 requires accompanying parent or adult guardian. RESTRICTED-Under 17 requires accompanying parent or adult guardian 7.NC-17 NO ONE 17 AND UNDER ADMITTED... -
Page 21: Bluetooth Section
When the unit have connect with phone ,the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (Soundstream), select it, input password "0000" and confirm ok, device paring is finished. - Page 22 call in its call log . Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “...
-
Page 23: Tv Section (For Vir-7830Bt Only)
TV SECTION (For VIR-7830BT only) Connect a TV antenna to the TV antenna jack of the unit. Select TV mode, and then touch the center of the display; following interface will be display. In TV mode, press the Play/Pause buttons on front panel or remote once to enter TV menu setting;... -
Page 24: Other Functions
Manual program (manual seek mode) Storage Select this menu item is to set the storage number. System Select this menu item is to set TV system: SECAM => NTSC =>PAL, press NTER button on the remote touch corresponding option on the touch screen to select. ... -
Page 25: Notes On Disc
NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. -
Page 26: Troubleshooting
TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2. -
Page 27: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED. -
Page 28: Technical Specifications
TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
