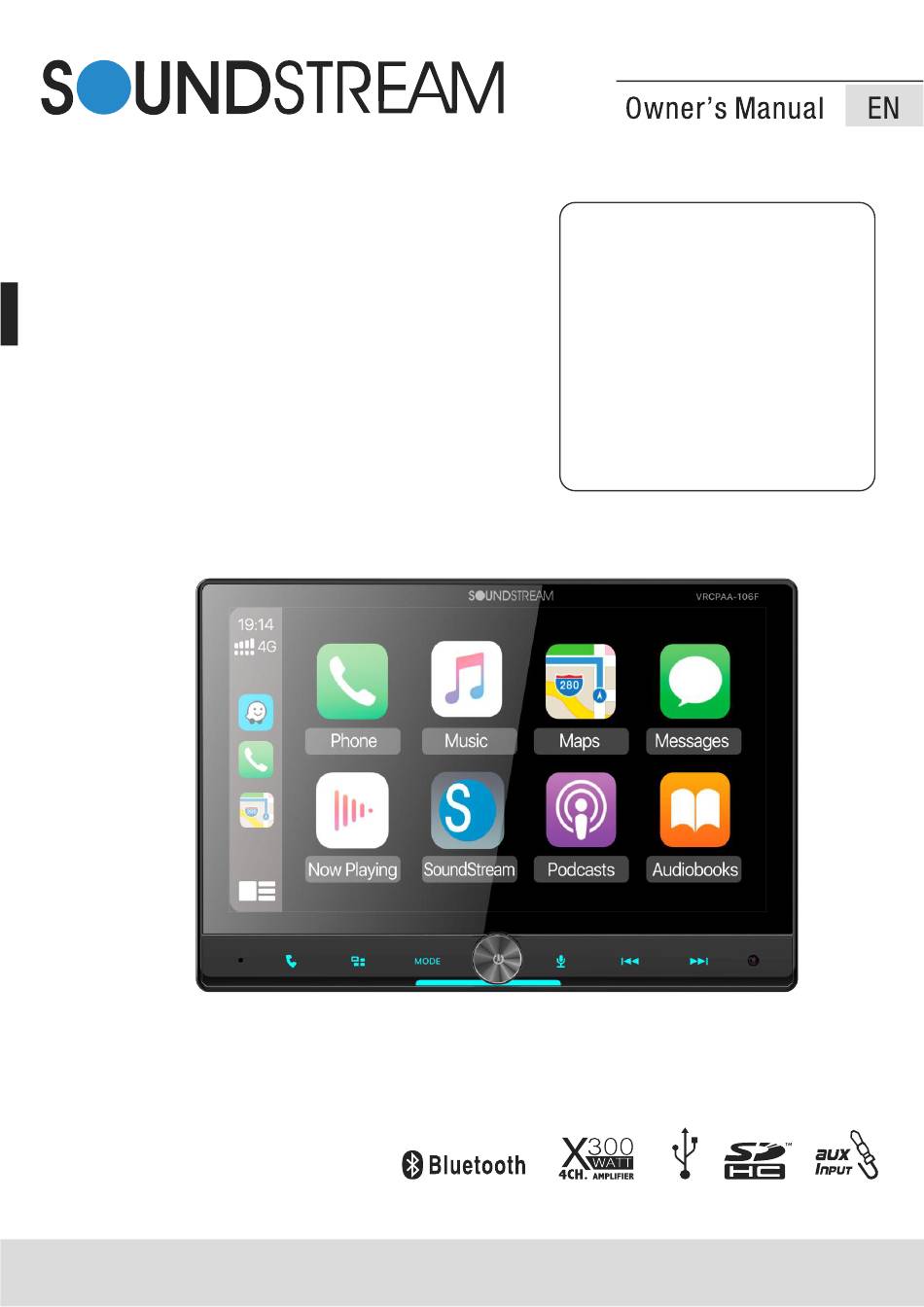

- Page 1 AV Center 2 DIN 10.6" Monitor Touch screen DVD/CD/MP3/MP4 2-DIN DVD Head Unit USB/SD AM/FM Radio Support Apple CarPlay Support Android Auto Support Bluetooth VRCPAA-106F...
-
Page 2: Table Of Contents
Content 1. Appearance --------------------------------------------- 3 2. Accessories and Installation --------------------------------- 3. Wiring Connection --------------------------------- 4. Front panel Description --------------------------------- 5. Remote Control --------------------------------- 6. Main Menu --------------------------------- 7. Settings --------------------------------- 8. Apple CarPlay & Android Auto --------------------------------- 9. Radio --------------------------------- 10. -
Page 3: Appearance
Trim Ring Android Auto Menu AV Center 2 DIN 10.6" Monitor Touch screen 2-DIN DVD Head Unit DVD/CD/MP3/MP4/ USB/SD AM/FM Radio Support Apple CarPlay Support Android Auto Support Bluetooth User Manual VRCPAA-106F Warranty Card ISO Cable Harness cable USB cable... - Page 4 Accessories & Installation Installation 4. Consult with your nearest dealer if installation requires the drilling of holes or other modification of the vehicle. 5. Install the car receiver in the dashboard. Dashboard 6. Connect the wire harness & antenna to the car receiver being carefully not to pinch any wires or cables.
-
Page 5: Wiring Connection
Wiring Parking wire 3. Swivel Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.. Note: To watch video the parking wire should be connected to brake signal. Parking brake lead Brown wire battery... - Page 6 Wiring Extraposition MIC jack Line Out (FR) Line Out (RR) Yellow Video Output1 Audio In (R) Radio antenna Yellow Video Input White ISO A ISO B Audio In (L) Yellow Video Output2 Yellow Back camera input white Line Out (RL) Green Subwoofer Out White...
-
Page 7: Front Panel Description
4.Front panel Description Front panel Front panel Press and hold to seek downward or upward. VRCPAA-106F [Disc/USB/SD Music] Press repeatedly to shift track previous or next for playback. Press and hold to active various fast rewind or fast forward speeds for playback. -
Page 8: Remote Control
5.REMOTE CONTROL Press it to increase or decrease the volume level. CP/AA Radio DISC It is UP /Down/Left/Right Arrow, use this button to select the menu item, ENTER the title track or to show next frame. [Radio] Press to seek upward/ downward. -
Page 9: Main Menu
7.Settings 6.MAIN MENU VRCPAA-106F is a 2-DIN car audio with Touch the icon to enter the Setup menu. following functions: The Setup menu is included System Settings, Apple CarPlay, Google Android Auto, Display Settings, Audio & EQ Settings, Disc &... - Page 10 7.Settings SWC: About To display the Unit Hardware and Firmware version. To set the Steering Wheel Control MCU: SOC: Hardware: Update Display Settings : Below is the Display setting menu, user can select Lighting Detect, Daylight Dimming Level, Night Dimming Level, Illumination and Wallpaper.
- Page 11 7.Settings Wallpaper 10-Band Equalizer : User can select the preset wallpaper or select 10 band of EQ tuning, slide the EQ bar to tune the picture in USB driver as the wallpaper. each band frequency level according to user preference. Touch Reset to set all Band to 0.
-
Page 12: Apple Carplay & Android Auto
7.Settings 8.CarPlay & Android Auto Connection: On/Off (Select Bluetooth 8.1 Apple Carplay connection on or off) Pairing : (To start the pairing) Plug the iPhone (iPhone 5 or latter models, and IOS 7.1 or above) through the lightening cable to the USB port of the source unit. The iPhone will be shown the “CarPlay”. -
Page 13: Radio
9.Radio mode 8.CarPlay & Android Auto 8.2 Android auto Operations Android Auto enables you to use functions of your Androd device convenient for driving. You can easily access route guidance, make calls, listen to music, etc. For details about Android Auto, visit https://www.android.com/auto Radio mode https://support.google.com/androidauto.,... -
Page 14: Usb
10.USB Store a Station Press to go to the next folder. 1 . Tune radio to desired station. Press to search Audio, Video or 2. Touch and hold the one of the preset Picture files. station for more than 3 seconds, then the preset button will be highlighted on Press to go to the previous folder. -
Page 15: Disc
11.DISC Touch to rotate the picture anti- DVD Playback clockwise for 90 degree (for picture The Video display can be watched only playback) during the Car is Parked. Touch to rotate the picture clockwise Parking wiring: High level (+12v or NC) is for 90 degree (for picture playback) driving;... -
Page 16: Bt Audio
Bluetooth Pairing Press Pairing the Pairing Mode screen will be shown as below: Bluetooth Music Playback Turn On the Bluetooth of the Mobile phone/ Bluetooth device, you can see the VRCPAA-106F. Select the VRCPAA-106F for pairing and connection. -
Page 17: Bt Phone
13.Bluetooth Phone Bluetooth Phone Touch the Phone icon in main menu to go to 4. To end the call, touch the icon Phone mode. After the mobile phone is on the screen. connected with the source unit via Bluetooth (HFP), user can through the source unit to 106F make a phone call. - Page 18 13.Bluetooth Phone Contacts 106F Touch the icon to access the phone book of the connected mobile phone. To make a call from the phonebook, simply touch the contact name. 106F VRCPAA-7DR Contacts 106F Interchange between phone and BT Setup source unit ON/OFF the Microphone function Display the Keypad.
-
Page 19: Specification
14. Specification General Power Supply ………………………….………………………………….……..…………. DC10~16Volts Grounding System …………………………………..……..……….………..…….. Negative Ground Current Drain ………………………………….…………………………...……..….……..……. 15A(Max.) Max Power Output …………………………………………….………………..……. ..4×75W/channel RMS Power Output ……………………………………………………………………..4x25w/channel Speaker Impedance ……………………………………..…..…………….. 4~8ohms per channel Frequency Response……………………………………..……….………………………. 20Hz~20KHz Operating Temperature …………………………………..………………....-20~+60℃ Dimensions ……………………………………..… 255mm(W)x250mm(D)x175.1mm(H) TFT Display TFT Screen size…………………………………………..……………………….…………………... -
Page 20: Av In
15.AV IN 16.Camera AV IN Touch the to pop up the function bars The Audio/Video source with RCA cable can and touch to view the playing Front camera. through the source unit to play the Audio/ Video. Plug the RCA to the corresponding A/Vsocket. -
Page 21: Fcc Notes
FCC Notes WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
