Soundstream VR-75XB Owner's Manual

Soundstream VR-75XB Owner's Manual

Dvd/cd/mp3/mp4 player
Hide thumbs
Table of Contents

Advertisement

Quick Links

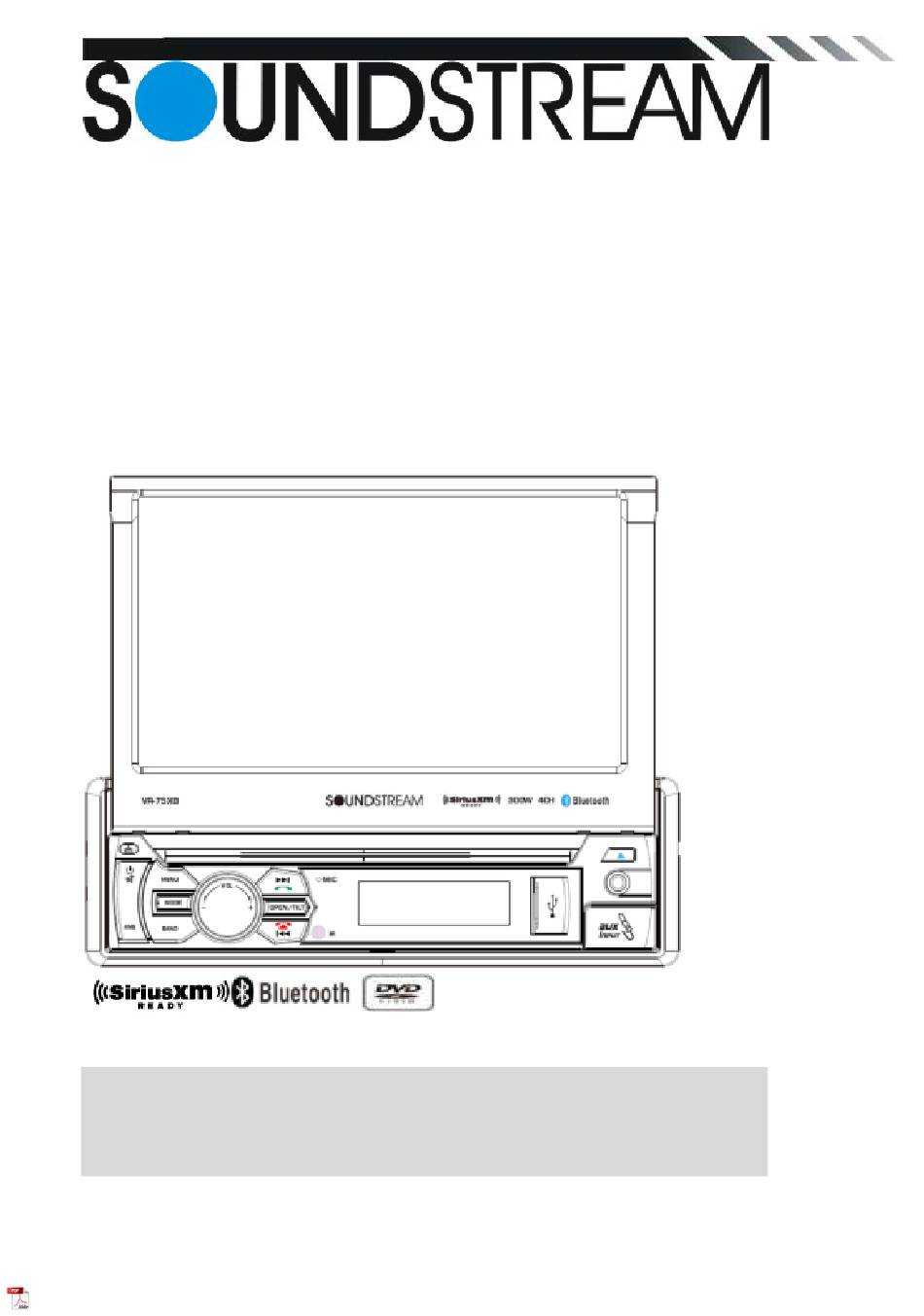

VR-75XB
In DIN 7' Touch screen
DVD/CD/MP3/MP4 Player
AM/FM Radio
Support Bluetooth
Support
SiriusXM-Ready
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR-75XB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soundstream VR-75XB

Summary of Contents for Soundstream VR-75XB

  • Page 1 VR-75XB In DIN 7' Touch screen DVD/CD/MP3/MP4 Player AM/FM Radio Support Bluetooth Support SiriusXM-Ready Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ..........................2 OPERATION PRECAUTIONS ....................2 CONTENTS ..........................3 ACCESSORIES .......................... 4 UNIT INSTALLATION AND REMOVAL..................5 WIRING CONNECTIONS ......................6 FRONT PANEL .......................... 8 REMOTE CONTROL ......................10 REMOVE BATTERY ....................... 12 MAIN MENU ..........................13 ◆ RADIO ..........................13 ◆...

  • Page 4: Accessories

    ACCE SSORI Package c contains th he followin g accesso ries for ins stallation a nd operatio on of the u unit. (1) Wash her, Spring each Wash her, M5 Nu (2) Metal l Mounting g Strap 1 (3) Hex B Bolt (4) Screw Max.

  • Page 5: Unit Installation And Removal

    INSTAL LLATIO ON / UN- -INSTAL LLATIO Note Before sta arting insta allation of t he unit, ma ake sure th he wiring is s connecte ed properly Use only t the parts p provided w ith the unit t to ensure e proper ins stallation.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS Make sure you have good chassis ground. A good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.
  • Page 7 Connecti ng the rev versing lin ne to taillig ght on the e car After conn necting, wh hen you sta art up the r reverse ge ear, the un it will recei ive the pict ture from c rear view camera.

  • Page 8: Front Panel

    FRONT PANEL 5 6 7 16 17 9 10 11 12 13 1. TFT display 2. Release Button Press to detach and release the front panel. When release the unit will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel.
  • Page 9 Press menu button to go into home page. 6. BAND Button In Radio mode, press to change radio band in sequence of FM1 → FM2 → FM3 →AM1 →AM2 . 7. MODE Button Press it to select different input mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), Bluetooth, and AV 8.

  • Page 10: Remote Control

    REMOTE CONTROL 1. POWER Power it on or off. 2. MODE button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit) and AV IN. 3.
  • Page 11 Use the buttons to select the menu item. The title it track or to show next frame. 10. ENTER button Press it to confirm selection or setting. 11. Cursor buttons Use the buttons to select the menu item. The title it track or to show next frame. 12.

  • Page 12: Remove Battery

    Press it to Stop playback from the current position, press it again to final stop to the very beginning. Press PLAY/PAUSE button to play. Press and hold for two seconds to set PBC on/ off in VCD mode. 26. OSD button In DVD mode press it to enter the OSD menu, press and hold for 2 seconds to set video setup.

  • Page 13: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 14: ◆Dvd Player

    ◆DVD PLAYER To start DVD Player, tap on DVD icon from main menu screen. TOUCH SCREEN MENU In DVD mode, touch it can choose Repeat chapter =>repeat title =>repeat off. In VCD mode, touch it can choose Repeat REP 1 => REP DIR => REP ALL. Touch it to skip to the next track.

  • Page 15: Setting Contr O

    SD/MMC Card To play MP3/ MP4/ WMA/JPEG files on a SD/MMC card, insert the card into the card slot (you should press the Open button on the panel to flip down front panel and insert the SD/MMC card into card slot.) The unit will play automatically MP3/MP4/ WMA/JPEG files. Or repeatedly press the MODE button to select SD mode.

  • Page 16: Display Se Tti N G

    Sound EQ: User→Flat→Classic→Pop→Rock→User. BALANCE/FADER: Adjust the balance and fader to left or right. BEEP: Select keypad sound on or off. LOUD: Select loud on or off. LOUD LEVEL: Adjust the loud level SUBWOOFER: Turn subwoofer on or off. SUBWOOFER LPF:80HZ →120HZ→160HZ SUBWOOFER LEVEL: Adjust the subwoofer level Display BACK LIGHT: Adjust the screen backlight to LOW-...

  • Page 17: Dvd Setti Ng

    UNLOCK ALL CHANNELS: Select this to unlock all channels. LOCK/UNLOCK CHANNELN SET: Select this to lock or unlock selected channels. CODE CHANGE: Select this to change the parental lock code. The initial password is "0000". Follow the prompts to change the password. DEFAULT: Select this to default the parental code back to the initial password of “0000”.

  • Page 18: Siriusxm Setting

    SiriusX XM Vehic cle Tune er Conne ections SiriusXM Satellite R Radio opera ation reqiu red the co nnection o of the Sirius sXM-Conn nect Vehicle Tuner(sol d separate ely). Note:The SiriusXM- Connect V Vehicle Tun ner must h ave the Si riusXM log go to be co ompatible w...
  • Page 19 *To enter a 4 Digit code, choose from the two options as below: Enter the 4 Digit code using the remote control, by press the numbers directly. The default code is “0000” if the code has not been changed with the “CODE CHANGE” feature.

  • Page 20: Bluetooth Section

    SiriusXM Advisory Messages Message Description Ensure the SiriusXM antenna cable is connected to the SiriusXM tuner correctly. Check the SiriusXM antenna wire for breaks or sharp bends. Check Antenna Replace the antenna if necessary. Press RESET located on the top left corner of the front panel. If the message remains, the antenna may have been damaged.
  • Page 21 When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual,after searching new device(SoundStream), select it, input password "0000" and confirm ok, device paring is finished.

  • Page 22: Aux-In Mode

    3. In calling/Out calling mode Tap In calling button or Out calling to see received and dialed calls.The unit can download automatically all the date from the mobile Phone.Dialed/Received/Missed calls are saved In History mode .Tap Up/Down arrow load previous/next history record.The calls in each category are saved from the latest one to the final one.Select a number and tap Send button to enter calling mode.

  • Page 23: Notes On Disc

    NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store of purchase (No sound is produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 25: Trouble Shooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCHES THE IGNITION NO POWER KEY TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/ VCD/ MP3/MP4/VIDEO /CD/CD- Compatible formats: R/-RW/DVD±R/±RW/PICTURE PLAYBACK Dimensions (W x D x H) / weight: 178*170*50mm/2 kg Working temperature range: -10℃...
