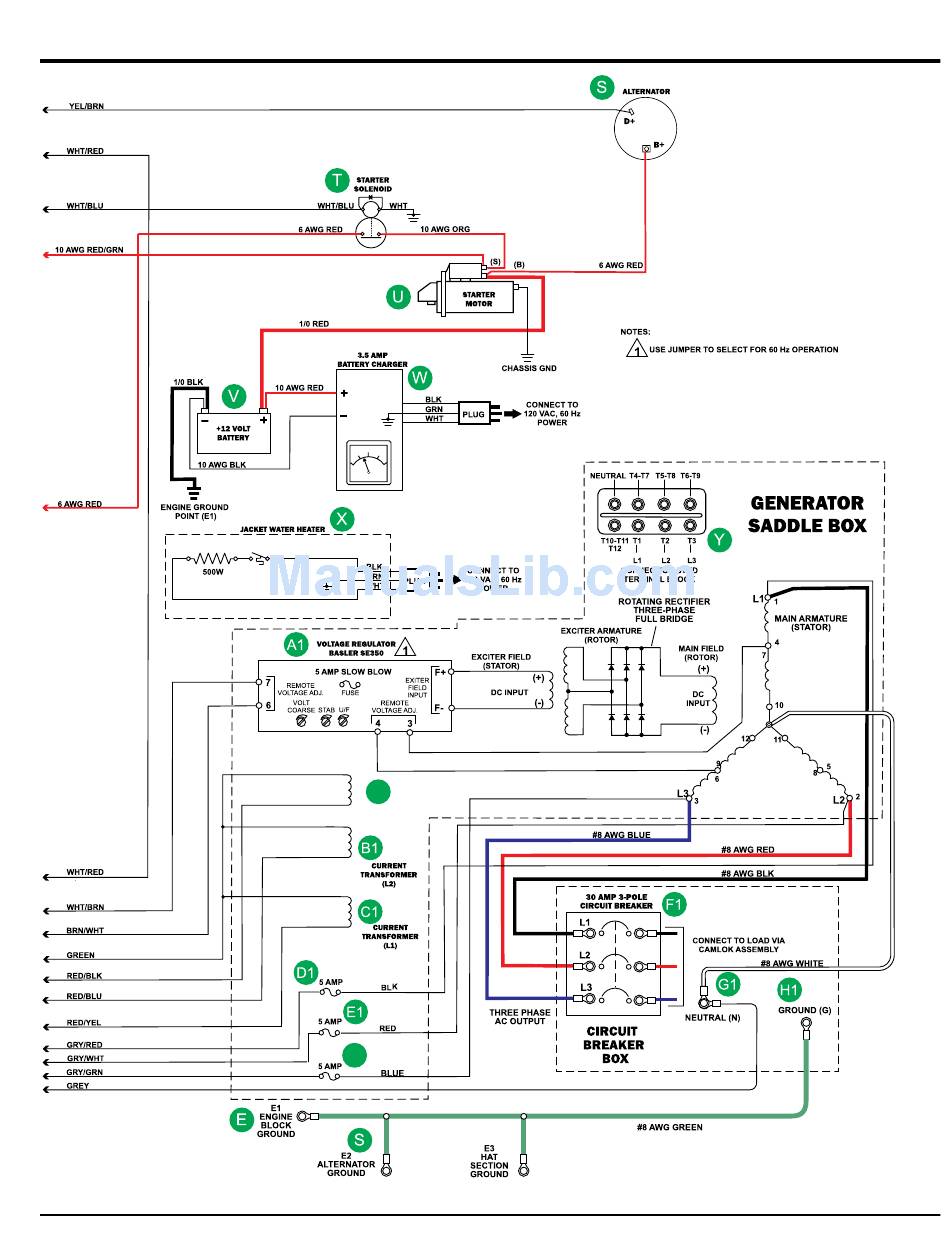

gEnEratOr WIrIng DIagraM (thrEE PhaSE)
K1
50:5
CURRENT
TRANSFORMER
(L3)
50:5
50:5
J1
MQp20p STaNDBY geNeRaTOR • OpeRaTiON aND paRTS MaNual — Rev. #1 (11/28/11) — page 45
