16 Application of FIR Filters to Loudspeaker Crossovers
The remaining two LR crossover graphs in Fig. 17.6 show the
reversed-polarity on-axis response and the ±25° off-axis response.
note that when the tweeter leads are reversed, the response exibits a
deep null at the 3 kHz crossover. However, the null is also accompanied
by a wide two-octave depression in response. The second graph of the
pair shows the 25° off-axis null due to driver spacing. Not surprisingly,
the response is similar to the on-axis response when the polarity
is reversed.
10
0
-10
-20
-30
20 100 1k
Frequency - Hz
10
0
-10
-20
-30
20 100 1k
Frequency - Hz

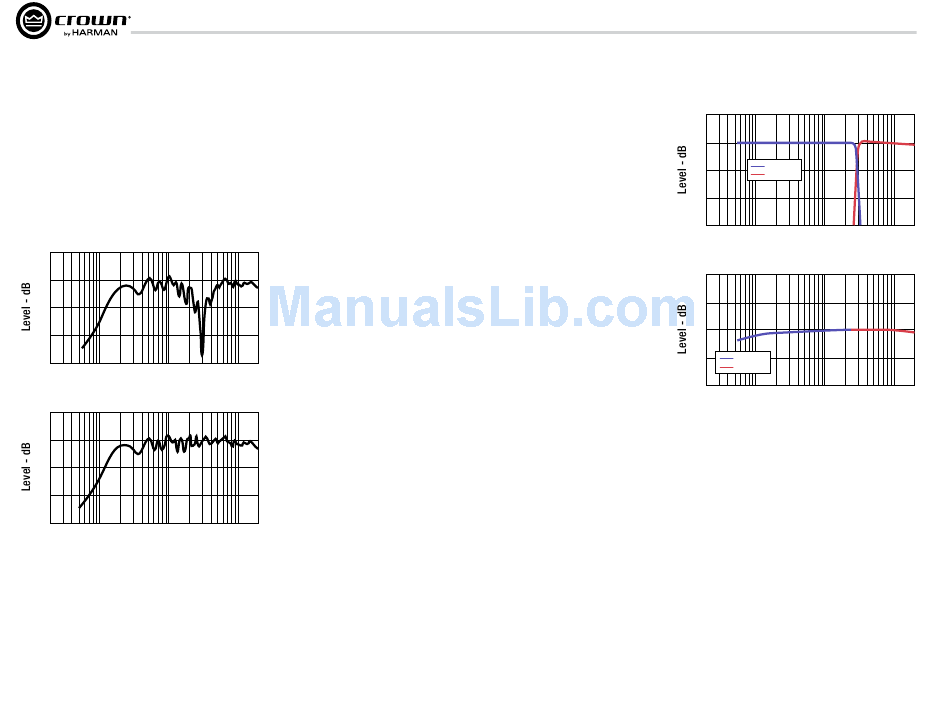

Fig. 16.6 Reversed-polarity on-axis response (left) and ±25° off-axis
response of a two-way system with a 4th-order 3 kHz crossover.
page 64

16.13 FIR Measurements

The Crown I-Tech HD amplifier was used to create a linear-phase FIR
crossover with a 3.67 ms latency. This latency allows crossovers to be
created with filters whose corner frequencies can extend down 500 Hz.
Selections of higher latencies allow sharper cutoff filters to be created
with correspondingly lower corner frequencies. FIR filters with
latencies from 0.92 ms up to 29.33 ms can be created with the
amplifier's software with minimum corner frequencies ranging from 2
kHz down to 62.5 Hz. the 3.67 ms latency FIR filter provides a relatively
sharp rolloff filter with reasonably short latency.
Figure 7 shows two graphs illustrating the measured frequency
response magnitude (left) and phase (right of the 3.67 ms latency FIR 3
kHz crossover generated by the HD amplifier. The right graph shows
the measured phase of the crossover with the phase rotation due to the
latency and speaker-to-microphone transit time subtracted out. It
shows a linear zero-phase characteristic over most the measured
range.
Note the extremely fast filter rolloffs in the left graph which approach
150 dB/octave and the exceptionally-narrow one-third octave
10k 20k
crossover span.
10k 20k
I-Tech HD DriveCore Series Power Amplifiers
10
0
Low Pass
-10
High Pass
-20
-30
20 100 1k
Frequency - Hz
10
0
-10
-20
Low Pass
High Pass
-30
20 100 1k
Frequency - Hz
Fig. 16.7 Magnitude (left) and phase (right) of a 3.66 ms latency 3 kHz
FIR crossover filter generated by an I-Tech HD amplifier.
Figure 16.8 shows the measured individual driver responses of the
same two-way system driven by the FIR crossover as produced by the
Crown I-Tech HD amplifier and the resultant summed 1m on-axis
response. Note the extremely sharp filter rolloffs in the left magnitude
graph. Note also that the right on-axis response is essentially identical
to the previous LR on-axis response.
Operation Manual
10k 20k
10k 20k
