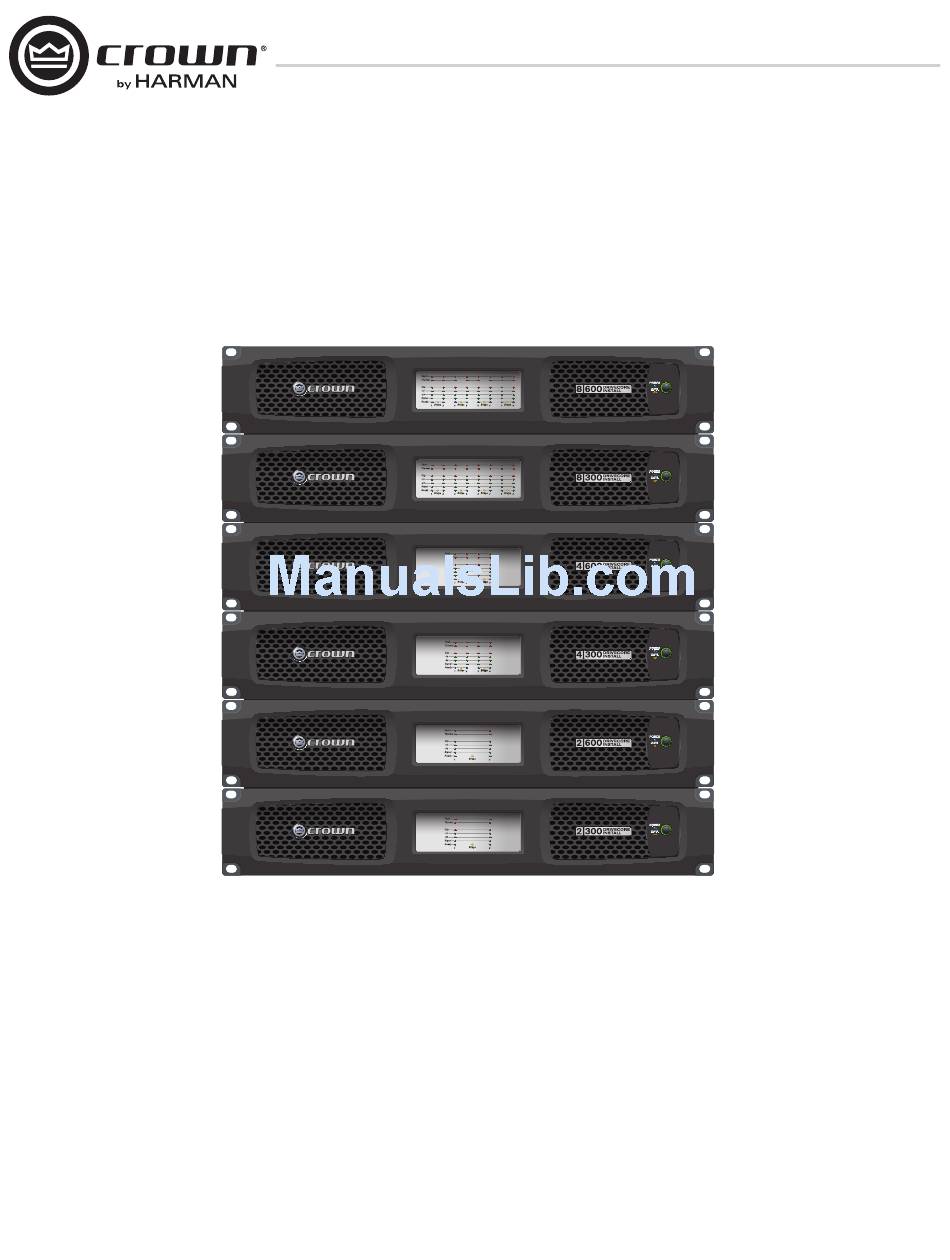

DCi Series – Analog Input Models
Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need
assistance locating your local distributor, please contact Crown at 574-294-8000.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during
installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To obtain the latest
version of this manual, please visit the Crown website at www.crownaudio.com.
Trademark Notice: Com-Tech, BCA, Crown, Crown Audio, Amcron and Multi-Mode are registered trademarks of Crown International. DriveCore, DriveCore Install,
IQwic, PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective owners.
Some models may be exported under the name Amcron
© 2012 by Harman International
®
Operation Manual
®
, Inc. 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: 574-294-8000
DCi 8|600
DCi 8|300
DCi 4|600
DCi 4|300
DCi 2|600
DCi 2|300
5031123_B - 08/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crown DCi 8|300
Summary of Contents for Crown DCi 8|300
-
Page 1: Operation Manual
Crown website at www.crownaudio.com. Trademark Notice: Com-Tech, BCA, Crown, Crown Audio, Amcron and Multi-Mode are registered trademarks of Crown International. DriveCore, DriveCore Install, IQwic, PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective owners. -
Page 2: Important Safety Instructions
DCi Series Power Amplifiers Important Safety Instructions 1. Read these instructions. WATCH FOR THESE SYMBOLS: 2. Keep these instructions. The lightning bolt triangle is used to alert the user to the risk of electric shock. 3. Heed all warnings. The exclamation point triangle is used to alert the user to important 4. -
Page 3: Declaration Of Conformity
United Kingdom Equipment Type: Commercial Audio Power Amplifiers Family Name: DCi Model Names: DCi 2|300, DCi 2|600, DCi 4|300, DCi 4|600, DCi 8|300, DCi 8|600 EMC Standards: EN 55103-1:2009 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment... -
Page 4: Table Of Contents
Protection System ..........................15 Troubleshooting ..........................16 DCi Specifications ..........................19 AC Power Draw and Thermal Dissipation ....................21 Service ............................27 Warranty ............................29 Crown Audio Factory Service Information ....................30 Product Registration .......................... 31 Operation Manual page 4... -
Page 5: Welcome
DCi Series Power Amplifiers Welcome Thank you for purchasing a new Crown DriveCore install ™ Series installation amplifier, one in a complete line of high-performance amplifiers based on exclusive DriveCore™ technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. -
Page 6: Installation
DCi Series Power Amplifiers Installation Unpacking Unpack your amplifier and inspect for any damage that may have occurred during transit. If damage is found, notify the shipping company immediately. Only you can initiate a claim for shipping damage, though Crown will be happy to help as needed. If the product arrived showing signs of damage, save the shipping carton for the shipper’s inspection. -
Page 7: Set-Up And System Configuration
DCi Series Power Amplifiers Set-up and System Configuration Figure 3 Wire Input Connectors Crown recommends using pre-built or professionally wired balanced line (two-conductor plus shield). Balanced wiring provides better rejection of unwanted noise and hum; however, unbalanced line may also be used. For more information, refer to the Crown Amplifier Application Guide, available online at www.crownaudio.com. - Page 8 DCi Series Power Amplifiers Set-up and System Configuration Connect Loudspeakers and Configure for Loudspeaker Load Determine load impedances and power requirements Before making any connections, carefully check and review the total impedance for loudspeaker systems to be connected to each amplifier output. If multiple loudspeakers are connected to one output (in series, parallel or series-parallel) for Lo-Z operation, be certain the total system impedance is within allowed specification for the output.
- Page 9 DCi Series Power Amplifiers Set-up and System Configuration Bridge Mode (16, 8, or 4 Ohm) Typical input and output wiring, along with Attenuator and Mode DIP Switch settings are shown in Figure 7. Make sure the “Hi-Z” selector switches are in the OFF (down) position and the Bridge (BRG) switch is in the ON (up) position.
- Page 10 DCi Series Power Amplifiers Set-up and System Configuration Dual Mode Hi-Z (70V/100V) Typical input and output wiring, along with Attenuator and Mode DIP Switch settings are shown in Figure 8. Make sure the “Hi-Z” selector switches are in the ON (up) position and the Bridge (BRG) switch is in the OFF (down) position.
- Page 11 DCi Series Power Amplifiers Set-up and System Configuration Bridge Mode Hi-Z (140V/200V) Typical input and output wiring, along with Attenuator and Mode DIP Switch settings are shown in Figure 9. Make sure the “Hi-Z” selector switch for the connected input channel is in the ON (up) position and the Bridge (BRG) switch for the channel pair also is in the ON (up) position.
- Page 12 DCi Series Power Amplifiers Set-up and System Configuration Connect to AC Mains Connect your amplifier to the AC mains power source (power outlet) using the supplied AC power cord set. First, connect the IEC end of the cord set to the IEC connector on the amplifier;...
-
Page 13: Front & Back Panel Features
AMP STATUS Accepts up to 10 AWG wire or unless the amplifier is in any of terminal forks. these conditions: OFF, SLEEP, or Note: This image reflects the DCi 8|300 back panel FAULT. (see Page 14) Operation Manual page 13... -
Page 14: Global & Per Channel Settings
DCi Series Power Amplifiers Global Settings 70/100 VRMS (switch A) This switch selects either 70 or 100 VRMS operation for all outputs currently selected for Hi-Z mode. (See the section below, Hi-Z.) Default position is 70 V (OFF). In 70 V and 100 V mode, a voltage limiter circuit is enabled. -
Page 15: Protection System
DCi Series Power Amplifiers Protection System Thermal Indicator If the amplifier becomes too hot for safe operation, the channel that is generating too much heat will be shut down until the temperature drops below the thermal limit. The front-panel thermal indicator will illuminate at 80 degrees Celsius, indicating the onset of compression affecting the audio signal. The amplifier will continue to run in this state until either the temperature is reduced to a safe operating range, or if the temperature continues to rise, the channel will shut off to protect itself above 98 degrees Celsius. -
Page 16: Troubleshooting
DCi Series Power Amplifiers Troubleshooting CONDITION: Power indicator Mains indicator is on. is off. POSSIBLE REASON • The amplifier’s Power switch is off. “Off/Flashing/On” above means that the LED can be off, or flashing, or on. CONDITION: Power indicator Mains indicator is off. is off. - Page 17 DCi Series Power Amplifiers Troubleshooting CONDITION: Distorted sound. POSSIBLE REASON: • Load is wired incorrectly or Stereo/Bridge mode switch is set incorrectly. Check both. • Input is overloaded by a signal level that is too high. Turn down your amplifier level controls, or turn down the input signal, until “Off/Flashing/On”...
- Page 18 DCi Series Power Amplifiers Troubleshooting CONDITION: No input signal. Signal indicator is not flashing even though audio is applied, and the channel is ready.. POSSIBLE REASON: • Input signal level is very low. “Off/Flashing/On” above means that the LED can be off, or flashing, or on. CONDITION: Bridge LED is lit.
-
Page 19: Dci Specifications
DCi Series Power Amplifiers DCi Specifications Dual-Mode - All Channels Driven DCi Model Channels 2 Ohms 4 Ohms 8 Ohms 16 Ohms 70Vrms 100Vrms 2|300 150W 300W 300W 150W 300W 300W 2|600 300W 600W 600W 300W 600W 600W 4|300 150W... - Page 20 DCi Series Power Amplifiers DCi Specifications Dimensions DCi Model Width Height Depth 2|300 19 in. (48.3 cm) 3.5 in. (8.9 cm) 14.25 in. (36.2 cm) 2|600 19 in. (48.3 cm) 3.5 in. (8.9 cm) 14.25 in. (36.2 cm) 4|300 19 in. (48.3 cm) 3.5 in.
-
Page 21: Ac Power Draw And Thermal Dissipation
AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 2300 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line Power Dissipated as Heat... - Page 22 DCi Series Power Amplifiers AC Power Draw and Thermal Dissipation AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 2600 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line...
- Page 23 AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 4300 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line Power Dissipated as Heat...
- Page 24 DCi Series Power Amplifiers AC Power Draw and Thermal Dissipation AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 4600 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line...
- Page 25 AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 8300 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line Power Dissipated as Heat...
- Page 26 AC Power Draw and Thermal Dissipation: Pink noise 12dB crest factor, bandwidth limited 22Hz to 22kHz. Typical line impedance used. Data based on all channels driven. DCI 8600 - Bridge 120 V~ 60 Hz 230 V~ 50 Hz Line Power Dissipated as Heat...
-
Page 27: Service
Complete the Crown Audio Factory Service Information form, in the back of this manual, when returning a Crown product to the factory or authorized service center. The form must be included with your product inside the box or in a packing slip envelope securely attached to the outside of the shipping carton. - Page 28 5. Record the SRA number for future reference. The SRA number can be used to check the repair status. Packing Instructions Important: These instructions must be followed. If they are not followed, Crown Audio, Inc. assumes no responsibility for damaged goods and/or accessories that are sent with your unit.
-
Page 29: Warranty
DCi Series Power Amplifiers Warranty SUMMARY OF WARRANTY Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship. -
Page 30: Crown Audio Factory Service Information
DCi Series Power Amplifiers Crown Audio Factory Service Information Shipping Address: Crown Audio Factory Service, 1718 W. Mishawaka Rd., Elkhart, IN 46517 PLEASE PRINT CLEARLY SRA #: ______________________ (If sending product to Crown factory service.) Model: ______________________ Serial Number: _________________________ Purchase Date: ____________________... -
Page 31: Product Registration
DCi Series Power Amplifiers PRODUCT REGISTRATION Crown Audio, Inc. 1718 W. Mishawaka Rd. Elkhart, IN 46517-9439 Phone: 574-294-8000 Fax: 574-294-8329 www.crownaudio.com Warranty is only valid within the country in which the product is purchased. When this form is used to register your product, it may be mailed or faxed.
