7 Advanced Operation
7.7.3 Input Level, Fades, Mute, Link, I/O Level Meters, and Indicators

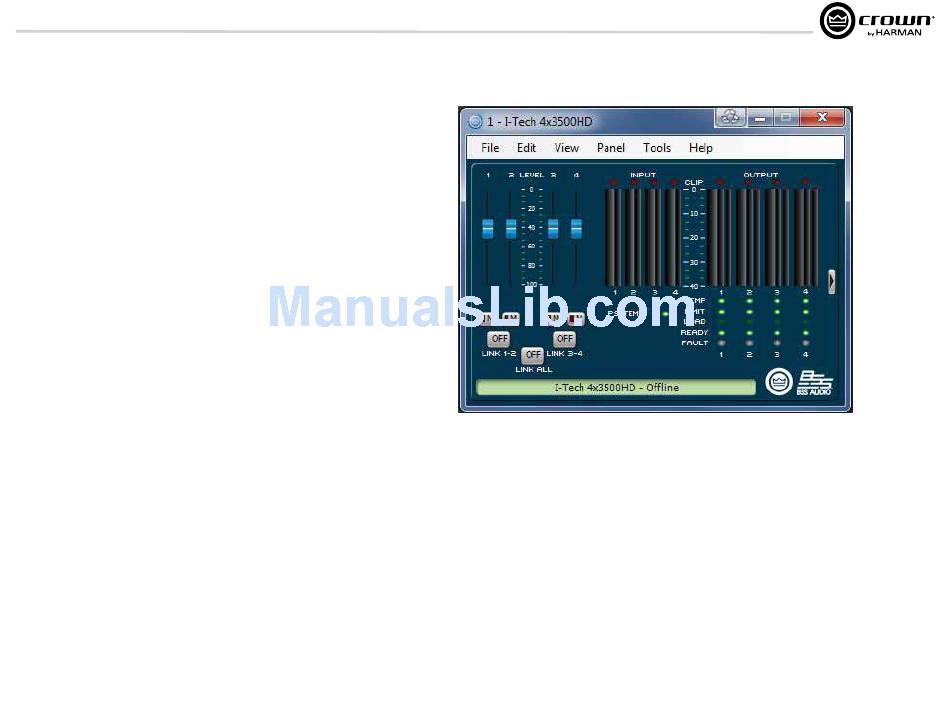

This panel is on the left side of the I-Tech HD's main control panel shown above. Channels 1, 2, 3,
and 4 Level Controls set the input signal level of each channel. Each channel can be muted, and
both faders can be linked with the Link button.
input Signal Level Meter (green)
The measure ment range is from 0dBFS to –40dBFS with 0.5dB resolution. Each audio channel
has the following monitors:
• Switched Audio Input: This meter shows only the switched (selected) audio input after the
Input Audio Router.
• Clip Indicator
Output Signal Level Meter (blue)
The mea surement range is from 0 dB to –40 dB with 0.5 dB resolution. The monitors are scaled so
that 0 dB is referenced to the full rated output voltage of the amplifier. The wider left meter is rms
and the right meter is peak for each channel. An output clip indicator is provided.
indicators
Temp: Lights if the temperature of the amplifier is too high and the amplifier is near shutdown.
green: Thermal headroom used up is less than 59%.
Yellow: Thermal headroom used up is 60-80%.
Red: Thermal headroom used up is more than 81%.
Limit: Lights when the amplifier signal is being limited.
Load: Lights when the load impedance is out of range.
Ready: Lights when the amplifier is on and ready to supply power.
Fault: Lights when the amplifier is in a fault mode service may be required.
