I-Tech HD DriveCore Series Power Amplifiers
7 Advanced Operation

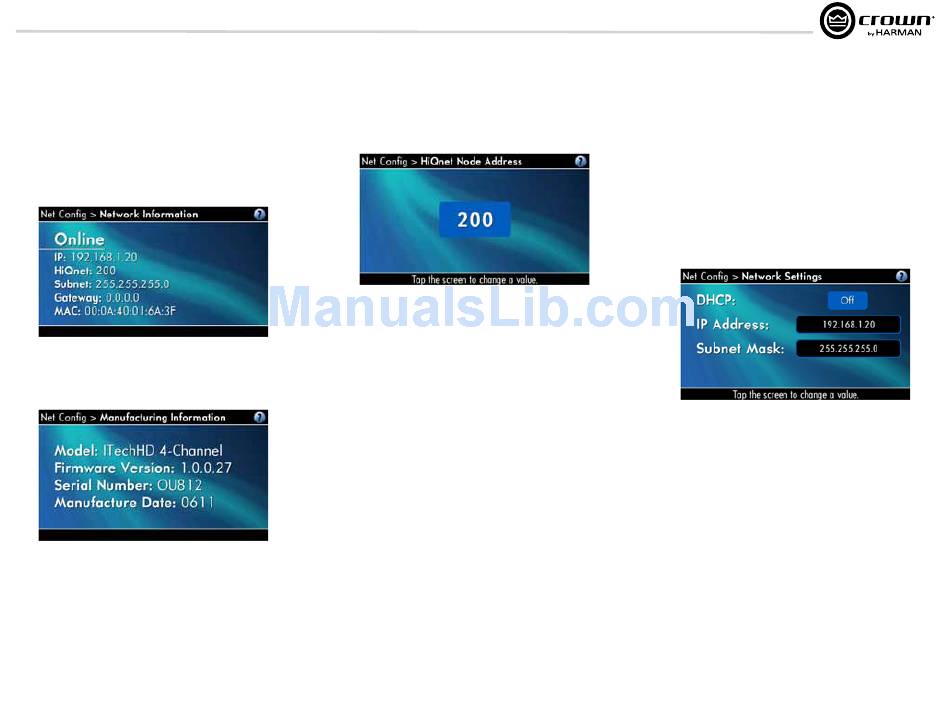

7.2.4 NETWORKING MENU
This menu has screens for setting up audio network parameters. Push an
Encoder knob to see the selections in the Networking Menu.
Network info: This screen displays information about the audio network: IP
address, HiQnet address, Subnet and MAC address. Section 12 of this manual
explains these terms.
Manufacturing info: This screen displays information about your I-Tech HD
amplifier: model number, firmware version, serial number, and amplifier date
code.
Operation Manual
HiQnet Node Address: This screen lets you set the HiQnet address of this
amplifier (a node in the network). Tap icon, then turn an Encoder knob to set
the address, then press the knob to save your setting.
dHcP: Turn an Encoder knob to turn DHCP on or off, then press the knob to
confirm your selection. With DHCP enabled, the IP address of the amplifier
might change at power-up. See System Architect Help files for more
information on DHCP.
iP Address: You set the IP address of the amplifier here. See Section 12 for
more information on IP Address. This function is disabled when DHCP is
enabled.
1. Tap the Encoder knob icon to access the left three digits, then turn the knob
to set the number.
2. Tap the Encoder again to access the middle three digits, then turn the knob to
set the number.
3. Tap the Encoder again to access the next digit to the right, then turn the knob
to set the number.
4. Tap the Encoder again to access the right-most digit, then turn the knob to
set the number.
5. Tap the Encoder again to save the IP address.
Subnet Mask: You set the Subnet Mask of the amplifier here. See Section 12
for more information on Subnet Mask. This function is disabled when DHCP is
enabled.
1. Tap the Encoder knob icon to access the left three digits, then turn the knob
to set the number.
2. Tap the Encoder again to access the middle three digits, then turn the knob to
set the number.
3. Tap the Encoder again to access the next digit to the right, then turn the knob
to set the number.
4.Tap the Encoder again to access the right-most digit, then turn the knob to set
the number.
Tap the Encoder again to save the Subnet Mask.
