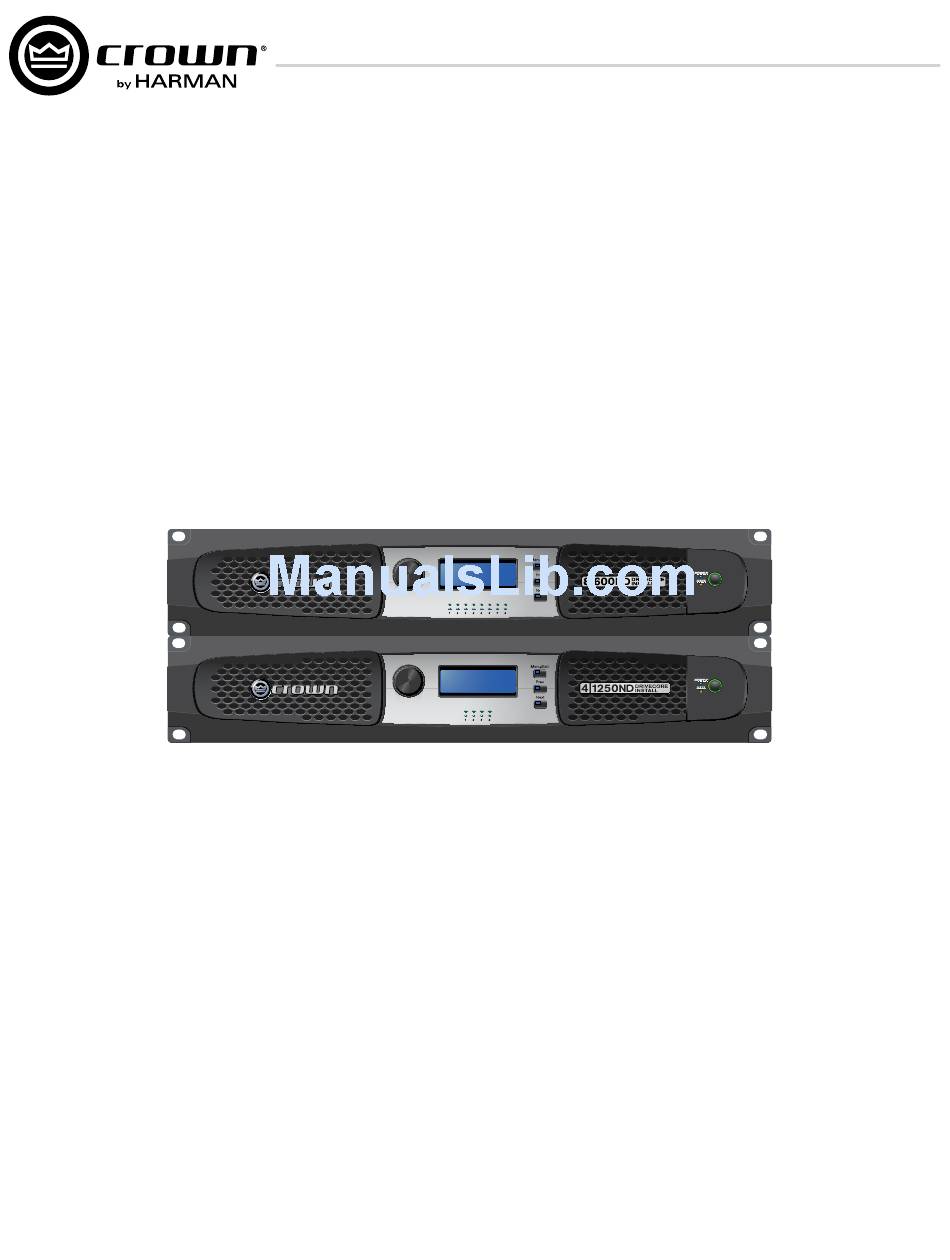

Crown DCi 8 Operation Manual

Network display models dci series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DCi Series – Network Display Models
Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need
assistance locating your local distributor, please contact Crown at 574-294-8000.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during
installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To obtain the latest
version of this manual, please visit the Crown website at www.crownaudio.com.
Trademark Notice: Com-Tech, BCA, Crown, Crown Audio, Amcron and Multi-Mode are registered trademarks of Crown International. DriveCore, DriveCore Install, IQwic,
PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective owners.
© 2014 by Harman International

Operation Manual

, Inc. 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: 574-294-8000
®
Thermal
Clip
–10
Signal
Ready
Fault
Signal
Thermal
Clip
–10
Signal
Ready
Fault
Signal
DCi 8|600ND
DCi 4|1250ND
5038682 - 04/14
