Summary of Contents for Doro 670R

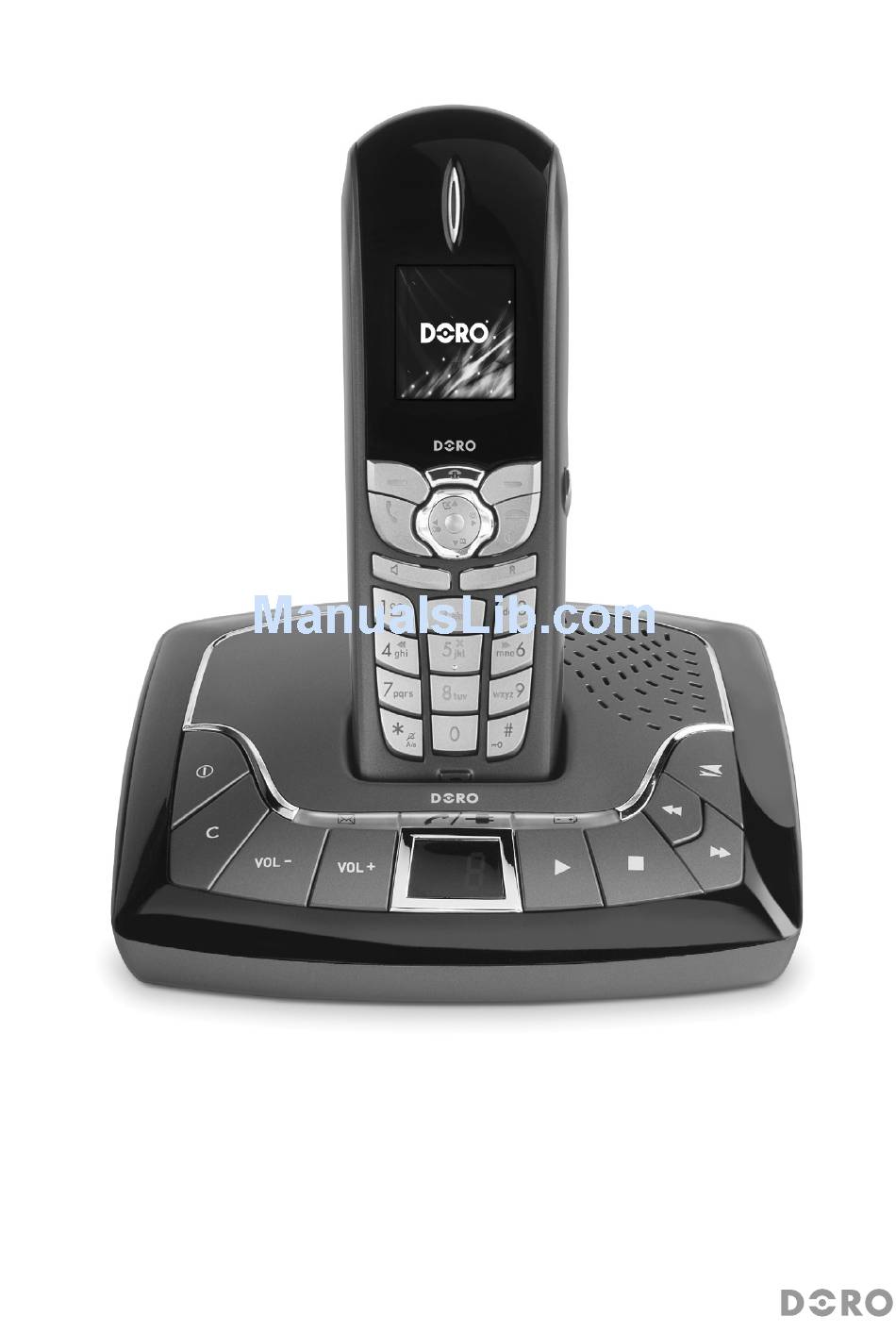

- Page 1 670/680R...
- Page 2 680R English 1 Messages/Network and key guard 13 TAM functions, refer services to description in the 7 Recall button Answering machine 2 Left menu button/Back/ 8 Headset connector chapter Internal call 9 Disconnect and off/on 14 Message indicator/display 3 Talk button 10 Right menu button/OK 15 Paging 4 Speaker button (or Hands 11 Scroll button free button) 16 Indicators, see Installation 12 Answering machine off/on chapter and ringer off/on...
-
Page 3: Table Of Contents
English Connection ..........1 Game ............13 Range ............2 Other settings in the handset ....13 Battery ............2 Register a new handset ......14 Base unit indicators ........2 System settings ..........14 Handset indicator ........2 Expanded system ........15 Making a call ..........4 Answering machine (680R only) ....16 Receiving a call ...........4 Switching the answering machine on/off .16 Recall (R) button .........4 Outgoing message ........16 Volume control ..........4 Screening ............16 Turning off/on ..........4 Playback of message in base unit ....17 Redial function ..........4 Playback of messages in handset ....17 Mute button ..........4 Answering machine settings .....18 KeyGuard ............4... -
Page 4: Range
This is to minimize the risk of interference. It is normal for the device to become warm during charging and not dangerous. Use only DORO original batteries. The guarantee does not cover any damage caused by incorrect batteries. Base unit indicators Flashes when new SMS message received. - Page 5 English The display Indicator Function Shown within the base unit range. Flashes when out of range. Alarm activated. Speaker function. Handset is connected (during calls). Headset being used. Ringer off. Microphone muted. KeyGuard activated. Battery charge indicator. New SMS* received. New number received. Messages indication*. 680R only: (upper row) Illuminated when answering machine is on. (lower row) New message on answering machine. *Only functions in certain countries.
-
Page 6: Making A Call
English Making a call 1. Enter the required number. 2. Press , the number is dialled. Press to terminate call. Receiving a call 1. Wait for the handset to ring. 2. Press to answer. Press to terminate call. Please note! To switch between handset/handsfree press . Please remember that in speaker mode, it is only possible for only one person at a time to talk. This product does not usually ring on the first signal to allow correct matching to the phonebook. -
Page 7: Phonebook
English Phonebook 200 telephone numbers (max. 24 digits) with names (max. 15 letters) can be stored in the handset phonebook. If you subscribe to a caller ID service the name in the phonebook will be displayed for incoming calls. You can also select different ring signals for different groups of numbers that are stored in the phonebook. Letters Each number key has been allocated certain letters. The phonebook is arranged according to the order of the buttons, which is not the same for all languages............[Space] ............Switch between upper/lower case letters (press & hold) ......Pause in telephone number Save name/number in handset 1. Press . Press Option. 2. Scroll to New Entry. Press OK. 3. Press equivalent digit key one or more times for desired name. Press 4. Enter the telephone number, including the area code. Press OK. 5. Press OK to save or scroll with to store a mobile phone number or assign the position to a speed dial number* or call group. *To dial a speed dial number press down the equivalent button Note! If the spelling help(see SMS chapter) is activated, it will actually make the storing of names in phonebook more difficult. - Page 8 English Managing the phonebook 1. Press 2. Scroll through the entries using . You can quick search the phonebook by pressing the equivalent number key for the first letter. 3. Press to make a call or press Option for the following: New Entry see description on the previous page. Edit Entry - revise information. View to see stored information. Copy/Copy All to duplicate positions on other handsets. Delete Entry/Delete All. Capacity shows the number of free positions. Edit Call Group to select a certain image/ring signal for certain numbers. Call. 4. Press OK. Shared phonebook The phonebook in the base unit is shared by all handsets and has 10 positions which only need to be saved once regardless of the number of handsets. Useful telephone numbers may be pre-programmed in certain models. However these numbers may not match with caller identification for name/ ringtone. 1. Press Menu. 2. Scroll to Network Services. Press OK.
-
Page 9: Sms Messages
SMS messages This feature requires a current Caller Id subscription to be in place and only applies to text message users (SMS). The memory will store up to 30 messages, the maximum number of characters per message is 160. A new SMS message is indicated with the text New SMS Message and Please remember individual SMS features are country dependent and will vary or be unavailable. Further details regarding the SMS text message service are available from you local network provider. Australia only Short Message Service (SMS) facilities have been automatically activated for most Telstra® telephone services across Australia. SMS services may not be available to, or between, other service providers networks. A description of the SMS service provided by Telstra® can be found at: http://www.telstra.com.au/talkingtext There is no need to register your telephone with the Telstra® fixed line SMS service as your DORO telephone is supplied pre-configured. When you send your first text message the Telstra® network will automatically accept and deliver it (providing the destination offers a compatible service). Settings for your Telstra® fixed line SMS service can be changed by calling 0198 339 999 and following the prompts. UK only Program the correct SMS Center numbers as described on next page under the section Entering the telephone numbers in SMS centre/network. E.g. for BT: SMS-Center 1 (sending): 147017094009 SMS-Center 2 (receiving): 0800587529 To register for the SMS text messaging service you can either send a text message to another telephone number, or text REGISTER to 00000. Should you wish to reset your SMS settings text RESET to 00000. You can also request a delivery report by entering * 0 # prior to any SMS message. - Page 10 English Read new SMS/inbox 1. Press Menu. 2. Scroll to SMS. Press OK. 3. Scroll to SMS Inbox. Press OK. 4. Scroll to required entry. Press Read. 5. Read your message. Press Option. 6. Scroll to the required option: Delete/Delete All, Reply, Forward, Use Number (for e.g. dialling), Save Number. 7. Press OK and follow the instructions in the display. Writing messages 1. Press Menu. 2. Scroll to SMS. Press OK. 3. Scroll to Write Message or Write E-mail*. Press OK. 4. Write your message. Press the equivalent digit key once/several times for the first letter............[Space] ............Switch between upper/lower case letters 5. Press Option. Scroll forwards if you want to send or save the message. Press OK. 6. Enter the telephone number including the area code, or press Option to retrieve the telephone number from the phonebook.
-
Page 11: Calls Log (Caller Identification*)
English Calls Log (caller identification*) The display shows the caller before you answer, or you can view the 30 most recent incoming callers. New numbers are indicated with the text New Calls as well as the symbol above. If one and the same number calls in more than once it will be saved in only one entry. Please note! *This function requires a subscription from your network service provider. The button flashes on the handset as well when there is some form of new message. Press button to access the different messages. Retrieving and dialling incoming numbers. -
Page 12: Other Network Services
English Other network services The most common network/extra services can be accessed via the menu or using the menu buttons during a call. Some functions are pre-programmed but is not certain that all functions will work on delivery as this will depend on the country of installation/network. The functions available will depend on your network. You can change the codes that are sent, see below. You may have to pay extra for some services, contact your network for more information. Some services will not work unless you have contacted your network service provider to activate them. Using the R button manually 1. Connect an external call and wait until the timer is shown. Press R. -
Page 13: Audio Signals And Display
English Audio signals and display 1. Press Menu. 2. Scroll to Sound or Display. Press OK. 3. Scroll to desired function e.g. Display Contrast. Press OK. 4. Scroll to required setting. Press OK to save. Sound Ringtone The handset’s ring signal can be adjusted. The telephone may continue to ring for up to 8 seconds after answering a call when the handset is set to use one of the polyphonic ring tones (6-20). -
Page 14: English
English Game 1. Press Menu. 2. Scroll to Game. Press OK. 3. Scroll to desired game. Press OK. 4. Scroll to desired difficulty/game level (Level 1=easy, Level 4=difficult). 5. Press OK to start the game. Adder Game The object is to lead the snake to the small dots (apples) without colliding. The snake moves automatically and gets longer and longer as it eats each apple. Other settings in the handset 1. Press Menu. 2. Scroll to Setting. Press OK. 3. Scroll to Handset Settings. Press OK. 4. Scroll to required function e.g. Language. Press OK. 5. Scroll to required setting. Press OK to save. Direct Call This function allows you to dial a predetermined number by pressing any button (however not Option which allows you to disconnect this function). Select Base Only used in systems with more than one base unit. Language Language settings are explained in the Connection chapter. -
Page 15: Register A New Handset
English Register a new handset Every new handset must be registered in order to use a base unit. Every base unit can manage up to 5 different handsets. See also the Expanded Systems chapter for more information. 1. Enter Register HS (as detailed above) and scroll to a base unit. Press OK. 2. Enter the base unit PIN code (0000 on delivery). Press OK. 3. Hold down the base unit’s search button until a beep is heard. 4. If the registration is successful the handset will return to standby mode within one minute. System settings Enter PIN number (0000 when supplied). 1. Press Menu. 2. Scroll to Setting. Press OK. 3 Scroll to Base Settings. Press OK. 4. Scroll to required function e.g. Exchange Code. Press OK. 5. Scroll to required setting. Press OK to save. Ringer The base unit’s ring signals can be set at several different levels. Handset Priority You can decide whether all handsets should ring at once when there is an incoming call, or if one handset should start ringing before the others. You can set the number of ring signals for this function as well. -
Page 16: Expanded System
English Expanded system When you purchased the telephone, the handset was registered with the supplied base unit. The handset may have the call number 1, which will be seen in the display on standby. This number will be used also for internal calls between handsets. If you wish to use several handsets with one base unit, you should ensure that the base unit is placed “in the middle”, to evenly divide the base unit range among the handsets. You can register up to 5 handsets to one base unit. This model is GAP (Generic Access Profile) compatible, which means that the handset and the base unit can both be used with most other GAP compatible units irrespective of manufacturer. However the GAP protocol cannot guarantee that all functions may be accessed. Internal When using several handsets with the same base unit internal calls (intercom) can be made between those handsets. 1. Press Int. 2. Scroll to selected handset. Press OK. Should an external call come in while an internal call is in progress, a tone will be heard. You must then terminate the internal call by pressing , in order to be able to receive the external call by pressing Transferring calls/Conference 1. While an external call is connected on line. 2. Initiate an intercom call as described above. 3. Press to transfer the call or press Conf for conference. -
Page 17: Answering Machine (680R Only)
English Answering machine (680R only) When the answering machine is switched on, calls are answered after a set number of ring signals. Your outgoing message will be played, and the caller can leave a message. The recording capacity is 15 minutes. Switching the answering machine on/off Press (on the base unit) to switch the answering machine on/off. If the base unit’s display is flashing/showing the answering machine is disconnected. On/off from the handset 1. Press Menu. Scroll to TAM. Press OK. 2. Scroll to Answer On/Off. Press OK. 3. Scroll to required setting. Press OK. Outgoing message The outgoing message (max 1 min) is heard by incoming calls. There are two separate outgoing messages, one for answer only (callers cannot leave a message) and one for answer and record (normal). Example of an outgoing message: -“Hello and welcome to the Andersons. We’re unable to take your call right now, but if you leave a message after the tone we’ll call you back as soon as possible. Thanks for calling.” 1. Press Menu. 2. Scroll to TAM. Press OK. 3. Scroll to Answer Settings. Press OK. -
Page 18: Playback Of Message In Base Unit
English Playback of message in base unit The display of the base unit always shows the total number of messages in the memory, i.e. both old and new. The numbers of the base unit’s display will flash when there are new messages. Playback will always begin with new messages. 1. Press (base unit) to begin playback of all messages. 2. The following functions are available during playback: Button Function ..... Repeat/skip backwards...... Skip to next message. ■... -
Page 19: Answering Machine Settings
English Answering machine settings 1. Press Menu. 2. Scroll to TAM. Press OK. 3. Scroll to Answer Settings. Press OK. 4. Scroll to desired function e.g. Recording time. Press OK. 5. Scroll to required setting. Press OK to save. Answer Mode Select between normal answering function and answer only (callers cannot leave a message). Outgoing message Record and play back your outgoing message. Answer Delay Select the number of ring signals before the answering machine responds to incoming calls (2,4,6,8, Time Saver*). Message Alert Is heard at regular intervals when at least one new message is received. Recording time Enter the maximum recording time for messages. Change Remote PIN To change the remote password PIN code (0000 on delivery). The Time Saver function answers calls after six ring signals, until the first new message has been registered. Then the answering machine switches to answering after approximately two signals. -
Page 20: Remote Activation
English Remote activation If you have forgotten to turn the machine on, you can do so by remote access. 1. Call the answering machine. It will answer after approximately 10 rings (Australia 16 rings). However, if the password code is still 0000, it will not reply. 2. Enter the password code (see previous page). 3. New messages will be played back. Press to stop playback. 4. Press (off=2 beeps, on=1 beep). 5. Hang up. Remote control This machine can be remote controlled using the keys of an ordinary tone dialling telephone. The password code must be changed before remote control is possible. (See description above). Remote control 1. Check that password code is no longer 0000 (or remote control will not be possible). 2. Call the answering machine. 3. Press when the outgoing message is played. 4. Enter password code. 5. New messages will be played back. Press to stop playback. 6. Select a remote control command, see below. 7. Hang up. Command Function 1 ...... -
Page 21: Troubleshooting
English Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment that may be connected. If the problem is resolved, the fault is with the other equipment. Test the equipment on a known working line (e.g. at a neighbour’s). If the product works then the fault is with your telephone line. Please inform your local telephone company. No number shown when ringing This function requires a subscription (caller ID) from your network. If a text message is shown in the display the number is either unknown or withheld. A switchboard cannot usually pass on incoming numbers. Warning signal while talking/Cannot connect The batteries may be running low (recharge the handset). The handset may be (nearly) out of range. Move closer to a base unit. There may be a new message on the answering machine. Telephone does not work Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. Check that the tone is set according to dialling method. Check the charge status of the handset batteries. Try connecting another telephone, known to be in working order, to the line socket. If that phone works then it is likely that this equipment is faulty. The telephone continues to ring The telephone’s ring signals do not follow the line signal, which means that the signal may continue for up to 10 seconds after answering a call. SMS does not work - In order for this feature to function, you must subscribe to the SMS service from your network provider. - Check that the correct telephone number is stored for each service. The answering machine is not answering - Memory may be full. Listen to your messages and delete them. - Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. - Check that the unit is switched on. The answering machine does not respond to remote control Check that the telephone you are using to remotely control the answering machine is a tone dialling telephone. -
Page 22: Specific Absorption Rate (Sar)
English Specific absorption rate (SAR) This device meets approved international safety requirements for exposure to radio waves. This telephone measures 0.043 W/kg (measured over 10g tissue). The max. limit according to WHO is 2W/kg (measured over 10g tissue). Declaration of conformity Doro hereby declares that the products Doro 670 & Doro 680R comply with the necessary requirements and other relevant regulations in Directive 1999/5/EC, 2002/95/EC. A copy of the manufacturer’s declaration is available at www.doro.com/dofc If you cannot resolve the fault using the faultfinder section, technical support is available by email on: tech@doro-uk.com. Further contact details are available on our website: www.doro-uk.com. Guarantee This product is guaranteed for a period of 12 months from the date of purchase. Proof of purchase is required for any service or support required during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm. This guarantee does not in any way affect your statutory rights. -
Page 23: Australia And New Zealand
If you believe this product is malfunctioning, please refer to the relevant section and/or consult the troubleshooting guide in this manual to ensure that you have followed the instructions carefully. As an alternative you can visit our web site for FAQ’s or send an e-mail for a prompt reply. Electro Magnetic Radiation (EMR) This telephone complies with applicable safety requirements for exposure to radio waves. The mean power of this telephone is not greater than 14 mW. This is below the 20mW limit at which testing is required. Guarantee This product is guaranteed for a period of 12 months from the date of purchase. Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm). This guarantee does not affect your statutory rights. AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6760 Private Bag 14927 Baulkham Hills BC NSW 2153 Panmure Australia Auckland New Zealand Consumer Support Consumer Support Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call) Fax: (02) 8853-8489 Fax: (09) 574-2722 Email: support@doro.com.au Email: support@atlasgentech.co.nz Web site: www.doro.com.au... - Page 24 English Version 1.0...
