Summary of Contents for Doro 640r

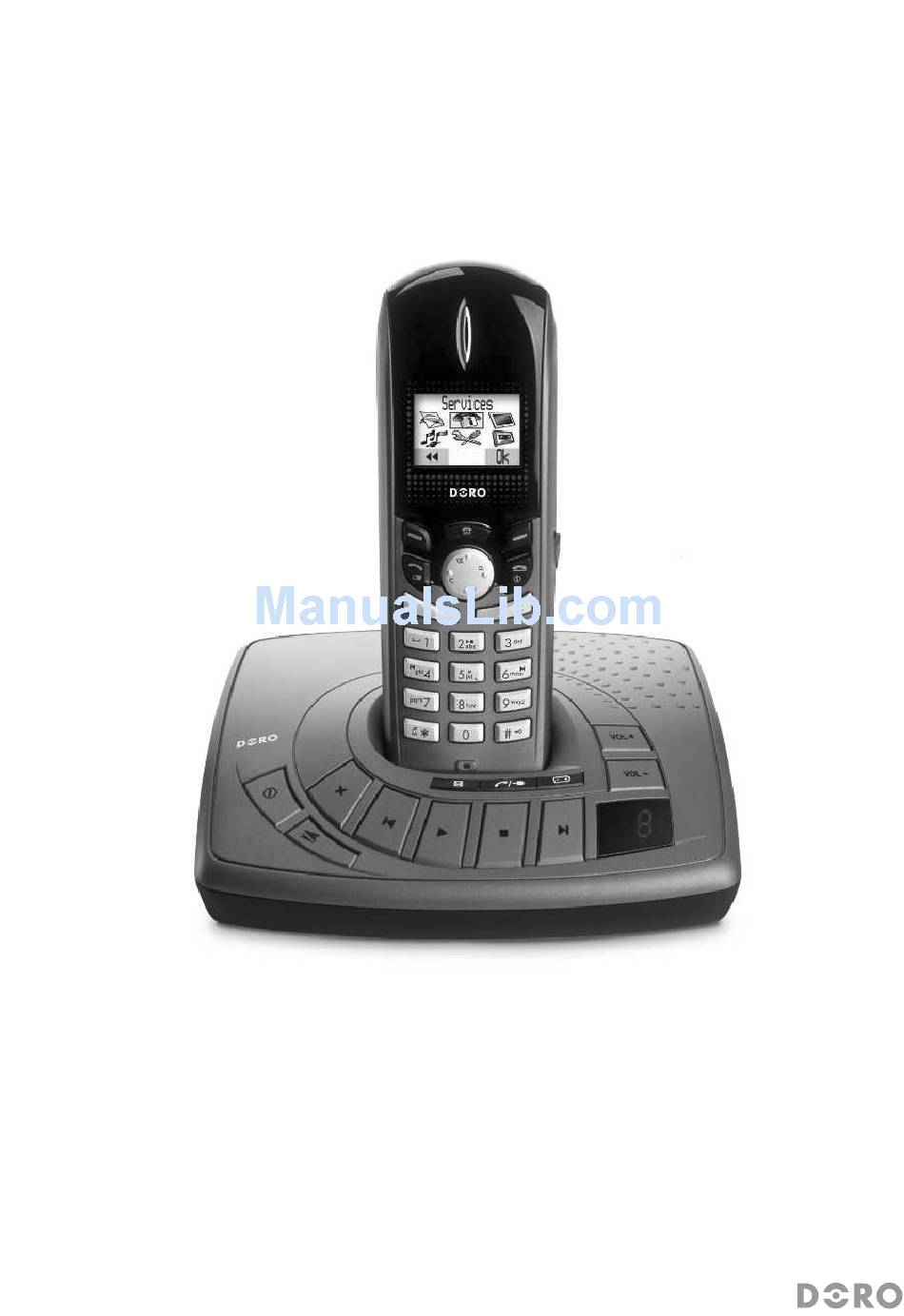

- Page 1 640/650r...
- Page 2 650R 650r Messages/Info services Flash 13 Answer machine Off/On Left menu button/Back/ Headset connector 14 Paging Internal call Disconnect and Off/On 15 Message indication/ Line Button/Call Back Display 10 Right menu button/OK Speaker phone 16 Volume control 11 Scroll button and ringer off/on 17 Indicators, see separate 12 Answer Mode, refer to description and KeyGuard description in Answer machine chapter...
-
Page 3: Table Of Contents
English Connection ......1 New calls (Caller ID Use of answer machine (base Coverage ........1 memory*) ........7 unit) ..........12 Battery ........2 Message Indication Use of answer machine The display......2 (voicemail) .......7 (handset) .........12 Base unit indicators ....3 Other info services ....8 Personal message - MEMO 13 Making a call ......3 Audio signals and display ..9 Settings in answer machine .13 Receiving a call ......3 Handset settings ....9 Out of memory .......13 Flash ........3 Other settings ......9 Remote activation ....14 Volume control .......3 System settings ......10 Remote control .......14 Call Back . -
Page 4: Battery
This is to minimize the risk of interference. It is normal for the device to become warm during charging and is not dangerous. Use only DORO original batteries. The guarantee does not cover any damage caused by incorrect batteries. The display... -
Page 5: Base Unit Indicators
English Base unit indicators Flashes when new SMS* message received (only 650r). Illuminates when charging is in progress. Illuminated on standby and flashes during calls (only 650r) . Making a call 1. Enter the desired phone number (Del=erase). 2. Press . The number is dialled. Press to terminate call. Receiving a call 1. Wait for the handset to ring. 2. Press to answer. Press to terminate call. Please note! As most consumers now use mobile telephones the menu system on this phone has been designed to work in a similar way ie. -
Page 6: Phonebook
English Phonebook 100 telephone numbers (max. 24 digits) with names (max. 15 letters) can be stored in the handsets’ phonebook. If you subscribe to a caller ID service the name in the phonebook will be shown for incoming calls. Letters Each number key has been allocated certain letters. The phonebook is arranged according to the order of the buttons, which is not the same for all languages............[Space] ABC/abc ............Switch between upper/lower case letters (press & hold) ......Pause in telephone number Store name/number in handset 1. Press . Press Opt. 2. Scroll to New Entry. Press OK. 3. Enter the telephone number, including the area code (Del=erase). Press OK. 4. Press equivalent digit key one or more times for desired name. Press Store. 5. Press to return to standby mode. Managing the phonebook 1. Press 2. Scroll among the entries with /☼. You can quick search the phone book by pressing the corresponding number key for the first letter. 3. Press to make a call or press Opt for the following choices: New Entry See description above. Edit Entry Revise information. Delete/Delete all. -
Page 7: Sms Messages
SMS messages This feature requires a current Caller Id subscription to be in place and only applies to text message users (SMS). The memory will store up to 30 messages, the maximum number of characters per message is 160. A new SMS message is indicated with the text New SMS and Please remember individual SMS features are country dependent and will vary or be unavailable. Further details regarding the SMS text message service are available from you local network provider. Australia only Short Message Service (SMS) facilities have been automatically activated for most Telstra® telephone services across Australia. SMS services may not be available to, or between, other service providers networks. A description of the SMS service provided by Telstra® can be found at: http://www.telstra.com.au/talkingtext There is no need to register your telephone with the Telstra® fixed line SMS service as your DORO telephone is supplied pre-configured. When you send your first text message the Telstra® network will automatically accept and deliver it (providing the destination offers a compatible service). Settings for your Telstra® fixed line SMS service can be changed by calling 0198 339 999 and following the prompts. UK only Program the correct SMS Centre numbers as described on next page under the section Entering the telephone numbers in SMS centre/network. E.g. for BT: SMS-Centre 1 (sending): 147017094009 SMS-Centre 2 (receiving): 0800587529 To register for the SMS text messaging service you can either send a text message to another telephone number, or text REGISTER to 00000. Should you wish to reset your SMS settings text RESET to 00000. You can also request a delivery report by entering * 0 # prior to any SMS message. - Page 8 English Entering the telephone number in SMS centre/network Check that the correct number for your service provider has been programmed. 1. Press Menu. Scroll to SMS. Press OK. 2. Scroll to SMS Settings. Press OK. 3. Scroll to SMS-centre. Press OK. 4. Scroll to selected entry. Press OK. 5. Enter number. Press OK. Write new SMS message 1. Press Menu. Scroll to SMS. Press OK. 2. Scroll to Write New SMS. Press OK. 3. Press equivalent digit key one or more times for desired text............[Space] ABC/abc ............Switch between upper/lower case letters ...........Delete 4. Press OK. Enter the telephone number including area code, or press to retrieve the number from the Phonebook. Press OK. 5. Scroll to required function. Press OK. Send SMS Send message. Save Save in outbox. Delete? Delete? Confirm with Yes. 6. The display shows if the SMS has been sent successfully or not. If no error report is shown, the message has been sent successfully.
-
Page 9: New Calls (Caller Id Memory*)
English New calls (Caller ID memory*) Caller ID allows you to see who is calling before you answer a call or to see the last 30 missed calls. New numbers are indicated with the text New calls as well as the symbol If one and the same number calls in more than once it will be saved as only one entry. Retrieving and dialling incoming numbers. 1. Press . Scroll to the required entry using /☼. 2. Press to make a call or press to return to stand-by. Other selections available: Press Ok to edit the number before dialling or Press Opt for the following choices: - Delete/Delete all - Details Show time/date. - Store in Phoneb. (Phonebook) Caller identification messages Besides number display, the following message is shown sometimes: Unknown No information received, e.g. an international call. Withheld Information about the number is blocked and the number cannot be shown. -
Page 10: Other Info Services
English Other info services Most usual operator/extra services can be accessed via the menu or with the menu buttons during a call. Some functions are pre-programmed but will not always work on delivery as this will depend on the country of installation/operator. You can change the codes that are supplied see Network Codes. Please note! The functions available will depend on your service provider. You may have to pay extra for some services, contact your service provider for more information. Some services will not work unless you have contacted your service provider to activate them. Using the Flash button manually 1. Connect an external call and wait until the timer is shown. Press R. -
Page 11: Audio Signals And Display
English Audio signals and display 1. Press Menu. Scroll to Sound or Display. Press OK. 2. Scroll to desired function, e.g. Wallpaper. Press OK. 3. Scroll to required setting. Press OK. Sound Ringer The handsets’ ringer can be adjusted. ↑ indicates increased volume. When using the polyphonic ringtones (6-14) the tone will continue if the call is answered on another telephone until complete (up to 8 seconds). Warning Tones Can be heard when pressing buttons*, low battery or out of range. -
Page 12: System Settings
English System settings System PIN is 0000 on delivery. 1. Press Menu. Scroll to Settings. Press OK. 2. Scroll to Setup Base. Press OK. 3. Scroll to desired function e.g. Exchange Code. Press OK. 4. Enter the required setting. Press OK. Dial Mode The dial mode setting for UK must be Tone (Europe only). Exchange Code Enter the digit that obtains an external line and the telephone will insert a pause automatically when a number starts with that digit. Change PIN You can change the PIN code (0000 on delivery). Default Reset Reset base unit, confirm with Yes. Expanded system (+1) All handsets included in the package are registered to the base unit already. The handset number used for internal calls is shown in the display on standby. The base unit should be positioned centrally so that the coverage area is roughly equal for all handsets. You can register up to 5 handsets to one base unit. This model is GAP (Generic Access Profile) compatible, which means that the handset and the base unit can both be used with most other GAP compatible units irrespective of manufacturer. -
Page 13: Telephone Answer Machine (Only 650R)
English Telephone Answer Machine (only 650r) When the answer machine is switched on calls are automatically answered after a number of rings set by yourself, your outgoing message is heard and the caller can leave a message. The recording capacity is 15 minutes. Most functions can be performed from either base unit or handset. Switching the answer machine on/off Press (on the base unit) to switch the answer machine off/on. If the base units’ display is flashing/showing the answer machine is disconnected. Off/On from the handset 1. Press Menu. Scroll to TAM. Press OK. 2. Scroll to Answer On/Off. Press OK. 3. Scroll to required setting. Press OK. Outgoing message The outgoing message (max 1 min) is heard by incoming calls. There are two separate outgoing messages, one for answer only (callers cannot leave a message) and one for normal answering function. 1. Press Menu. Scroll to TAM. Press OK. 2. Scroll to Settings. Press OK. 3. Scroll to Outgoing message Press OK. 4. Scroll to Record OGM. Press OK. -
Page 14: Use Of Answer Machine (Base Unit)
English Use of answer machine (base unit) The base unit display always shows the total number of messages in the memory, i.e. both old and new. The number in the base units’ display will flash when there are new messages. Playback always starts with new messages. 1. Press (base unit) to begin playback of all messages. 2. The following functions are available during playback: Command Function ...... Repeat/skip backwards....... Skip to next message. ■ ...... -
Page 15: Personal Message - Memo
English Personal message - MEMO A personal message – a MEMO – is a message recorded directly onto the answer machine without dialling (min 5 seconds and max 3 minutes). 1. Press Menu. Scroll to TAM. Press OK. 2. Scroll to Record MEMO. Press OK. 3. Record your message (approx. 30 cm from the handset with the keys facing upwards). 4. Press Save. The message will be played back to you. 5. Memos are played back in the same way as regular incoming messages. Settings in answer machine 1. Press Menu. Scroll to TAM. Press OK. 2. Scroll to Settings. Press OK. 3. Scroll to desired function, e.g. Answer Mode. Press OK. 4. Scroll to required setting. Press OK. Answer Mode Select between normal answering function and answer only (callers cannot leave a message). Outgoing message Record or playback of outgoing message. Recording time Enter the maximum recording time for messages. -
Page 16: Remote Activation
English Remote activation If you have forgotten to turn the machine on, you can do so by remote access. 1. Call the answer machine. It will answer after approximately 10 rings. However, if the RemotePIN code is still 0000, it will not reply. 2. Enter the RemotePIN code (see previous page). One beep confirms correct code. 3. Any new messages are played back, or press to stop. 4. Press (off=2 beeps, on=1 beep). 5. Hang up. Remote control This machine can be remote controlled using the keys of an ordinary tone dialling telephone. The RemotePIN code must be changed before remote control is possible. (See description above). 1. Check that RemotePIN code is no longer 0000 (or remote control will not be possible). 2. Call the answer machine. 3. Press when the outgoing message is played. 4. Enter the RemotePIN code (see previous page). One beep confirms correct code. 5. Any new messages are played back, or press to stop. 6. Select a remote control command, see below. 7. Hang up. Command Function 1 ...... -
Page 17: Troubleshooting
English Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment that may be connected, eg. extension cords and other phones. If the problem is resolved, the fault is with the other equipment. Test the equipment on a known working line (eg. at a neighbours). If the product works then the fault is with your telephone line. Please inform your local telephone company. No number shown when ringing This function requires a subscription from your service provider. A switchboard cannot usually pass on incoming numbers. Warning signal during call/Cannot connect The batteries may be running low (recharge the hand unit). The hand unit may be (nearly) out of range. Move closer to a base unit. Telephone does not work Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. Check that you have selected Tone Dial, see System Settings/Dial. Check the charge status of the handset batteries. Try connecting another telephone, known to be in working order, to the line socket. If that phone works then it is likely that this equipment is faulty. The telephone continues to ring The telephone may continue to ring for up to 8 seconds after answering a call when the handset is set to use one of the polyphonic ring tones (6-14). SMS does not work In order for this feature to function, you must subscribe to the SMS service from your network provider. Check that the correct telephone number is stored for each service. The answer machine is not answering Memory may be full. Listen to your messages and delete them. Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. Check that the unit is switched on. The answer machine does not respond to remote control Check that the telephone you are using to remotely control the answer machine is a tone dialling telephone. Also try holding the buttons down longer, approximately 1 second per digit. If the telephone still does not work, contact the place of purchase. Don’t forget the receipt or a copy of the invoice. -
Page 18: Specific Absorption Rate (Sar)
English If you cannot resolve the fault using the faultfinder section, technical support is available by email on: tech@doro-uk.com Further contact details are available on our website: www.doro-uk.com Specific absorption rate (SAR) This device meets approved international safety requirements for exposure to radio waves. This telephone measures 0.05 W/kg (measured over 10g tissue). The max. limit according to WHO is 2W/kg (measured over 10g tissue). Declaration of conformity Doro hereby declares that the products Doro 640 & Doro 650r conform to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC and 2002/95/EC. A copy of the manufacturer’s declaration is available at www.doro.com/dofc Guarantee This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely event of a fault occurring during this period, please return the item with a copy of the purchase receipt to the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the users’ part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if other batteries than DORO original batteries have been used. Australia and New Zealand Products permitted for connection to the telephone network are marked with in Australia and in New Zealand. These marks indicate the products comply with the regulations and can be used without concern in the country of purchase. If you believe this product is malfunctioning, please refer to the relevant section and/or consult the troubleshooting guide in this manual to ensure that you have followed the instructions carefully. As an alternative you can visit our web site for FAQ’s or send an e-mail for a prompt reply. - Page 19 English Guarantee This product is guaranteed for a period of 12 months from the date of purchase. Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm). This guarantee does not affect your statutory rights. AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6760 Private Bag 14927 Baulkham Hills BC NSW 2153 Panmure Australia Auckland New Zealand Consumer Support Consumer Support Ph: Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call) Fax: (02) 8853-8489 Fax: (09) 574-2722 Email: support@doro.com.au Email: support@atlasgentech.co.nz Web site: www.doro.com.au REN (RN for New Zealand) The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance. Exceeding this limit may cause...
- Page 20 English Version 1.0...
