Summary of Contents for Doro 615r

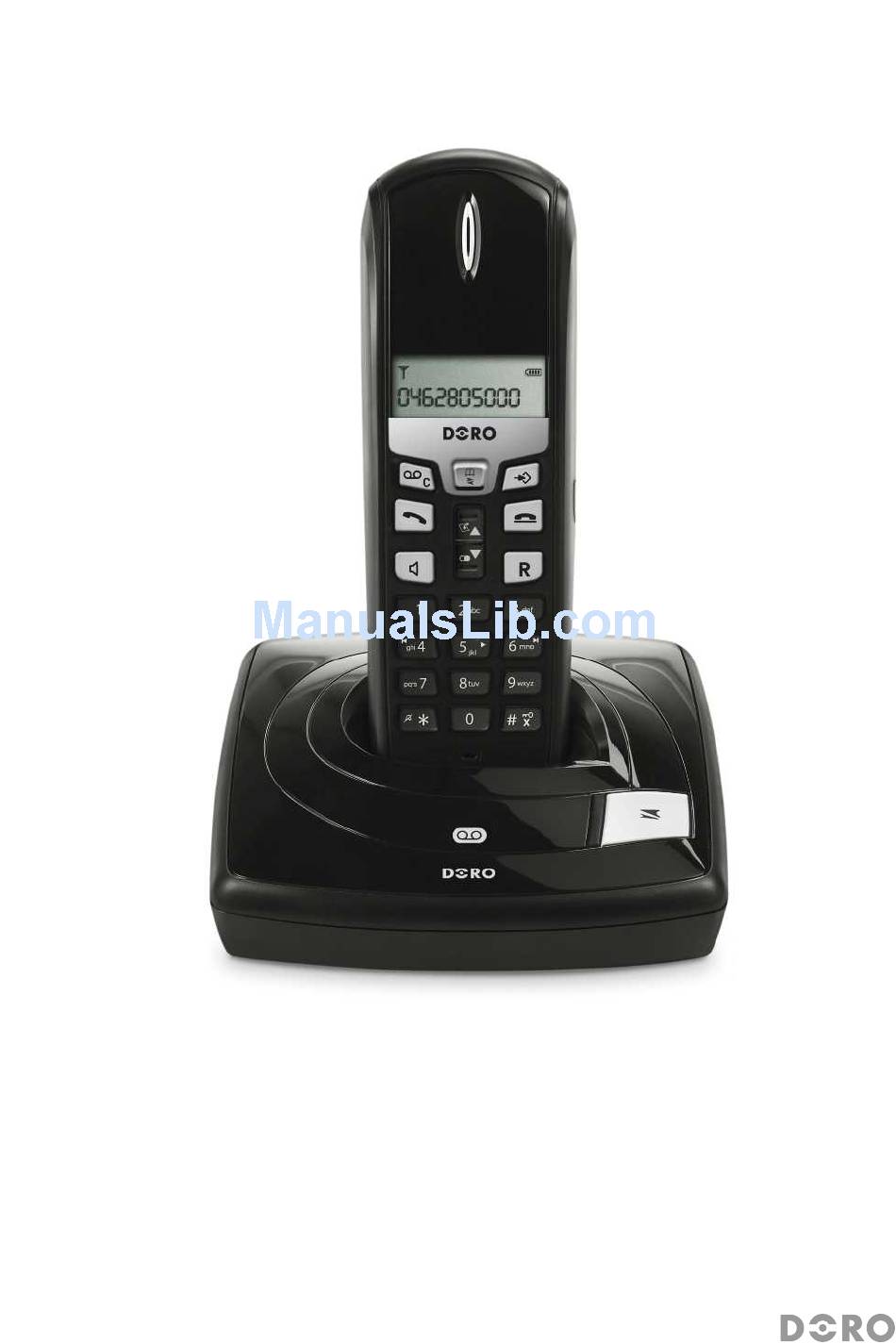

- Page 1 615r...
- Page 2 Speed dial number/ Speaker phone Flash button internal call Disconnect/Redial Disconnect button Delete/answering and ringer signal 10 Programming machine on/off 11 UP/Missed no. Talk button and key lock Connection 1. Connect the mains adapter (6V DC) and the telephone cord to the wall sockets. 2. Insert the batteries (AAA 1.2V 600 mAh NiMH) with plus-/minus as indicated. 3. Charge the handset with the keypad facing outwards (for 24 hours the first time). Date/Time 4. Press º 5. Enter time of day (HH MM). Press º 6. Set date (DD.MM.YY). Press º...
-
Page 3: Battery Led
English Battery Because batteries only have a certain lifespan it is quite normal that call time and standby time will decrease somewhat compared to the specifications when the telephone is used regularly. Fully charged batteries (10 hours charging) will last for approx. 100 hours standby time or approx. 10 hours call time. These times apply at normal room temperature. Full battery capacity will not be reached until the batteries have been charged 4-5 times. The base unit has an automatic charging mechanism that prevents the batteries from being overcharged or damaged due to prolonged charging. Battery LED When the batteries are running low, the indicator will show and a warning tone will be heard once when the indicator drops to its lowest level during a call. Please note that the battery indicator in the display will flash as long as the handset is located in the base unit, and will not stop/go out even when the battery is fully charged. Making a call 1. Enter required telephone number ( =delete). 2. Press , and the number will be dialled. Press to terminate the call. Receiving a call 1. Wait for the handset to ring. Lift the handset. 2. Press to answer. Press to terminate the call. Please note! To switch between handset/speaker press / . -
Page 4: Incoming Numbers (Caller Id)
English Mute button The microphone may be muted/switched on during a call by using =off). KeyGuard The keyguard is turned on/off by pressing down =on). Paging The handset will ring when (on the base unit) is pressed. The signal will stop automatically after a while or if the L button on the handset or the button on the base unit is pressed. Memory This telephone has 10 speed dial memory locations. A stored phone number can be dialled using fewer keystrokes. If you want a pause in the telephone number, press and hold until the display shows P. Storing speed dial memory locations 1. Press º 2. Select a memory location (0-9) using 3. Enter telephone number (up to 20 digits). Press =delete). -
Page 5: Pin Code
English Settings 1. Press . Press commands as listed below, e.g. ringer signal volume. º 2. The display shows the current status, e.g. P-5 2-5 means command 5, current setting 2 of 5 positions. 3. Scroll to desired setting with , e.g. for max. Press º Command Function ......Time format (24=24-hr, 12=12-hr) ......Ringer signal type (1=type 1..6=type 6) ......Ringer signal volume (1=min..5=max)* ......Key beep (On=On, OFF=Off) ......Tone/Pulse (1=tone/normal, 2=pulse) ......Auto Answer, i.e. the handset responds to incoming calls when it is lifted from the base (On=On, OFF=Off) ......Resetting (Enter PIN code, 0000 when supplied) ......Flash time (100=standard, 300=France/Portugal) *Ringer signal can be connected/disconnected in standby mode with =off). PIN code The PIN code (four digits) provides protection against unauthorised use of certain functions. 1. Press º 2. Enter the current PIN code (0000 when supplied). Press º 3. Enter the new code. Press º... -
Page 6: Switching The Answer Machine On/Off
English Answering machine (615r only) When the answering machine is switched on calls are answered after six ringer signals, your outgoing message is heard and the caller can leave a message (max. 3 minutes). Switching the answer machine on/off 1. Press . Wait until is shown. 2. Press . Scroll to required setting with 3. Press . Finish by pressing º Outgoing message The outgoing message (max. 3 minutes) is heard by incoming callers. 1. Press . Wait until is shown. Press 2. After the beep you can record your message (speaking approx. 30 cm from the handset’s upper side). 3. Press ). The message will be played back to you. 4. End by pressing . Repeat the procedure if you wish to change anything. Playback of messages... -
Page 7: Out Of Memory
English Settings in answering machine 1. Press . Wait until is shown. 2. Press commands as listed below, e.g. for Call screening. 3. Scroll to desired setting with , e.g. On for On. 4. Press . End by pressing º Command Function 2 ......Select outgoing message (various languages) 3 ......Call screening* (On=On, OFF=Off) 0 ......Switching the answering machine On/Off ( =On) *The call screening function (will only work with handset 1) means callers who leave a message are heard in the handset’s speaker . -
Page 8: Troubleshooting
Specific Absorption Rate (SAR) This device meets approved international safety requirements for exposure to radio waves. This telephone measures 0.04 W/kg (measured over 10g tissue). The max. limit according to WHO is 2W/kg (measured over 10g tissue). Guarantee This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely event of a fault occurring during this period, please contact the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the user’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the device during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if other batteries than DORO original batteries have been used. Declaration of conformity Doro hereby declares that the Doro 615r conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC and 2002/95/EC. A copy of the manufacturer’s declaration is available at www.doro.com/dofc If you cannot resolve the fault using the faultfinder section, technical support is available by email on tech@doro-uk.com or via a premium rate telephone number: 0905 895 0854, calls cost 50 pence per minute (prices correct at the time of publication). You can also contact us in writing: Customer Services, Doro UK Ltd, 1 High Street, Chalfont St Peter, Buckinghamshire, SL9 9QE (regarding any Spares or Technical query). Further contact details are available on our website: www.doro-uk.com. -
Page 9: Australia And New Zealand
If you believe this product is malfunctioning, please refer to the relevant section and/or consult the troubleshooting guide in this manual to ensure that you have followed the instructions carefully. As an alternative you can visit our web site for FAQ’s or send an e-mail for a prompt reply. Guarantee This product is guaranteed for a period of 12 months from the date of purchase. Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm). This guarantee does not affect your statutory rights. AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6760 Private Bag 14927 Baulkham Hills BC NSW 2153 Panmure Australia Auckland New Zealand Consumer Support Consumer Support Ph: Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call) Fax: (02) 8853-8489 Fax: (09) 574-2722 Email: support@doro.com.au Email: support@atlasgentech.co.nz Web site: www.doro.com.au... - Page 10 English REN (RN for New Zealand) The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance. Exceeding this limit may cause the volume of the ringer in any phone to decrease or not ring at all. ALL PRODUCTS The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services. This equipment shall not be set to make automatic calls to the Telecom “111“ Emergency Service. This equipment may not provide for the effective hand-over of a call to another device connected to the same line. This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom Customers. CND PRODUCTS If a charge for local calls is unacceptable, the “DIAL’’ button should NOT be used for local calls. Only the 7 digits of the local number should be dialled from your telephone. DO NOT dial the area code digit or the “0’’ prefix.
- Page 12 English Version 1.0...
