I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
KRA209
Kontour™ Column Mount Extension Arms
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
KRA209/KRA210
KRA210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kontour KRA209 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF Kontour KRA209

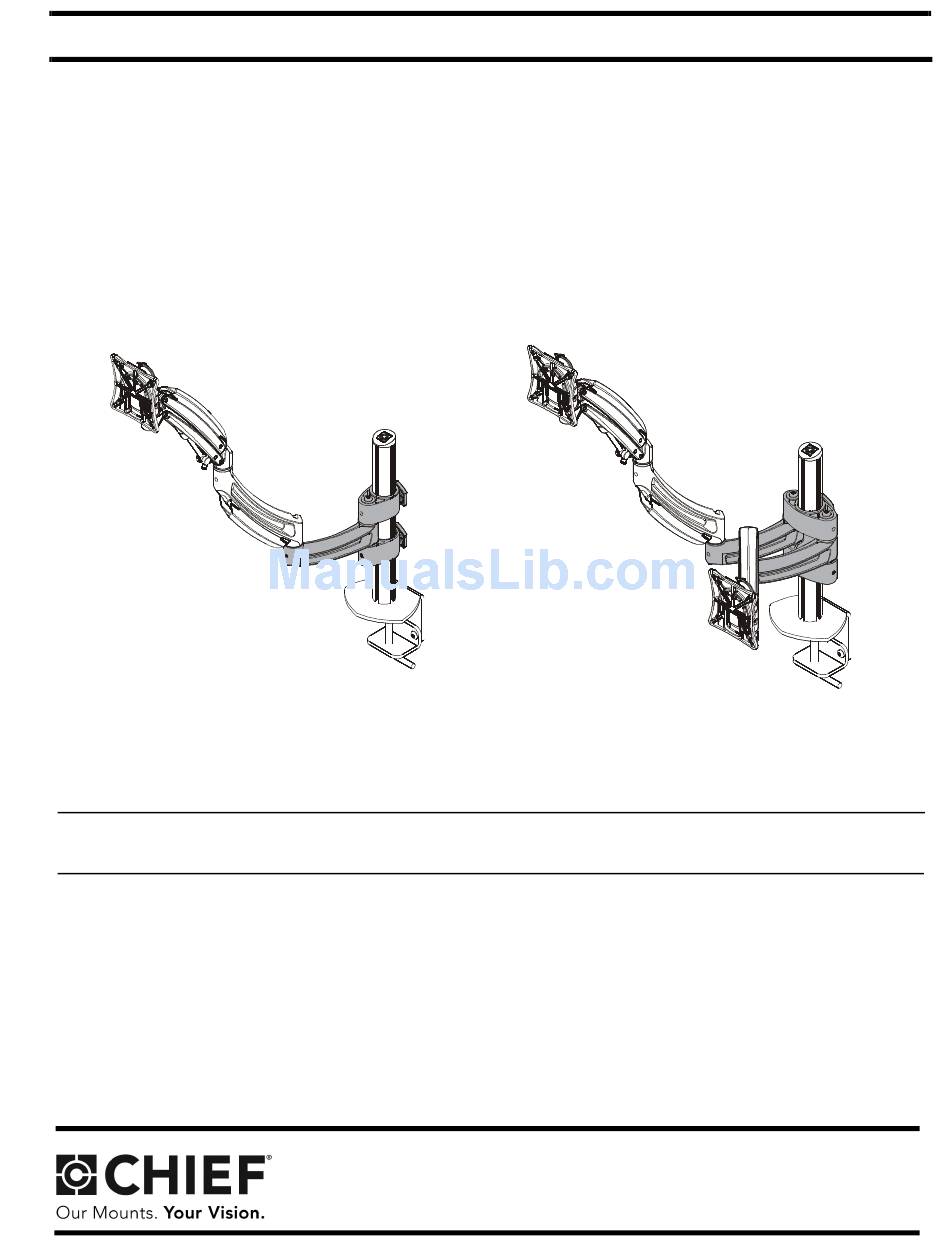

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation KRA209 KRA210 Kontour™ Column Mount Extension Arms Spanish Product Description German Product Description Portuguese Product Description Italian Product Description...
  • Page 2 Do not use this product outdoors. no responsibility for accuracy, completeness or sufficiency of the information contained in this document. --SAVE THESE INSTRUCTIONS-- Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. IMPORTANT SAFETY INSTRUCTIONS WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
  • Page 3: Installation Instructions

    Installation Instructions KRA209/KRA210 DIMENSIONS KRA209 8.19 1.88 208.0 47.6 1.59 40.5 4.96 4.92 125.9 124.9 NOTE: - TO BE USED WITH K1C100 ONLY - 3 ARMS MAX PER DISPLAY - MAX WEIGHT CAPACITY: 25 LBS KRA210 6.75 171.5 2.88 73.0 4.13...
  • Page 4 KRA209/KRA210 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
  • Page 5 Installation Instructions KRA209/KRA210 TOOLS REQUIRED FOR INSTALLATION 3/16" (included) 1/8" (included) PARTS A (1) [KRA209 extension arm] A (1) [KRA210 extension arm] B (1) C (1) 3/16" 1/8"...
  • Page 6: Assembly And Installation

    KRA209/KRA210 Installation Instructions Assembly And Installation KRA209/210 Installation Install K1 Series mount into opening at end of KRA209/210 IMPORTANT ! : KRA209/210 extension arms are extension arm. (See Figure 3) designed specifically for use with Chief’s K1C100 and Use removed set screw to secure K1 Series mount to K1C200 mounting arms.
  • Page 7 Adjustments NOTE: These installation instructions only cover adjustments KRA209 specific to the KRA209/210 extension arms. Refer to K1 Series Installation Instructions of additional adjustment options available with K1 Series mounts. Height Adjustment Loosen height adjustment knobs on KRA209/210 mount by turning knobs counter-clockwise.
  • Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
