Q U I C K S E T - U P G U I D E; D I G I T A L T V T R A N S I T I O N - Channel Master CM-7000 User Manual

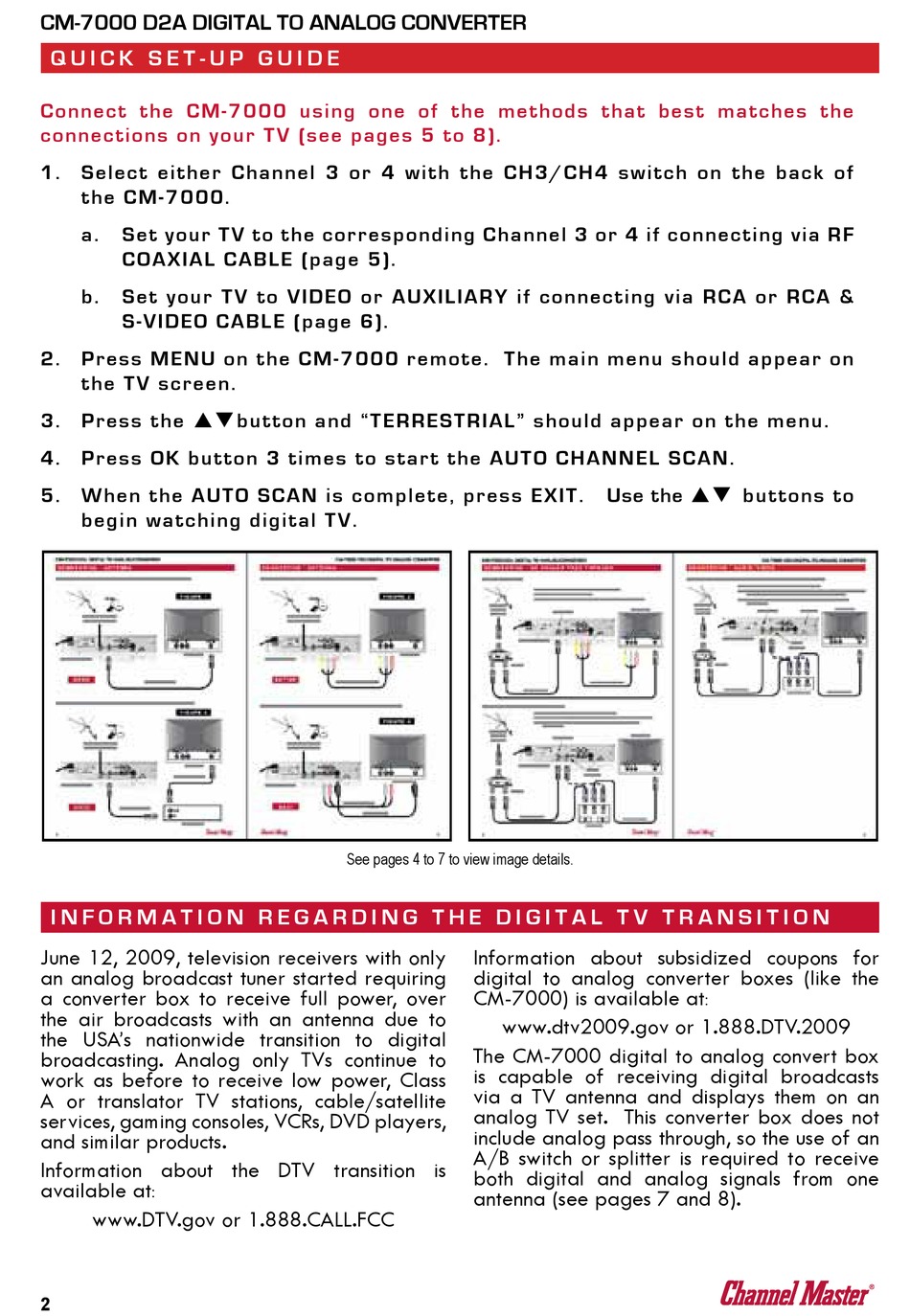

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

Q U I C K S E T - U P G U I D E

C onne ct t he C M - 7 0 0 0 u s i n g o n e o f t h e m e t h o ds that b est m at ches th e
c onne ct i o n s o n yo u r T V (s e e p a ge s 5 t o 8 ) .
1. Sel ec t e i t he r C h a n n e l 3 or 4 wi th th e C H 3 /C H 4 sw itch o n the b ac k of
th e C M - 7 0 0 0 .
a. S e t y our T V t o t h e c o r r e s p o n d i n g C h a nn e l 3 or 4 if co nnec ting v ia RF
C O A X I A L C A B LE ( p a ge 5 ).
b. S e t y o ur T V t o V I D E O o r A U X I LI A RY i f c onnecti ng v ia RC A or RC A &
S - V I D E O C A B L E (p a g e 6).
2. Pre s s ME N U o n t h e C M- 7 0 0 0 re m ote . T h e main menu sho u ld appear on
th e T V s c r e e n .
Pre s s t he pq b ut t o n a n d "T E R RE ST RI A L " s h ou l d appear on th e menu .
3.
4 . Pr e s s O K b ut t o n 3 t im e s to s ta rt th e A UT O C HA NN E L SC A N .
5 . W he n t he A U T O SC A N i s c o m p l e t e , p r e s s E X IT .
be g i n w a t c hi n g d i g i ta l TV .
I N F O R M A T I O N R E G A R D I N G T H E D I G I T A L T V T R A N S I T I O N
June 12, 2009, television receivers with only
an analog broadcast tuner started requiring
a converter box to receive full power, over
the air broadcasts with an antenna due to
the USA's nationwide transition to digital
broadcasting. Analog only TVs continue to
work as before to receive low power, Class
A or translator TV stations, cable/satellite
services, gaming consoles, VCRs, DVD players,
and similar products.
Information about the DTV transition is
available at:
www.DTV.gov or 1.888.CALL.FCC
2
See pages 4 to 7 to view image details.
Information about subsidized coupons for
digital to analog converter boxes (like the
CM-7000) is available at:
www.dtv2009.gov or 1.888.DTV.2009
The CM-7000 digital to analog convert box
is capable of receiving digital broadcasts
via a TV antenna and displays them on an
analog TV set. This converter box does not
include analog pass through, so the use of an
A/B switch or splitter is required to receive
both digital and analog signals from one
antenna (see pages 7 and 8).
Use the pq b u tt ons to
