U S E R M A N U A L

by PCT

HIGH - DEFI NI TI ON TEL EVISI O N

C O M P A T I B L E

Need help?

Do you have a question about the CM-7000 and is the answer not in the manual?

Questions and answers

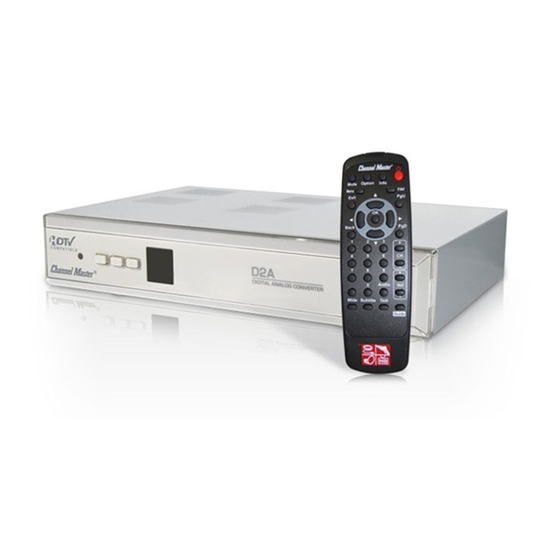

Summary of Contents for Channel Master CM-7000

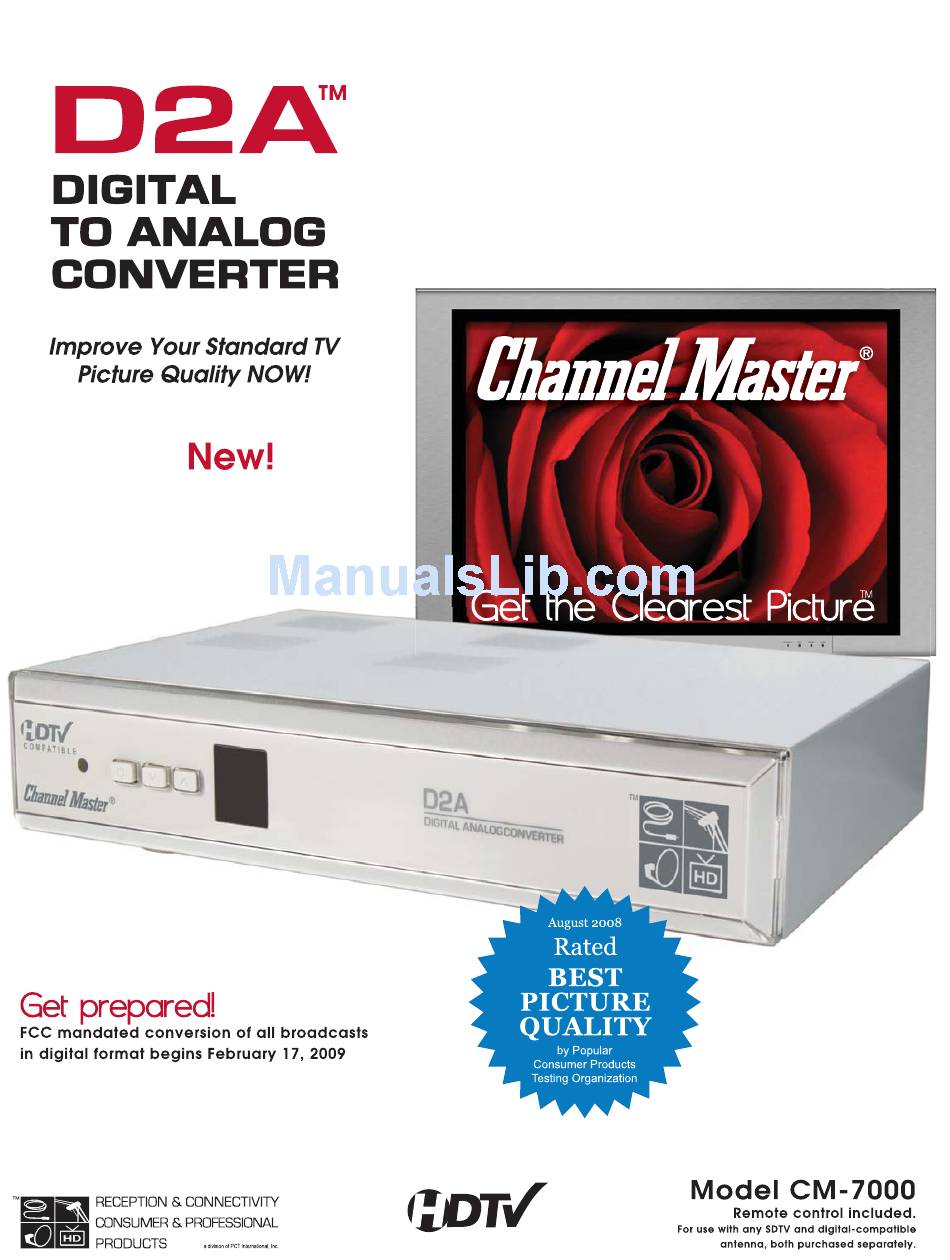

Page 1 U S E R M A N U A L by PCT HIGH - DEFI NI TI ON TEL EVISI O N C O M P A T I B L E...
Page 2 Contact Channel Master for details. © 2008 Channel Master by PCT, a division of PCT International, Inc. No part of this document may be reproduced, modiﬁ ed, distributed or otherwise used without written permission. The distinctive design of the D2A Digital Converter is a trademark of Channel Master by PCT, a division of PCT International, Inc.
Page 3 S e t y o u r TV t o VI D E O o r A U X ILI A R Y i f con n e ct i n g v i a R C A o r R C A & S -V I D E O CA B L E ( p a g e 5) . Press MENU on the CM-7000 remote. The main menu should appear on t h e T V sc r een .
Page 4 VENTILATION The slots on the top of the CM-7000 must be left uncovered to allow proper airﬂ ow to the unit. Do not cover the top with fabric, paper, or other materials. Do not stack electronic equipment on top of the CM-7000.
Page 5 Dimensions (W x L x H) Weight ENVIRONMENT Operating Temperature Relative Humidity CM-7000 D2A DIGITAL TO ANALOG CONVERTER 54 to 864 MHz 75 Ohm F-Type, Female 6 MHz -83 to -5 dBM / SNR - 15 dB 8VSB / ATSC A/53 compliant ATSC A/74 compliant 1080i, 720p, 480i, 480;...
Page 6 CM-7000 D2A DIGITAL TO ANALOG CONVERTER C O N N E C T I N G - A N T E N N A C ON N EC T I N G C M -7 0 0 0 T O A TV U S I N G R F CO A X IA L C AB L E...
Page 7 C ON N EC T I N G C M -7 0 0 0 T O A TV U S I N G R CA & S - V ID E O CA B L E Terrestrial Antenna (outdoor or indoor) Back of CM-7000 B E S T CM-7000 D2A DIGITAL TO ANALOG CONVERTER F I G U R E 3 CVBS L R RCA Audio/Video Cable F I G U R E 4...
Page 8 RF Coaxial Cable CM-7000 is connected to TV set via audio / video. Antenna is connected to TV tuner. Tune to analog channels with TV and select AV input for CM-7000. Antenna In RCA Audio/Video Cable Antenna is connected to TV tuner and CM-7000.
Page 9 RF Coaxial Cable CM-7000 D2A DIGITAL TO ANALOG CONVERTER Antenna is connected to TV tuner and CM-7000. Converter box modulator is combined with antenna using a Ch 3/4 combiner that ﬁ lters 3 and 4 from the antenna side to reduce interference.
Page 10: Auto Power Down
Factory setting is set to ON. Use the Pioneer Cable Box code if using a universal remote. If using a Channel Master remote controlled rotator, you may turn the universal remote control feature OFF to avoid conﬂ icts between the rotator remote control and the converter box.
Page 11 R E M O T E C O N T R O L R EM O T E C O N T R O L NOTE: To program a universal remote to operate the CM-7000 digital to analog converter box, use Pioneer cable box codes.
Page 12 CM-7000 D2A DIGITAL TO ANALOG CONVERTER O N L I N E G U I D E C HA NN EL BA N N E R • Provides channel major & minor numbers, station name and current time. • Gets invoked during channel number entry, channel up/down.
Page 13 Invoke menu using Menu key. • Navigate to channel edit options using channel edit options that allows you to set channel as a favorite or delete a channel. CM-7000 D2A DIGITAL TO ANALOG CONVERTER keys, click OK key to access...
Page 14 CM-7000 D2A DIGITAL TO ANALOG CONVERTER O N L I N E G U I D E C H A N N E L S C A N • Automatically searches all terrestrial channels. • Automatically updates the channel list with only newly found channels.
Page 15 Clock allows user to set the system time, time zone, daylight saving time. • Language option allows user to select OSD languages. • Menu key return back to the previous option, Exit key to quit the menu any time. CM-7000 D2A DIGITAL TO ANALOG CONVERTER OK to access respective...
Page 16 CM-7000 D2A DIGITAL TO ANALOG CONVERTER O N L I N E G U I D E S E T U P - C L O S E D C A P T I O N Provides easy to use interface to select one of the caption services and caption font properties •...
Page 17 Access Lock to block channel completely irrespective of rating. • Menu key return back to the previous option, Exit key to quit the menu at any time. CM-7000 D2A DIGITAL TO ANALOG CONVERTER and click OK to access the Movie / TV / Lock...
Page 18 CM-7000 D2A DIGITAL TO ANALOG CONVERTER O N L I N E G U I D E Q U I C K M E N U - A U D I O Quick menu that get invoked with single key on remote to select one of the multiple available audio.
Page 19 2151 East Broadway Road, Suite 211 Tempe, AZ 85282-1894 Engineering and Product Management 1715 West Sunrise Boulevard Gilbert, AZ 85233-5032 Customer Service email Technical Support email CM-7000 D2A DIGITAL TO ANALOG CONVERTER +1.800.306.8948 +1.480.813.0925 +1.480.545.1080 pctcustomerservice@pctintl.com www.channelmasterintl.com +1.919.934.5860 +1.919.934.2809 rmorgan@pctintl.com...
