CM-7000 D2A DIGITAL TO ANALOG CONVERTER

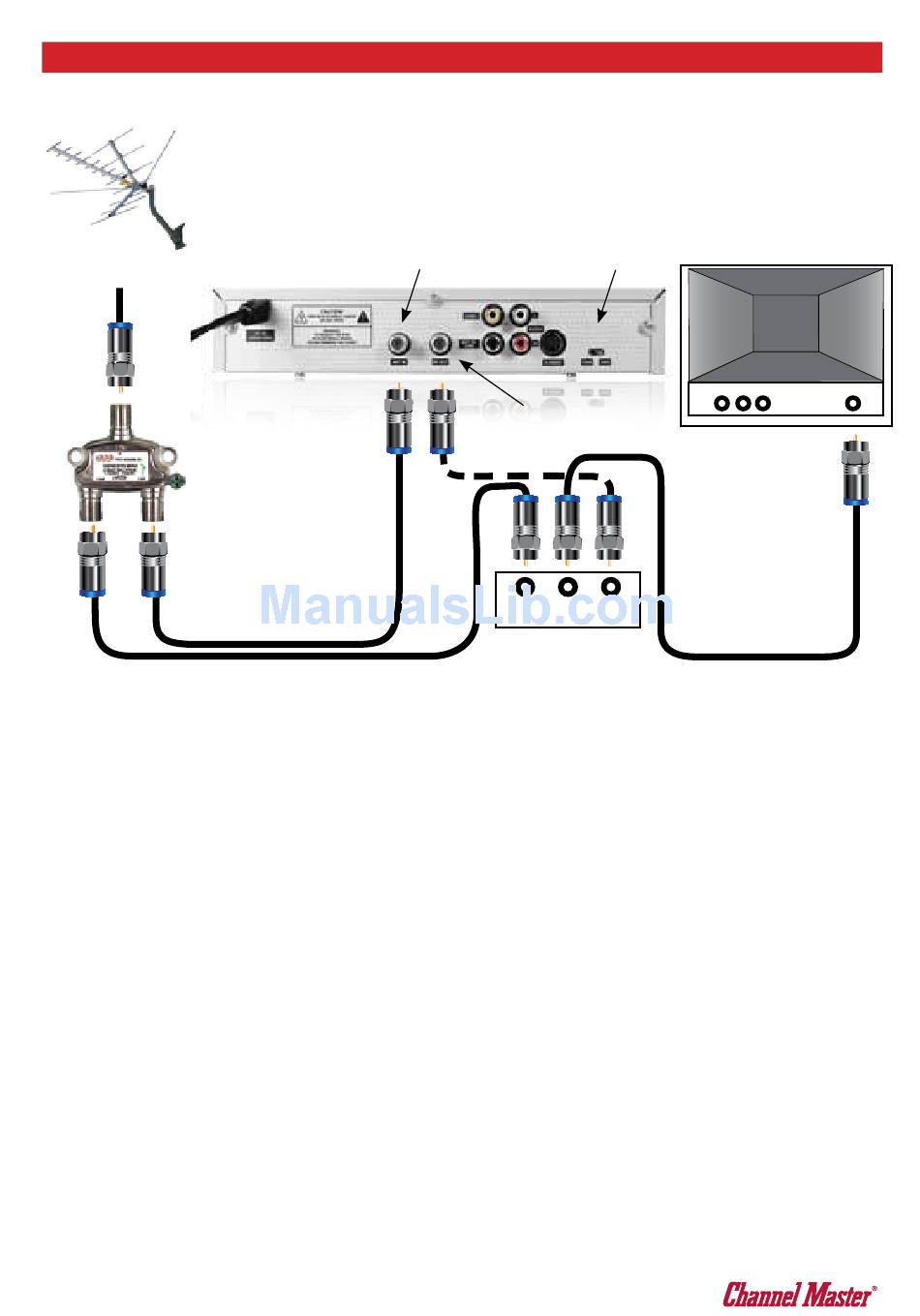

C O N N E C T I N G - A N T E N N A
VIA SP L I TT E R C O MB I N E R U SI N G F I LT E RI N G D E V IC E H OO KUP
Terrestrial
Antenna
(outdoor)
Back of CM-7000
Splitter
8
1. Antenna is connected to TV tuner and CM-7000.
2. Converter box modulator is combined with antenna using a Ch 3/4 combiner
that filters 3 and 4 from the antenna side to reduce interference.
3. Select ??? to watch analog signals and ??? to watch digital signals
via CM-7000.
Antenna In
RF Coaxial Cable
Ch 3 or 4
RF Out
Ch 3 or 4
IN TV 3/4
Ch 3/4 Combiner
Back of TV
CVBS L R ANT IN
RF Coaxial Cable
