C O N N E C T I N G - A N T E N N A

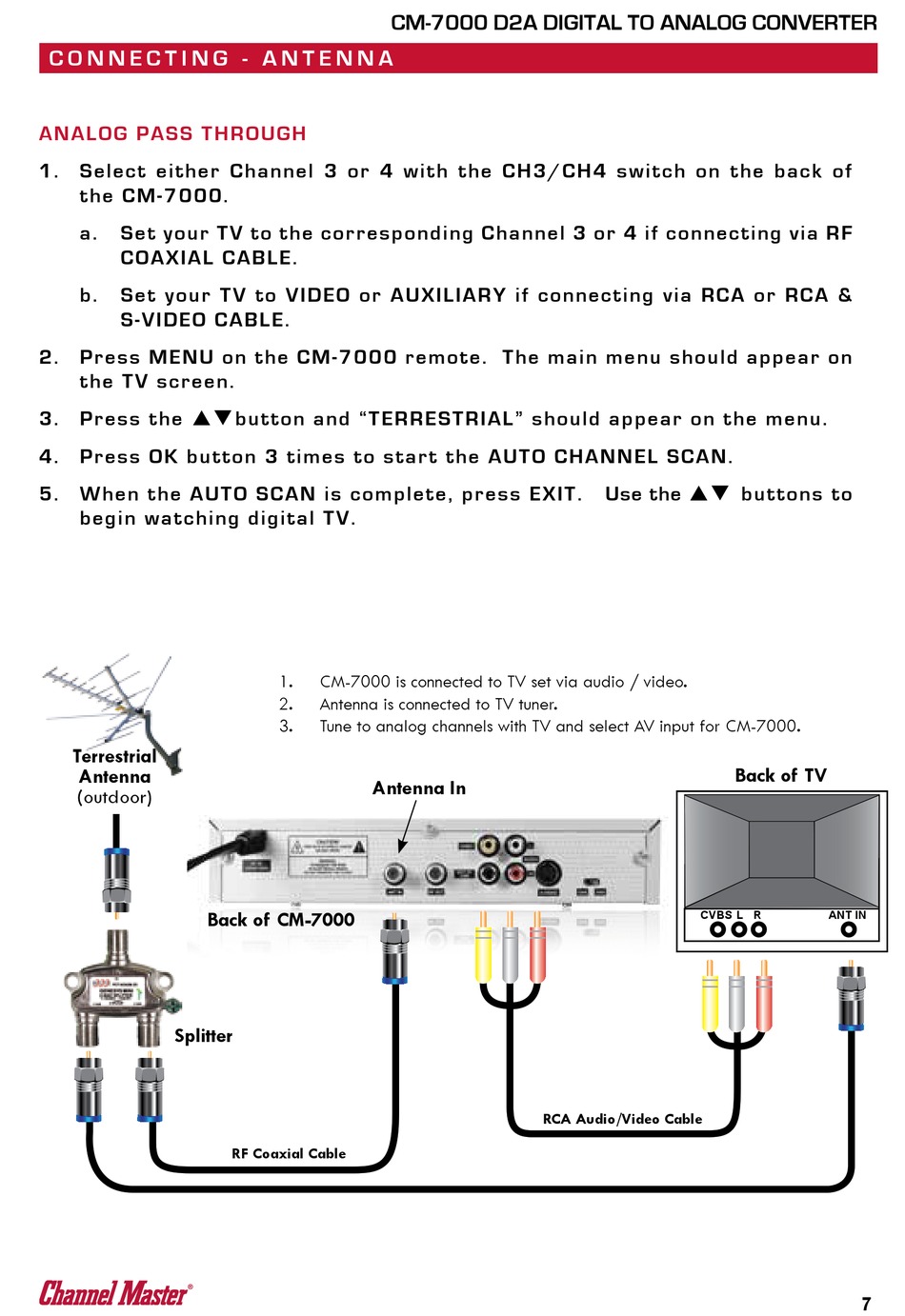

ANALOG P A S S T H R OU G H
1. Se le c t e i t he r C h a n n e l 3 or 4 wi th th e C H 3 / C H4 swi tch on th e b ack o f
t h e C M - 7 0 0 0 .
a . Se t y ou r T V t o t h e c o rre s p o n d i n g C h a n n el 3 or 4 i f connecting vi a RF
C O A X I A L C A B LE .
b . Se t y o ur T V t o V I D E O o r A U X I LI A RY i f c onnecting v ia RC A or RC A &
S - V I D E O C A B L E.
2. P re s s ME N U o n t h e C M- 7 0 0 0 re m ote . T h e main menu sh ou ld appear o n
t h e T V s c r e e n .
P re s s t he pq b ut t o n a n d "T E RR E ST RI A L " s h o u ld appear on the menu .
3.
4 . P re s s OK b ut t o n 3 ti m e s t o s t a r t th e A U T O CHA N N EL S C AN .
5. Wh en t he A U T O S C A N i s c o m p l e t e , p r e s s E X I T .
be gi n w a tc h i n g d i g i ta l T V .
Terrestrial
Antenna
(outdoor)
Back of CM-7000
Splitter
CM-7000 D2A DIGITAL TO ANALOG CONVERTER
1. CM-7000 is connected to TV set via audio / video.
2. Antenna is connected to TV tuner.
3. Tune to analog channels with TV and select AV input for CM-7000.
Antenna In
RF Coaxial Cable
Use the pq b u tto ns to
CVBS L R
RCA Audio/Video Cable
Back of TV
ANT IN
7
