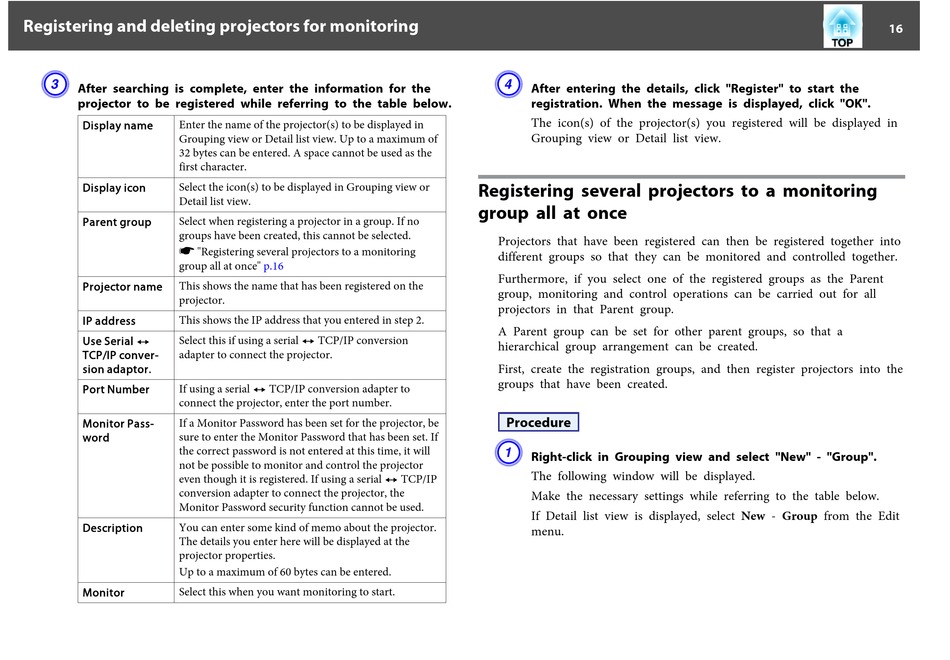

Registering Several Projectors To A Monitoring Group All At Once - Epson EasyMP Monitor Operation Manual

Registering and deleting projectors for monitoring
C
After searching is complete, enter the information for the
projector to be registered while referring to the table below.
Display name Enter the name of the projector(s) to be displayed in
Grouping view or Detail list view. Up to a maximum of
32 bytes can be entered. A space cannot be used as the
first character.
Select the icon(s) to be displayed in Grouping view or
Display icon
Detail list view.
Parent group Select when registering a projector in a group. If no
groups have been created, this cannot be selected.
s "Registering several projectors to a monitoring
group all at once"
Projector name This shows the name that has been registered on the
projector.
This shows the IP address that you entered in step 2.
IP address
Select this if using a serial W TCP/IP conversion
Use Serial W
adapter to connect the projector.
TCP/IP conver-
sion adaptor.
Port Number If using a serial W TCP/IP conversion adapter to
connect the projector, enter the port number.
If a Monitor Password has been set for the projector, be
Monitor Pass-
sure to enter the Monitor Password that has been set. If
word
the correct password is not entered at this time, it will
not be possible to monitor and control the projector
even though it is registered. If using a serial W TCP/IP
conversion adapter to connect the projector, the
Monitor Password security function cannot be used.
You can enter some kind of memo about the projector.
Description
The details you enter here will be displayed at the
projector properties.
Up to a maximum of 60 bytes can be entered.
Select this when you want monitoring to start.
Monitor
p.16
D
After entering the details, click "Register" to start the
registration. When the message is displayed, click "OK".
The icon(s) of the projector(s) you registered will be displayed in
Grouping view or Detail list view.
Registering several projectors to a monitoring
group all at once
Projectors that have been registered can then be registered together into
different groups so that they can be monitored and controlled together.
Furthermore, if you select one of the registered groups as the Parent
group, monitoring and control operations can be carried out for all
projectors in that Parent group.
A Parent group can be set for other parent groups, so that a
hierarchical group arrangement can be created.
First, create the registration groups, and then register projectors into the
groups that have been created.
Procedure
A
Right-click in Grouping view and select "New" - "Group".
The following window will be displayed.
Make the necessary settings while referring to the table below.
If Detail list view is displayed, select New - Group from the Edit
menu.
16
