Summary of Contents for Foxconn T70S Series

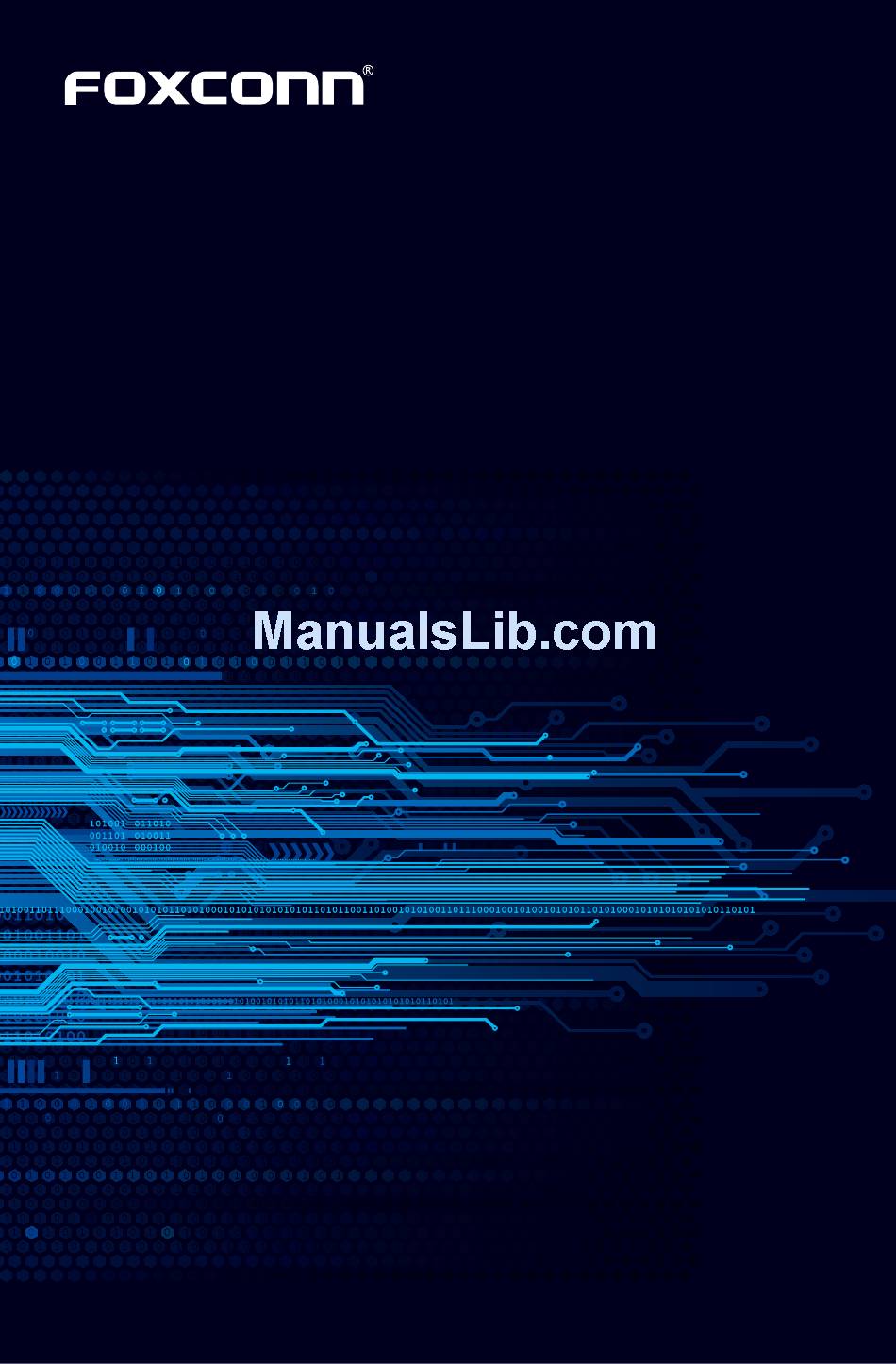

  • Page 1 T70S Series Motherboard User’s Manual...
  • Page 2 Statement: This manual is the intellectual property of Foxconn, Inc. Although the infor- mation in this manual may be changed or modified at any time, Foxconn does not obligate itself to inform the user of these changes. Trademark: All trademarks are the property of their respective owners. Version: User’s Manual V1.0 for T70S Series motherboard.

  • Page 3: Declaration Of Conformity

    Declaration of conformity HON HAI PRECISION INDUSTRY COMPANY LTD 66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT, TAIPEI HSIEN, TAIWAN, R.O.C. declares that the product T70S Motherboard Series is in conformity with (reference to the specification under which conformity is declared in accordance with 89/336 EEC-EMC Directive) ■ EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio...
  • Page 4 Declaration of conformity Trade Name: FOXCONN Model Name: T70S Series Responsible Party: PCE Industry Inc. Address: 458 E. Lambert Rd. Fullerton, CA 92835 Telephone: 714-738-8868 Facsimile: 714-738-8838 Equipment Classification: FCC Class B Subassembly Type of Product: Motherboard Manufacturer: HON HAI PRECISION INDUSTRY COMPANY LTD Address: 66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT, TAIPEI HSIEN, TAIWAN, R.O.C.

  • Page 5: Installation Precautions

    Installation Precautions ■ Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between two objects at different electrical potentials. Normally it comes out as a spark which will quickly damage your electronic equipment. Please wear an electrostatic discharge (ESD) wrist strap when handling components such as a motherboard, CPU or memory. ■ Ensure that the DC power supply is turned off before installing or removing CPU, memory, expansion cards or other peripherals. It is recommended to unplug the AC power cord from the power supply outlet.

  • Page 6: Table Of Contents

    TABLe Of CONTeNTS Chapter 1 Product Introduction 1-1 Product Specifications ................2 1-2 Layout ....................4 1-3 Back Panel Connectors ................5 Chapter 2 Hardware Installation 2-1 Install the Memory ..................7 2-2 Install other Internal Connectors ............8 2-3 Jumpers ....................13 Chapter 3 BIOS Setup Enter BIOS Setup ..................16 Main ......................17 F-center ......................19 Smart BIOS .....................19 Fox Intelligent Stepping ................20 CPU Configuration ..................21 Advanced ....................22...
  • Page 7 1. Local Update ..................48 2. Online Update ..................50 3. Configure ....................53 4. About & Help ..................55 4-4 FOX LOGO ..................56 4-5 FOX DMI ....................57 4-6 Smart charger ..................57...

  • Page 8: Chapter 1 Product Introduction

    Chapter 1 Product Introduction Thank you for buying Foxconn T70S Series mother- board. Foxconn products are engineered to maximize computing power, providing only what you need for break-through performance. This chapter includes the following information: ■ Product Specifications ■ Layout ■ Back Panel Connectors...

  • Page 9: Product Specifications

    Support USB 2.0 protocol up to 480Mb/s Internal 1 x 4-pin 19V DC power connector (Option) Connectors 1 x CPU FAN header (3-pin) 1 x System FAN header (4-pin) 1 x Front panel header 1 x Front Audio header (T70S-F/T70S-VF) 1 x SATA 3.0 connector 1 x SATA 2.0 connector 2 x SATA Power headers 2 x USB 2.0 headers 1 x Speaker header 1 x LVDS header (Optional) 1 x Audio Voltage Selection header (Optional)
  • Page 10 PRODUCT INTRODUCTION 1 x TPM/TCM header 1 x INTR header 1 x COM header 1 x ME header 1 x Clear CMOS header Back Panel 1 x DC-IN power port Connectors 1 x HDMI port 1 x VGA port 4 x USB 2.0 ports 1 x RJ45 LAN port 1 x Microphone port 1 x Line Out port...

  • Page 11: Layout

    11. SATA 2.0 Connector 25. SODIMM Socket 12. SATA 3.0 Connector 26. Chipset: Intel NM70 ® 13. Front USB 2.0 Headers CPU: Intel Celeron 807 (T70S-V/T70S-VF) ® 14. Front Panel Header Intel Celeron 1037U (T70S/T70S-F) ® Note : The above motherboard layout is for reference only, please refer to the physical motherboard for detail.

  • Page 12: Back Panel Connectors

    PRODUCT INTRODUCTION 1-3 Back Panel Connectors Power Port VGA Port RJ45 LAN Port Line Out Microphone In HDMI Port USB 2.0 Ports Audio Ports 1. Power Port Use the 19V DC power port to connect 19V-3.42A power adapter. 2. HDMI Port The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to this port.

  • Page 13: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation This chapter introduces the hardware installation process, including memory, slots, pin headers and the mounting of jumpers. Caution should be exercised dur- ing the installation of these modules. Please refer to the motherboard layout prior to any installation and read the contents in this chapter carefully.

  • Page 14: Install The Memory

    HARDWARE INSTALLATION 2-1 Install the Memory Read the following guidelines before you begin to install the memory : ■ Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. ■ Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction. If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated by a notch in the middle, so it can only fit in one direction. Follow the steps below to correctly install your memory modules into the sockets.

  • Page 15: Install Other Internal Connectors

    HARDWARE INSTALLATION 2-2 Install other Internal Connectors Power Connectors In order not to damage any device, make sure all the devices are installed properly before applying the power supply. This motherboard uses 19V DC power supply. You can choose one from the following two power supply ways according to the actual conditions.
  • Page 16 HARDWARE INSTALLATION front Panel Header : fP1 This motherboard includes one header for connecting the front panel switch and LED Indicators. HDD-LED PWR-LED Hard Disk LeD Connector (HDD-LeD) RESET-SW PWR-SW Connect to the chassis front panel IDE EMPTY indicator LED. It indicates the active status of the hard disks. This 2-pin connector is directional with +/- sign.
  • Page 17 HARDWARE INSTALLATION Audio Header : f_AUDIO A_MIC2_L AUD_GND The audio header supports HD Audio standard. A_MIC2_R PRESENCEJ It provides the Front Audio output choice. A_LINE2_R SENSE1_RETURN SENSE_SEND EMPTY A_LINE2_L SENSE2_RETURN fan Header : SYS_fAN F_AUDIO The fan speed can be controlled and monitored in “Health”...
  • Page 18 HARDWARE INSTALLATION Mini PCIe Slot : MINIPCIe1/2 The MINI PCIE Slot is used to connect Mini PCIE device. MINIPCIE1/2 VOLUME_UP Audio Voltage Selection Header : VOLUME_DOWN AUDIO_ADJ AUDIO_ADJ This header is used to connect the volume con- troller which is used to adjust the volume. Internal Microphone Header : IN_MIC This header is used to connect microphone device.
  • Page 19 HARDWARE INSTALLATION Mouse Header : H_MS Using this header, you can get a standard PS/2 HEAD_MDAT mouse port expanded. HEAD_MCLK 5V_DUAL H_MS LVDS Header : LVDS1 This header is used to connect the display panel. 1 2 LVDSB_DATA0 LVDSB_DATA1 LVDSB_DATA0# LVDSB_DATA1# LVDSB_DATA2 LVDSB_CLK LVDSB_DATA2# LVDSB_CLK# LVDSB_DATA3 LVDSB_DATA3# LVDSA_DATA3 LVDSA_DATA3# LVDSA_DATA0 LVDSA_DATA1 LVDSA_DATA0#...

  • Page 20: Jumpers

    HARDWARE INSTALLATION 2-3 Jumpers For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting.
  • Page 21 HARDWARE INSTALLATION Intel Me Jumper: JUMPeR_Me ® This motherboard uses this jumper to enable or disable Intel Management Engine function. ® Intel Management Engine (ME) is an embedded microcontroller located in Intel chipset. It ® provides latest IT management features such as Intel AMT, that allows to improve manage- ®...

  • Page 22: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. You have to run the Setup Program when the following cases occur: 1. An error message appears on the screen during the system Power On Self Test (POST) process.

  • Page 23: Enter Bios Setup

    BIOS SETUP enter BIOS Setup The BIOS is the communication bridge between hardware and software, correctly setting up the BIOS parameters is critical to maintain optimal system performance. Power on the computer, when the message “Press <Del> to enter setup, Press <f7> to enter boot menu” appears at the bottom of the screen, you can press <DEL>...

  • Page 24: Main

    System Date [Fri 09/30/2013] Set the Date. Use Tab System Time [11:17:39] to switch between Date elements. Access Level Administrator Model Name T70S Series ME Version 8.1.30.1350 EC Version CA7F1014 BIOS Version CA7F1D21 Build Date and Time 08/30/2013 10:11:54 Halt On...
  • Page 25 BIOS SETUP This category determines whether or not the computer will stop if an error is detected during [All Errors]: All errors can result in system halt. [No Errors]: No error can result in system halt. [All, but keyboard]: All errors but keyboard can result in system halt. ►...

  • Page 26: F-Center

    BIOS SETUP f-center Main f-center Advanced Boot Power Health Security Save&exit Super BIOS Settings Super BIOS Protect [Enabled] ▶ Smart BIOS ▶ Fox Intelligent Stepping ▶ CPU Configuration ▶ Performance Tuning → ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt.

  • Page 27: Fox Intelligent Stepping

    BIOS SETUP ► Smart Power LED Smart Power LED is a feature built on your motherboard to indicate different states during Power On Self Test (POST). The LED is located at the front panel, and it displays POST state by different long-short blinking intervals. You can always leave this state enabled. System Status Power LED Status Stop Blinking Condition...

  • Page 28: Cpu Configuration

    BIOS SETUP CPU Configuration Main f-center Advanced Boot Power Health Security Save&exit CPU Configuration Enabled for Windows XP and Linux (OS optimized CPU Brand Name: for Hyper-Threading Intel(R) Celeron(R) CPU 1037U @ 1.80GHz CPU Signature 306a7 Technology) and disabled Microcode Patch for other OS (OS not Max CPU Speed 1800 MHZ...

  • Page 29: Advanced

    BIOS SETUP Advanced Main f-center Advanced Boot Power Health Security Save&exit ▶ North Bridge North Bridge Parameters ▶ ME Subsystem ▶ Onboard Device Configuration ▶ SATA Configuration ▶ Trusted Computing ▶ Network Stack → ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt.

  • Page 30: Me Subsystem

    BIOS SETUP These items display the memory size installed on each slot. ► Integrated Graphics This item allows you to determine whether to allocate memory for the integrated graphics controller from the system memory. Options: [Auto], [Manual]. [Auto]-Auto the integrated graphics controller. [Manual]- Manual the integrated graphics controller.

  • Page 31: Onboard Device Configuration

    BIOS SETUP Onboard Device Configuration Main f-center Advanced Boot Power Health Security Save&exit Onboard Device Configuration Enabled/Disabled Onboard LAN Controller. Onboard LAN Controller [Enabled] Onboard USB Controller [Enabled] Legacy USB Support [Enabled] Azalia HD Audio controller [Enabled] Serial Port [Enabled] Device Settings IO=3F8h;...

  • Page 32: Sata Configuration

    BIOS SETUP SATA Configuration Main f-center Advanced Boot Power Health Security Save&exit SATA Configuration Enable or disable SATA Device. SATA Controller(s) [Enabled] Onboard SATA Mode [Native IDE] ▶ SATA Port1: Not Present ▶ SATA Port2: Not Present → ←: Select Screen ↑...

  • Page 33: Trusted Computing

    BIOS SETUP Trusted Computing Main f-center Advanced Boot Power Health Security Save&exit Configuration Enables or Disables Security Device Support [Disable] BIOS support for security device. O.S. will not show Security Current Status Information Device. TCG EFI protocol NO Security Device Found and INT1A interface will not be available.

  • Page 34: Boot

    BIOS SETUP Boot Main f-center Advanced Boot Power Health Security Save&exit Boot Configuration Select the keyboard Bootup Numlock State [On] NumLock state Quiet Boot [Enabled] Fast Boot [Disabled] INT19 Trap Response [Enabled] ▶ CSM parameters Set Boot Priority 1st Boot [Hard Disk] 2nd Boot [CD/DVD]...

  • Page 35: Csm Parameters

    BIOS SETUP CSM parameters Main f-center Advanced Boot Power Health Security Save&exit Launch CSM [Enabled] This option controls if Boot option filter [UEFI and Legacy] CSM will be launched Launch PXE OpROM policy [Do not launch] Launch Storage OpROM policy [Legacy only] Launch Video OpROM policy [Legacy only]...

  • Page 36: Power

    BIOS SETUP Power Main f-center Advanced Boot Power Health Security Save&exit ACPI Sleep State [S3] Select the highest ACPI Resume By PS2 KB/Mouse [Enabled] sleep state the system Resume By USB Device(s) [Enabled] will enter when the Resume By PCIE Device(s) [Disabled] SUSPEND button is pressed.
  • Page 37 BIOS SETUP return to previous state when the STR function wakes. ► Resume By PS2 KB/Mouse This item is used to enable or disable the PS2 keyboard/Mouse to generate a wake up. ► Resume By USB Device(s) This item is used to enable or disable the USB device(s) to generate a wake up. ► Resume By PCIE Device(s) This item is used to enable or disable the PCI Express device to generate a wake up. ► Resume By Onboard LAN This item is used to enable or disable the onboard LAN to generate a wake up.

  • Page 38: Health

    BIOS SETUP Health Main f-center Advanced Boot Power Health Security Save&exit Case Open Warning [Disabled] CPU Warning Temperature CPU Temperature : +43 ˚C System Temperature : +35 ˚C System Fan Speed : N/A CPU Fan Speed : 4492 RPM VDDR : +1.500V +5V SYS : +5.097 V...

  • Page 39: Security

    BIOS SETUP Security Main f-center Advanced Boot Power Health Security Save&exit Set Administrator Security configuration Password. The password must be 1 to 20 characters long. Administrator Password Not Installed User Password Not Installed Administator Password HDD BootSector Write [Normal] ▶ Secure Boot menu HDD Security Configuration: HDD0: HDT722516DLA →...

  • Page 40: Save & Exit

    Discard Changes and Reset saving the changes. Restore Defaults Boot Override Foxconn MS USB2.0 Reade9144 UEFI: Foxconn MS USB2.0 Reade9144 Foxconn CF USB2.0 Reade9144 Foxconn SM USB2.0 Reade9144 Foxconn SD USB2.0 Reade9144 → ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt.

  • Page 41: Chapter 4 Cd Instruction

    Chapter 4 CD Instruction The utility CD that comes with the motherboard contains useful software and several utility drivers that enhance the motherboard features. This chapter includes the following information: ■ Install driver and utility ■ FOX ONE ■ FOX LiveUpdate ■ FOX LOGO ■ FOX DMI ■ Smart Charger...

  • Page 42: Install Driver And Utility

    Manual Installation Step by Step Automatic Installation by One Click Drop to System Tray Exit the program Visit Foxconn's Browse CD View User’s Manual Show Utilities Show Drivers website Choose the items you want to Install...

  • Page 43: Install Utility

    CD INSTRUCTION 2. Install Utility Use these options to install additional software programs. And click “User’s Manual“ button to view the product manual. The Driver and Utility items displayed above represent a Windows 7 based system. The appearance may change with different Operating Systems.

  • Page 44: Fox One

    CD INSTRUCTION 4-2 fOX ONe FOX ONE is a powerful utility for easily modifying system settings. It also allows users to monitor various temperature values, voltage values, frequencies and fan speeds at any time. With FOX ONE, you can : ■ Monitor hardware temperatures, voltages, frequencies and fan speeds.

  • Page 45: Main Page

    CD INSTRUCTION 1. Main Page Show CPU Information Toolbar Alert Lamp Switch Button Skin Button Exit Minimum Configuration Homepage Monitor Frequency/Voltage/Fan speed/Temperature value Toolbar Use the toolbar to navigate to other pages. Alert Lamp When the system is in healthy state, the color of alert lamp is green. When the system is in abnormal state, the alert lamp color is red.
  • Page 46 Minimum Click this button to drop the FOX ONE to Windows system tray located at the lower right corner of your screen. Homepage Click this button to visit Foxconn motherboard website : http://www.foxconnchannel.com Configuration 1). Monitor interval (ms) : This is to define the interval of different messages of system settings which are to be displayed...
  • Page 47 CD INSTRUCTION 2). Simple Mode : To select which message of system settings are to be displayed in the Simple Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one by one in Simple Mode. 3). F.I.S. Calibration (FOX Intelligent Stepping, Optional): This function will re-calibrate the CPU's loading, and it may take several minutes to proceed.

  • Page 48: Cpu Page - Cpu Control

    CD INSTRUCTION 2. CPU Page - CPU Control This page lets you select (or overclock) CPU clock to meet the current performance level of the system. The fastest and suitable CPU clock running for current system can be calculated by FOX ONE automatically or manually input by yourselves.
  • Page 49 CD INSTRUCTION A message informs you to push RESET button later if the system hangs finally. Click Yes to continue. You can see the system is raising CPU clock until the system hangs. Push RESET button on the front panel of your system to restart the computer.
  • Page 50 CD INSTRUCTION Now, your system is running at a CPU clock of 255MHz. fOX Intelligent Stepping (f.I.S., Optional) Select FOX Intelligent Stepping will allow your system to automatically adjust your CPU clock rate based on different system loadings. For example, if you select Power Gaming, CPU clock will be driven to run at its maximum speed.

  • Page 51: Frequency Page - Frequency Control (Optional)

    CD INSTRUCTION 3. frequency Page - frequency Control (Optional) This page lets you set memory and PCI Express frequencies by manual. Go to Freq. page Close this page Select the option you want to set Adjust by manual Reset the changes Apply the changes 4.
  • Page 52 CD INSTRUCTION 4.2 Limit Setting - System Temperature This page lets you to set system high limit temperature and enable the alert function. Show current system temperature value Enable alert function when the system temperature is higher than high limit value Show current high limit value of system temperature Set high limit by dragging the lever...
  • Page 53 CD INSTRUCTION 4.4 Limit Setting - System Fan This page lets you to set system fan low limit rpm and enable the alert function. Show current system fan rpm value Enable alert function when the system fan runs slower than low limit rpm value Show current low limit rpm value of system Set low limit rpm by dragging the lever...

  • Page 54: Voltage Page - Voltage Control (Optional)

    CD INSTRUCTION 5. Voltage Page - Voltage Control (Optional) This page lets you set CPU voltage, memory voltage and North Bridge voltage manually. CPU voltage can be stepped up/down by a unit of 12.5mV, while memory is 0.05V/step, and North Bridge is 0.04V/step. Go to Voltage page Select the option you want to set Adjust by manual Reset the changes Apply the changes 6.

  • Page 55: Fox Liveupdate

    CD INSTRUCTION 4-3 fOX LiveUpdate FOX LiveUpdate is a useful utility to backup and update your system BIOS, drivers and utilities by local or online. Supporting Operating Systems : ■ Windows 7 (32-bit and 64-bit) ■ Windows 8 (32-bit and 64-bit) Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to [Disabled] when running this application.
  • Page 56 CD INSTRUCTION Key in a BIOS name Click here 1-3 Local Update - Update This page helps you to update your BIOS from a local file. After click “Update”, An alert message will be displayed to ensure if you really want to continue, click “Yes” to confirm. A setup wizard will guide you to load a local BIOS file to finish the operation. You must remember from which directory to load your new BIOS file (with an extension of ".BIN" for Award BIOS, ".ROM" for AMI BIOS) before the setup wizard starts. FOX LiveUpdate can automatically backup old BIOS before update. This feature can be enabled in the "Configure-System" setup. Please refer to "Configure- System" section for more detail. The default backup directory is C:\LiveUpdate_ Temp, but the backup file name will be automatically generated. It is hard to find it out from a backup directory, and we recommend you using Explorer to check date/ time message of this backup file to find it out and write its name down to remember...

  • Page 57: Online Update

    CD INSTRUCTION 2. Online Update 2-1 Online Update - Update BIOS This page lets you update your system BIOS from Internet. Click “Start”, it will search the new BIOS from Internet. Then follow the wizard to finish the update operation. Click here Current information Search new BIOS from Internet Select BIOS to update Browse detailed information Update BIOS Close the window 2-2 Online Update - Update Driver...
  • Page 58 CD INSTRUCTION Select the driver to update Browse detailed information Install the selected driver Close the window 2-3 Online Update - Update Utility This page lets you update utilities from Internet. Click “Start”, it will search the new utilities from Internet. Then follow the wizard to finish the update operation. Click here Current information Search new utilities from Internet Select the utility to update...
  • Page 59 CD INSTRUCTION 2-4 Online Update - Update All This page lets you update your system drivers from Internet. Click “Start”, it will search all new BIOS/drivers/utilities from Internet. Then follow the wizard to finish the update operation. Click here Current information Search all new BIOS/ drivers/utilities from Internet Browse detailed BIOS information Browse detailed driver information Browse detailed utility information Close the window...

  • Page 60: Configure

    CD INSTRUCTION 3. Configure 3-1 Configure - option This page lets you set auto search options. After you enable the auto search function, FOX LiveUpdate will start its searching from Internet and if any qualified item found, it will pop out a message on the task bar to inform you to do the next step. Click here Set auto search options Set auto search the latest FOX LiveUpdate...
  • Page 61 CD INSTRUCTION When you enable "Auto Search FOX LiveUpdate", if your FOX LiveUpdate version is older, it will auto search from internet and prompt you to install the new version. Prompt you to install the new FOX LiveUpdate 3-2 Configure - System This page lets you set the backup BIOS location and determine if the FOX LiveUpdate can auto run when the system starts up.

  • Page 62: About & Help

    CD INSTRUCTION 3-3 Configure - Advance This page lets you select to flash BIOS / Boot Block. If you choose Flash Boot Block, it means BIOS is not protective, and you must make sure the flash process is continuous and without any interruption. Click here Select which BIOS ROM to flash(Only available to motherboard with backup BIOS ROM ) Select to flash Boot Block Apply the changes Reset to default value We recommend that you had better keep the default setting unchanged to avoid any damage.

  • Page 63: Fox Logo

    CD INSTRUCTION 4-4 fOX LOGO FOX LOGO is a simple and useful utility to backup, change and delete the boot time Logo. The boot Logo is the image that appears on screen during POST (Power-On Self-Test). You can prepare a JPG image (1024x768) file, then use FOX LOGO to open it and change the boot time Logo. Boot time Logo will be displayed if you enable the BIOS "Quiet Boot" setting in "Advanced BIOS Features" menu. Supporting Operating Systems : ■ Windows 7 (32-bit and 64-bit) ■ Windows 8 (32-bit and 64-bit) Main screen...

  • Page 64: Fox Dmi

    CD INSTRUCTION 4-5 fOX DMI FOX DMI is a full Desktop Management Interface viewer, and it provides three DMI data formats: Report, Data Fields and Memory Dump. With DMI information, system maker can easily analyze and troubleshoot your motherboard if there is any problem occurred.
