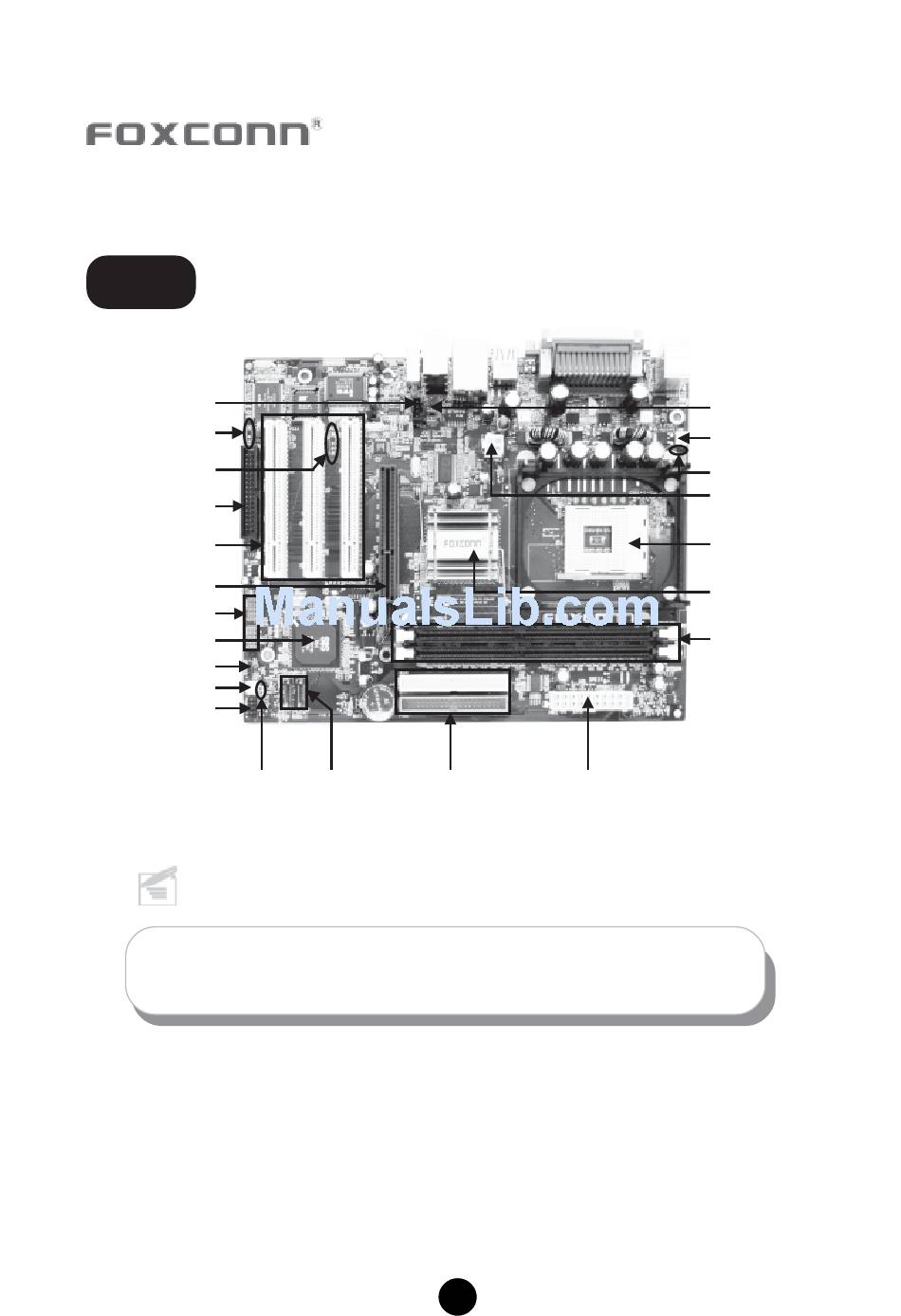

Layout
CD_IN Connector
S/PDIF OUT
Connector (optional)
IrDA Header
(optional)
FDD Connector
PCI Expansion Slots
8X AGP Slot
USB headers
SiS 964 Chipset
Speaker Connector
System FAN Connector
Front Panel Connector
Clear CMOS
Jumper
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
661FXME
Easy Installation Guide
S-ATA
ATA 66/100/133
Connectors
IDE Connectors
1
Front Audio Connector
CPU FAN Connector
CPU Model Selection
Jumper
12V ATX Power
Connector
478-pin CPU Socket
SiS 6 6 1 F X Chipset
184-pin DIMM Slots
ATX Power
Connector
P/N: 91-185-U61-M4-0E

Advertisement

Table of Contents
loading

Related Manuals for Foxconn 661FXME

Summary of Contents for Foxconn 661FXME

  • Page 1 661FXME Easy Installation Guide Layout CD_IN Connector Front Audio Connector S/PDIF OUT CPU FAN Connector Connector (optional) IrDA Header CPU Model Selection Jumper (optional) 12V ATX Power FDD Connector Connector PCI Expansion Slots 478-pin CPU Socket 8X AGP Slot SiS 6 6 1 F X Chipset...

  • Page 2: Rear Panel

    Rear Panel Parallel Port LAN Connector (Printer Port) Line-in jack PS/2 Mouse Connector Line-out jack PS/2 Keyboard Microphone Connector jack Serial Port USB 2.0 Port x4 1394 Port VGA Connector (COM1) PS/2 Mouse Connector This green 6-pin connector is for a PS/2 mouse. PS/2 Keyboard Connector This purple 6-pin connector is for a PS/2 keyboard.

  • Page 3: Accessory Checklist

    Accessory Checklist Thank for your purchasing Foxconn’s 661FXME series motherboard. Please care- fully check the package; if there are any missing or damaged items, contact your distributor as soon as possible. 661FXME motherboard (x1) Foxconn Utility CD (x1) Easy Installation Guide (x1)

  • Page 4: Front Panel Connector: Fp1

    1. Clear CMOS Jumper: CLS_CMOS Normal You can clear CMOS to restore default system (default) setting. To clear the CMOS, follow the procedures described below. 1. Turn off the AC power and connect pin 1 and 2 together using the jumper cap. Clear CMOS 2.

  • Page 5: Serial Ata Connector: Sata1, Sata2

    5. Serial ATA Connector: SATA1, SATA2 The serial ATA connector is used to connect the Serial ATA device to the motherboard. These connectors support the thin Serial ATA cable for primary internal storage devices. The current Serial ATA interface allows up to 150MB/s data S A T A 1 / S A T A 2 transfer rate.

  • Page 6: Speaker Connector: Speaker

    8. Speaker Connector: SPEAKER Empty The speaker connector is used to connect the speaker of the chassis. SPKJ SPEAKER 9. USB Headers: F_USB1, F_USB2 Besides four USB ports on the rear panel, the series of motherboard also have two 10-pin head- ers on board which may connect to front panel Empty USB cable to provide four additional USB ports.
  • Page 7 11. IrDA Header (optional): IR Empty IRRX This header supports wireless transmitting and receiving devices. Before using this function, IRTX Configure the settings of IR mode from the “In- tegrated Peripherals” section of the CMOS Setup Utility. 12. 5.1 Channel Audio Effects The motherboard is equipped with the CODEC ALC655 chip, which provides support for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer channel.
  • Page 8 Please make sure your system components are good enough for optimized defaults. Select this option and press <Enter>. 14. Foxconn Utility CD This motherboard comes with one Utility CD. To begin using the CD, simply insert the CD disc into the CD-ROM drive. The CD will automatically bring up the main menu screen.
